Projekt nové centrály laboratoří DICEA na Florentské univerzitě

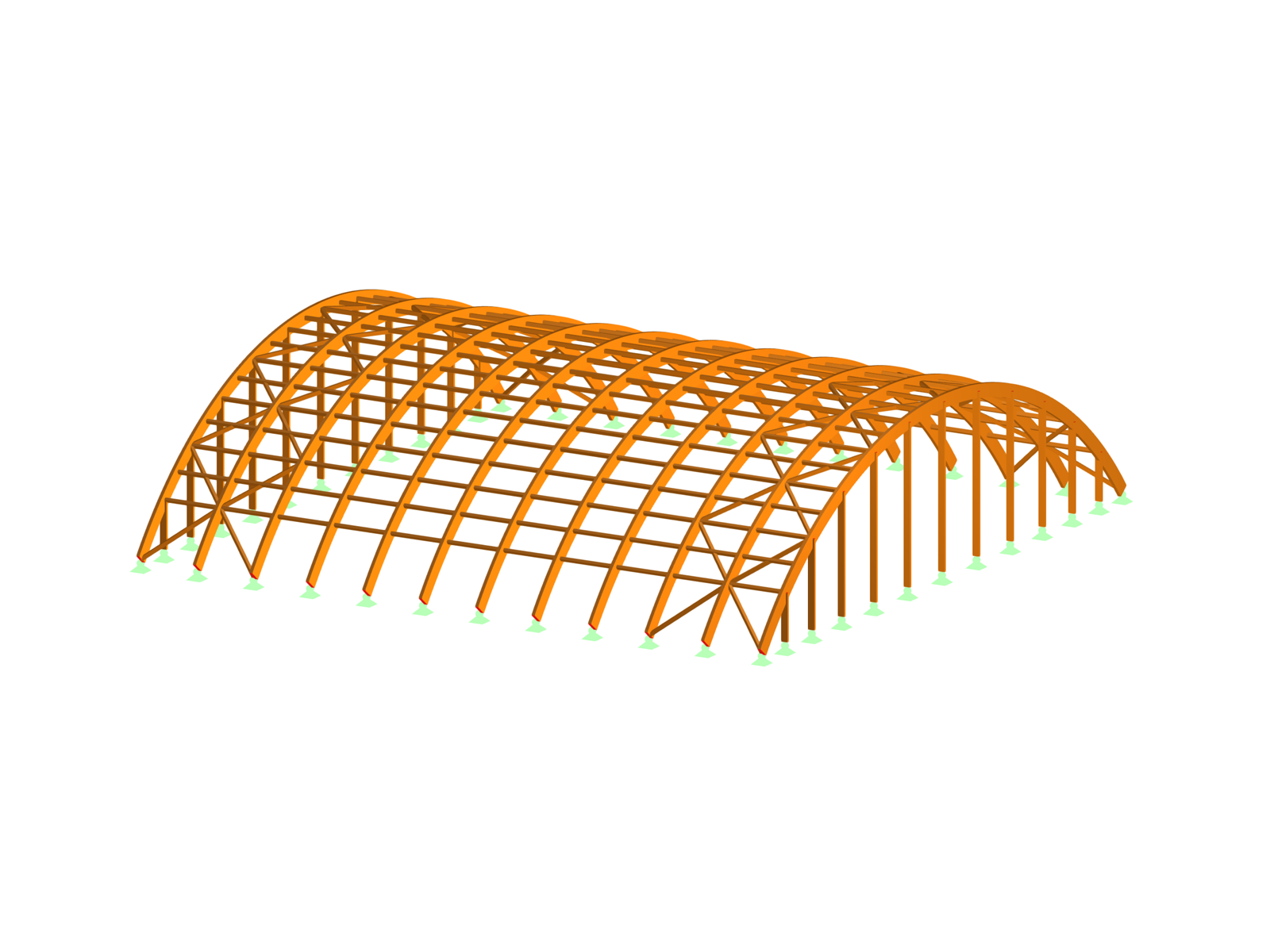

Model 005634 | Vrstvené dřevěné klenuté střešní rozpětí nosníku 47 metrů pro laboratoře Florentské univerzity.
The image displays the architectural and structural design of a new facility for the DICEA laboratories at the University of Florence. The standout feature is the laminated wood arched roof, which covers 47 meters in a single span. This design accommodates a large tank for maritime engineering simulations. The study focused on the material characteristics of wood, specifically its hygroscopic and viscous behaviors, and the mechanical joints’ deformability.
3D model
Nelze stáhnout
Projekt zákazníka / Pouze pro zobrazení
Více o 3D modelu
Specifikace
| Počet uzlů | 375 |
| Počet linií | 589 |
| Počet prutů | 589 |
| Počet ploch | 0 |
| Počet těles | 0 |
| Počet zatěžovacích stavů | 13 |
| Počet kombinací zatížení | 71 |
| Počet kombinací výsledků | 5 |
| Celková hmotnost | 92,660 t |
| Rozměry (metrické) | 46,750 x 29,761 x 47,000 m |
| Rozměry (imperiální) | 153.38 x 97.64 x 154.2 feet |
