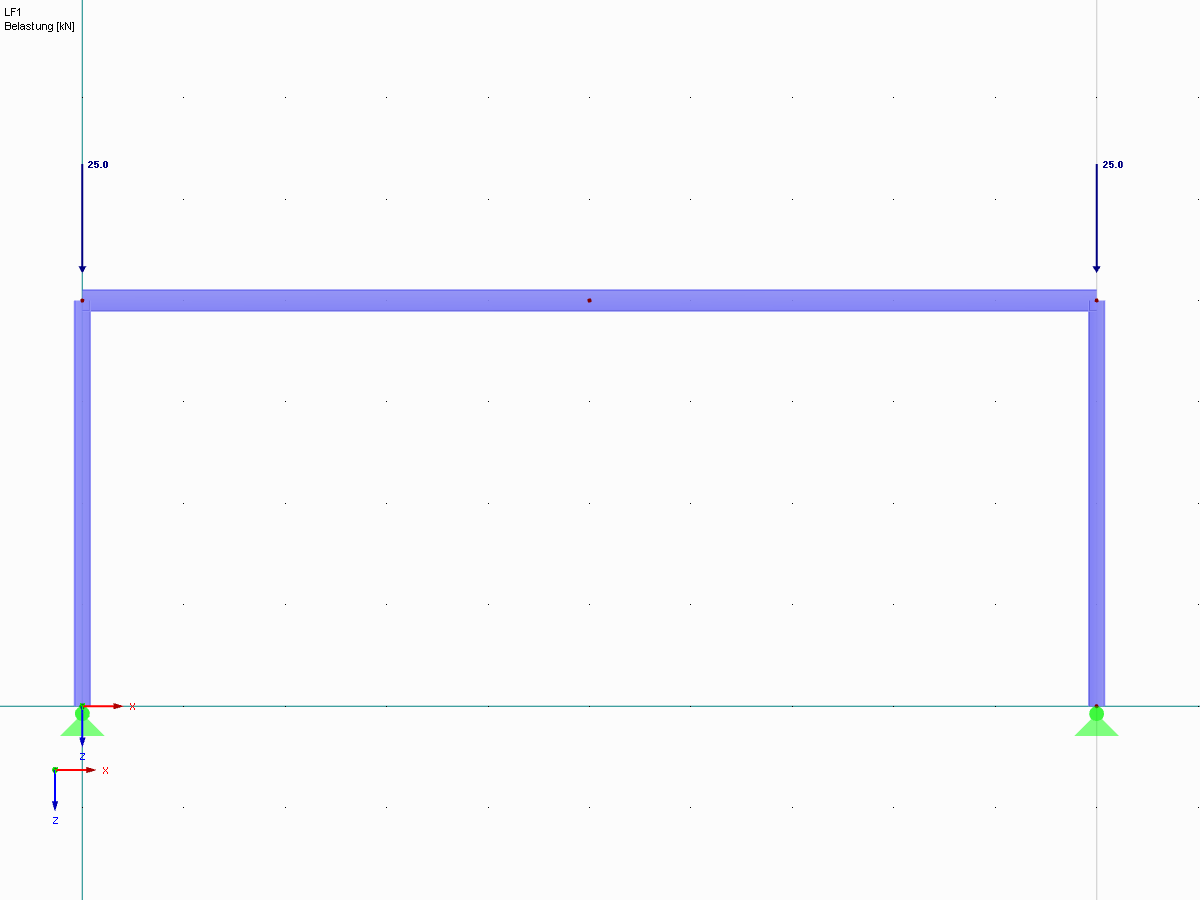

2D-Rahmen mit Knotenkräften
2D-Rahmen
Verwendet in

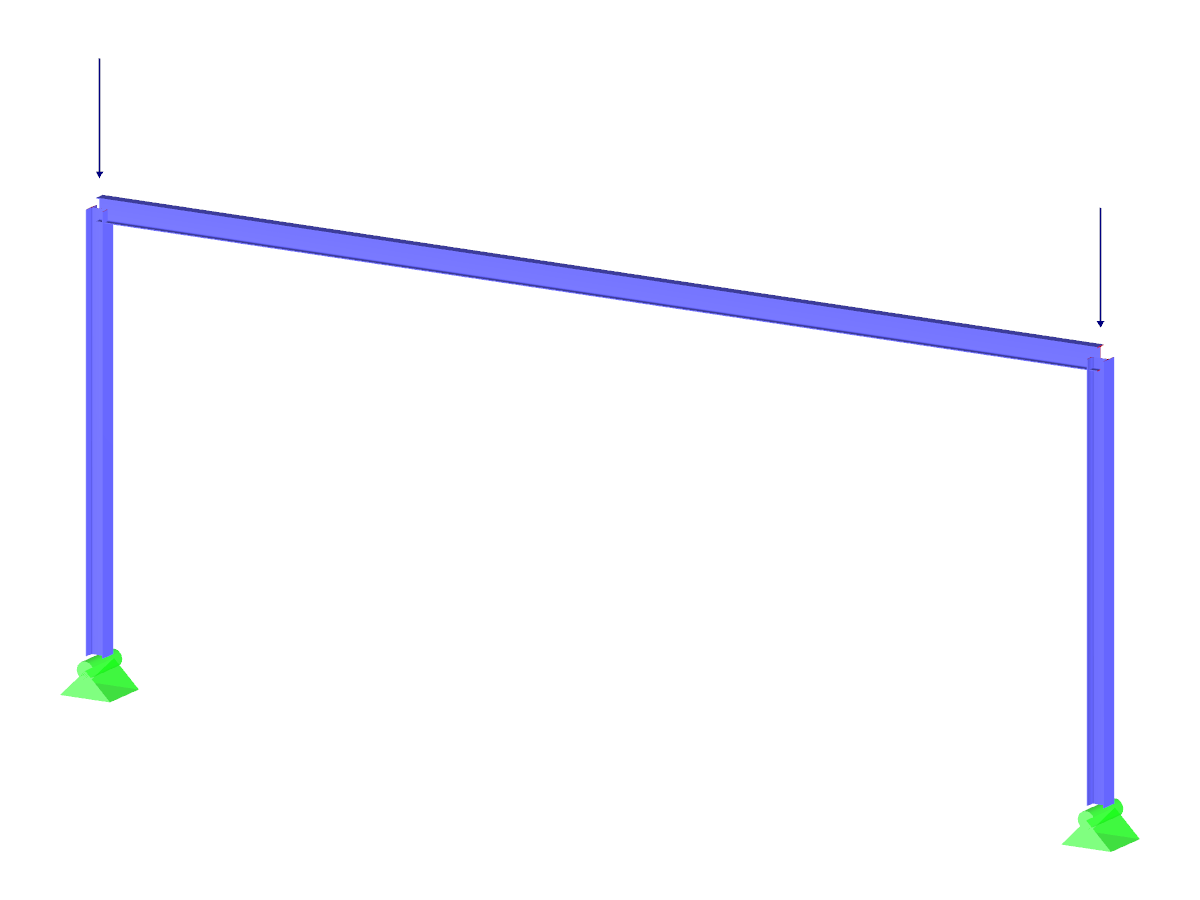

3D-Modell
Spezifikationen
| Anzahl Knoten | 5 |
| Anzahl Linien | 4 |
| Anzahl Stäbe | 4 |
| Anzahl Flächen | 0 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 1 |
| Anzahl Lastkombinationen | 0 |
| Anzahl Ergebniskombinationen | 0 |
| Gesamtgewicht | 0.546 t |
| Abmessungen (metrisch) | 10.000 x 4.000 x 0.000 m |
| Abmessungen (imperial) | 32.81 x 13.12 x 0 feet |
