9. März 2024
021106

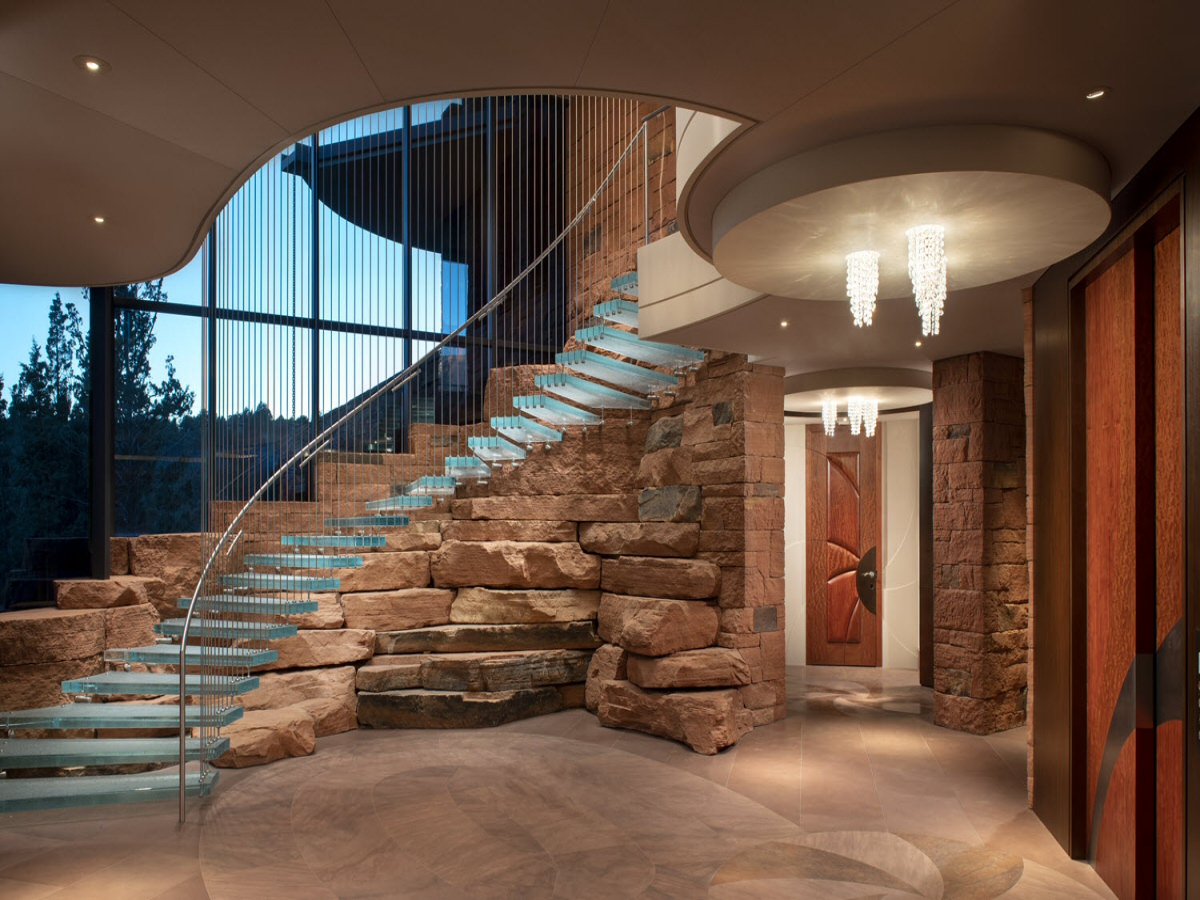

Abgehängte Glastreppe im Wohnhaus Moongate in Sedona, Arizona, USA (© SWABACK pllc)
9. März 2024
026185
Mauerwerkgebäude
Verwendet in
3D-Modell
Spezifikationen
Anzahl Knoten | 501 |
Anzahl Linien | 646 |
Anzahl Stäbe | 77 |
Anzahl Flächen | 103 |
Anzahl Volumenkörper | 0 |
Anzahl Lastfälle | 5 |
Anzahl Lastkombinationen | 32 |
Anzahl Ergebniskombinationen | 0 |
Gesamtgewicht | 1412,109 t |
Abmessungen | 18,600 x 15,500 x 14,000 m |
9. März 2024
025608
Garage
Verwendet in
3D-Modell
Spezifikationen
Anzahl Knoten | 41 |
Anzahl Linien | 49 |
Anzahl Stäbe | 12 |
Anzahl Flächen | 6 |
Anzahl Volumenkörper | 0 |
Anzahl Lastfälle | 2 |
Anzahl Lastkombinationen | 4 |
Anzahl Ergebniskombinationen | 0 |
Gesamtgewicht | 113,211 t |
Abmessungen | 9,500 x 3,500 x 7,000 m |
9. März 2024
025010
Mauerwerkswand mit veränderlichem Winkel und Öffnungen
3D-Modell
Spezifikationen
Blockparameter dynamisch editierbar | |
Anzahl Knoten | 20 |
Anzahl Linien | 28 |
Anzahl Stäbe | 22 |
Anzahl Flächen | 7 |
Gesamtgewicht | 12,167 t |
Abmessungen | 6,100 x 7,100 x 3,306 m |
Programmversion | 5.26.02 |
9. März 2024
025005

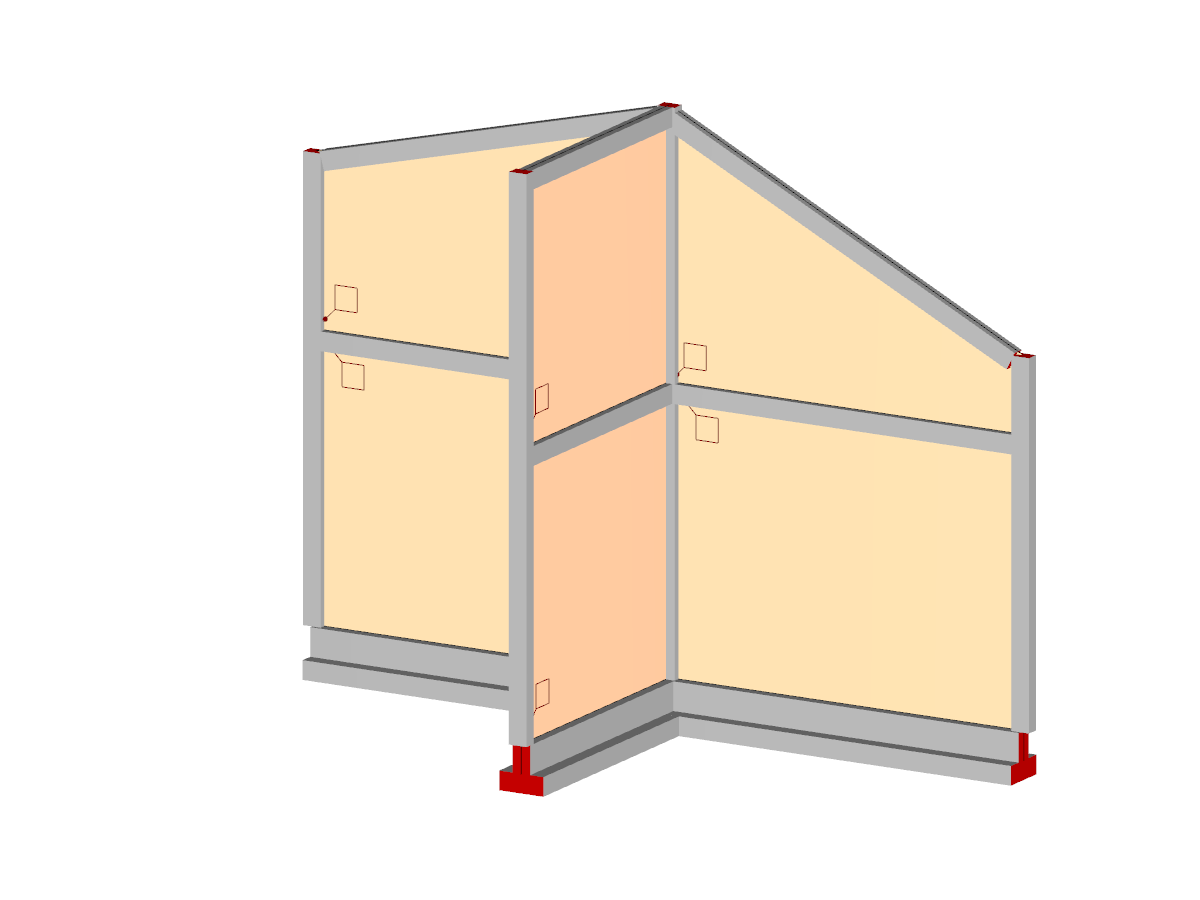

Abgeschrägte Mauerwerkswand
Verwendet in
3D-Modell
Spezifikationen
Blockparameter dynamisch editierbar | |
Anzahl Knoten | 12 |
Anzahl Linien | 17 |
Anzahl Stäbe | 17 |
Anzahl Flächen | 6 |
Gesamtgewicht | 14,009 t |
Abmessungen | 8,000 x 2,900 x 6,106 m |
Programmversion | 5.25.01 |
