Ergebnisauswertung | Ausdruckprotokoll, Aluminiumhalle
RSTAB 9 Ergebnisauswertung | Ausdruckprotokoll der Simulation einer Aluminiumkonstruktion in einer Halle

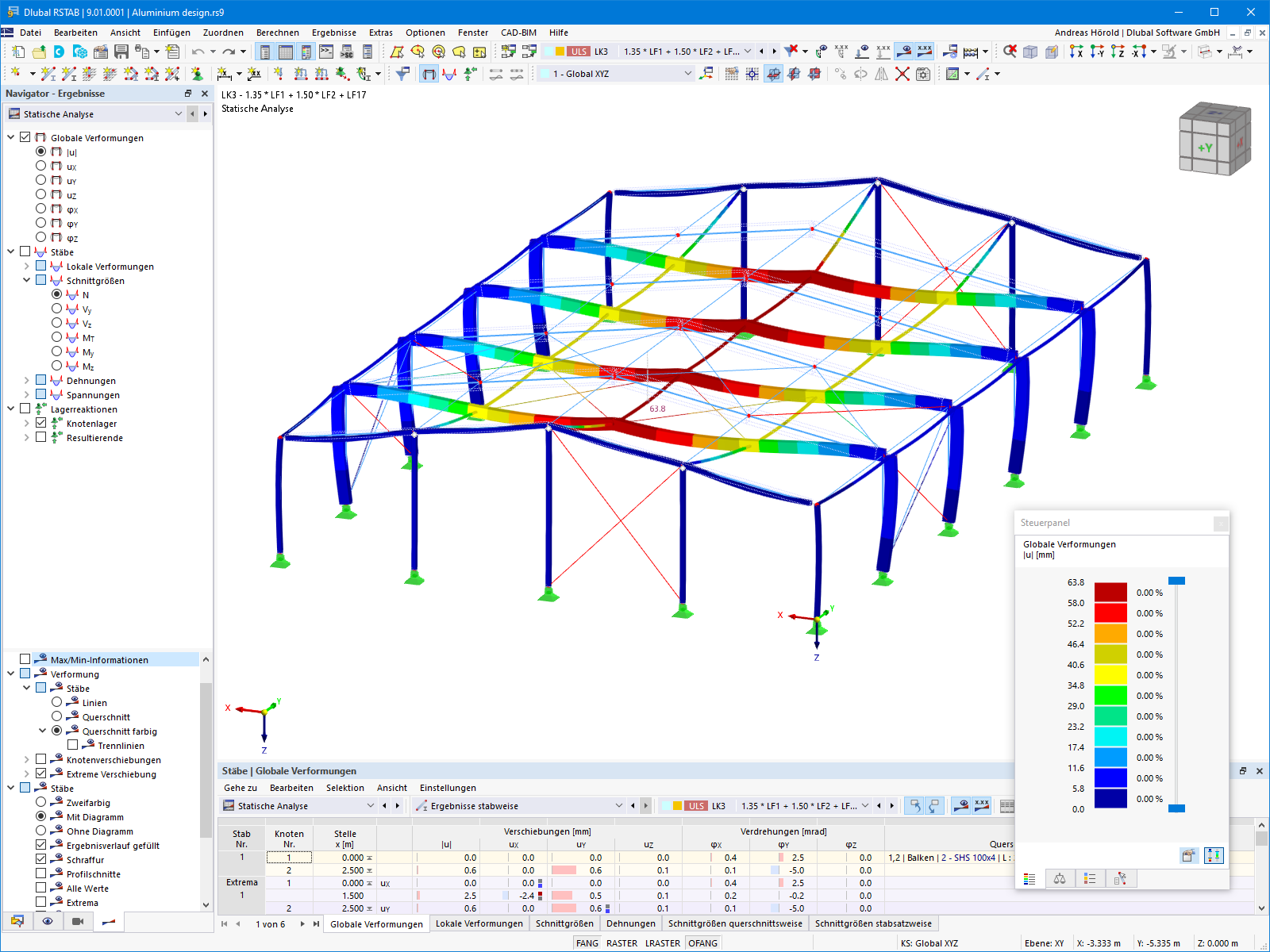

Das Bild zeigt einen Ausdruckprotokoll mit Simulationsergebnissen einer Aluminiumkonstruktion in einer Halle. Die Visualisierung umfasst technische Kennzahlen sowie grafische Darstellungen, die den Analyseprozess einer Computermodelierung präzise widerspiegeln.
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 56 |
| Anzahl Linien | 91 |
| Anzahl Stäbe | 91 |
| Anzahl Lastfälle | 10 |
| Anzahl Lastkombinationen | 22 |
| Anzahl Ergebniskombinationen | 2 |
| Gesamtgewicht | 15,101 t |
| Abmessungen (metrisch) | 20.500 x 25.500 x 7.250 m |
| Abmessungen (imperial) | 67.26 x 83.66 x 23.79 feet |
| Programmversion | 5.04.00 |
