9. März 2024
026797

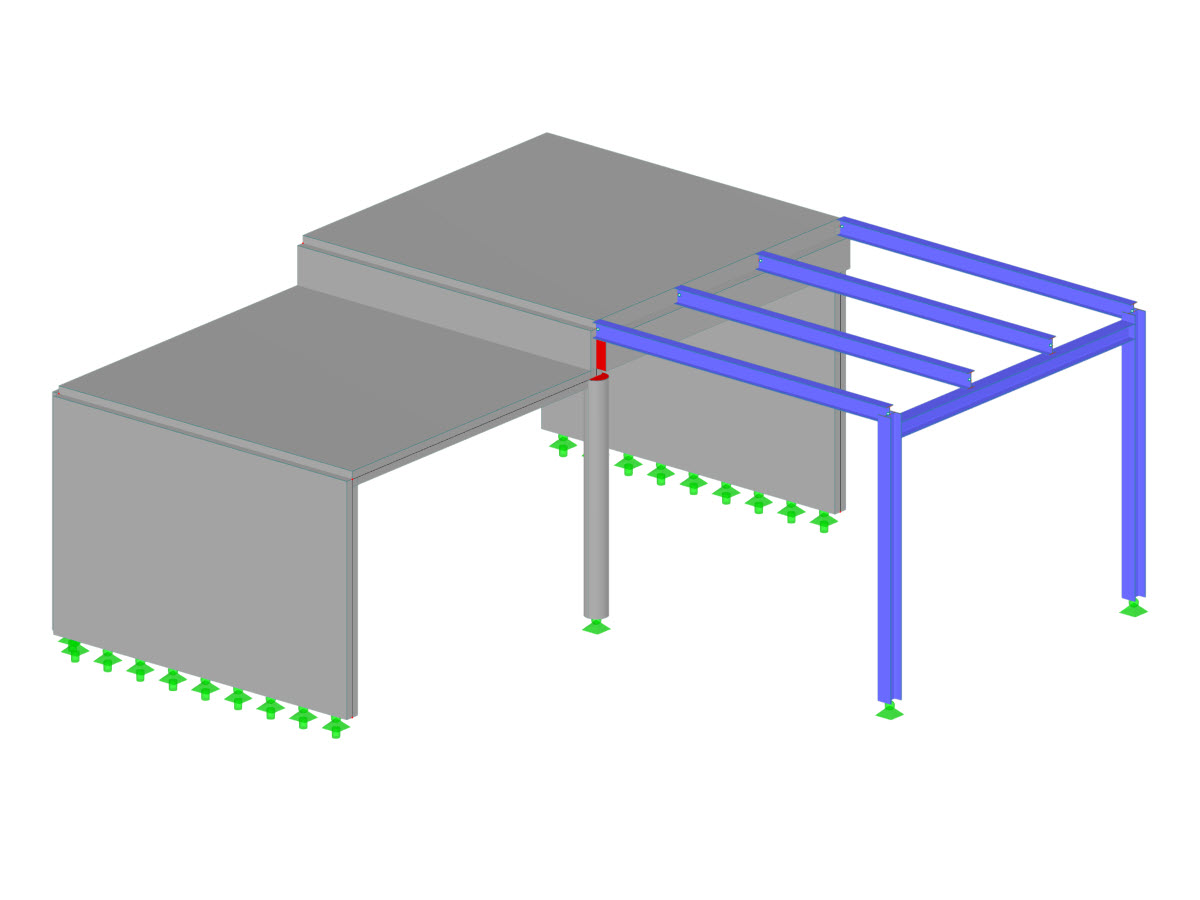

Betonkonstruktion mit angeschlossener Stahlplattform
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 22 |
| Anzahl Linien | 26 |
| Anzahl Stäbe | 9 |
| Anzahl Flächen | 6 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 4 |
| Anzahl Lastkombinationen | 8 |
| Anzahl Ergebniskombinationen | 0 |
| Gesamtgewicht | 44,650 t |
| Abmessungen (metrisch) | 9,144 x 3,658 x 9,144 m |
| Abmessungen (imperial) | 30 x 12 x 30 feet |
8. August 2024
027656

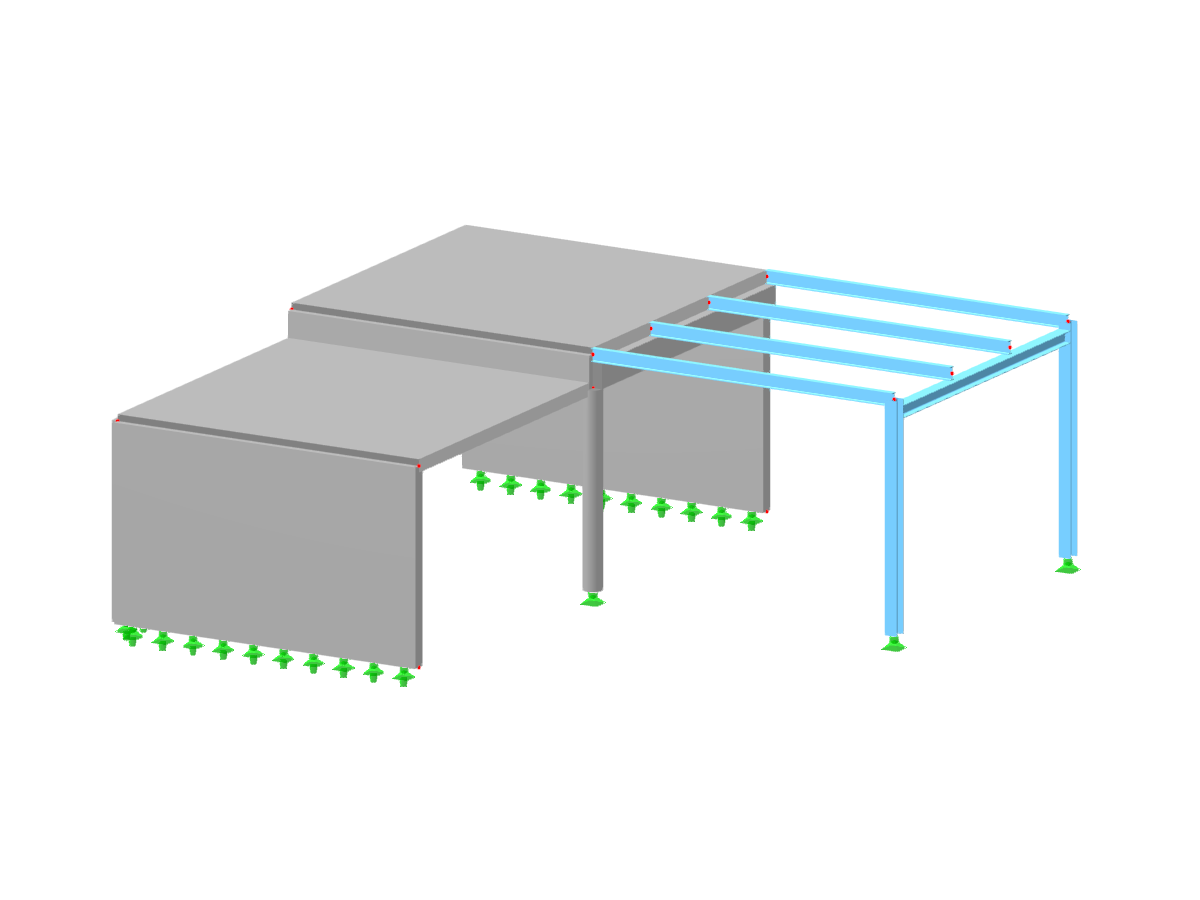

US-Modell des Einführungsbeispiels
3D-Modell
Spezifikationen
| Anzahl Knoten | 22 |
| Anzahl Linien | 26 |
| Anzahl Stäbe | 9 |
| Anzahl Flächen | 6 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 4 |
| Anzahl Lastkombinationen | 8 |
| Anzahl Ergebniskombinationen | 0 |
| Gesamtgewicht | 44,650 t |
| Abmessungen (metrisch) | 9,144 x 3,658 x 9,144 m |
| Abmessungen (imperial) | 30 x 12 x 30 feet |
