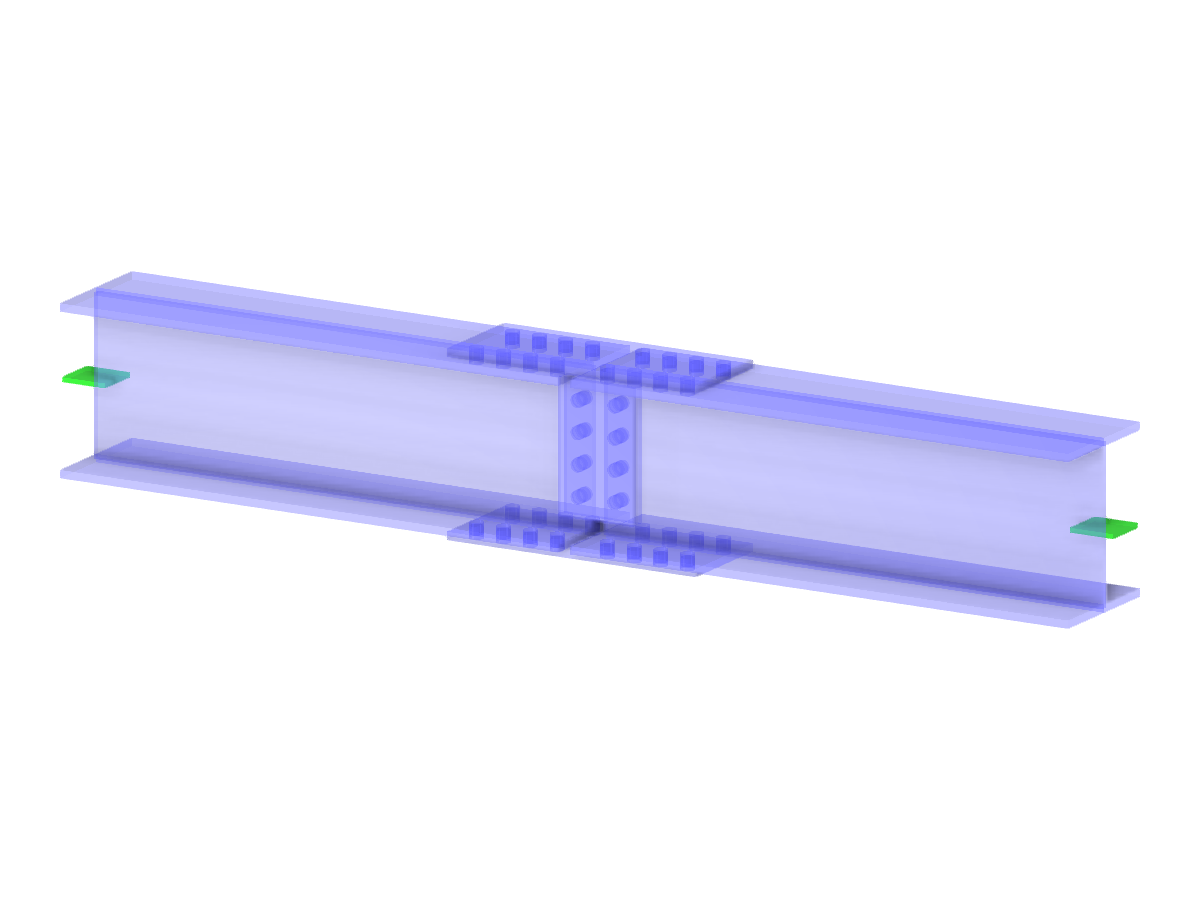

Modell 004194 | I-Profil-Verbindung mit Bewehrung
Verwendet in
3D-Modell
Spezifikationen
| Blockparameter dynamisch editierbar | |
| Anzahl Knoten | 218 |
| Anzahl Linien | 188 |
| Anzahl Stäbe | 48 |
| Anzahl Flächen | 96 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 2 |
| Anzahl Lastkombinationen | 5 |
| Anzahl Ergebniskombinationen | 0 |
| Gesamtgewicht | 1,665 t |
| Abmessungen (metrisch) | 4,050 x 0,660 x 0,500 m |
| Abmessungen (imperial) | 13.29 x 2.17 x 1.64 feet |
