Steel Tower with Integrated Staircase: Model 005534
Steel tower with integrated staircase, detailed steel joints and robust foundation.

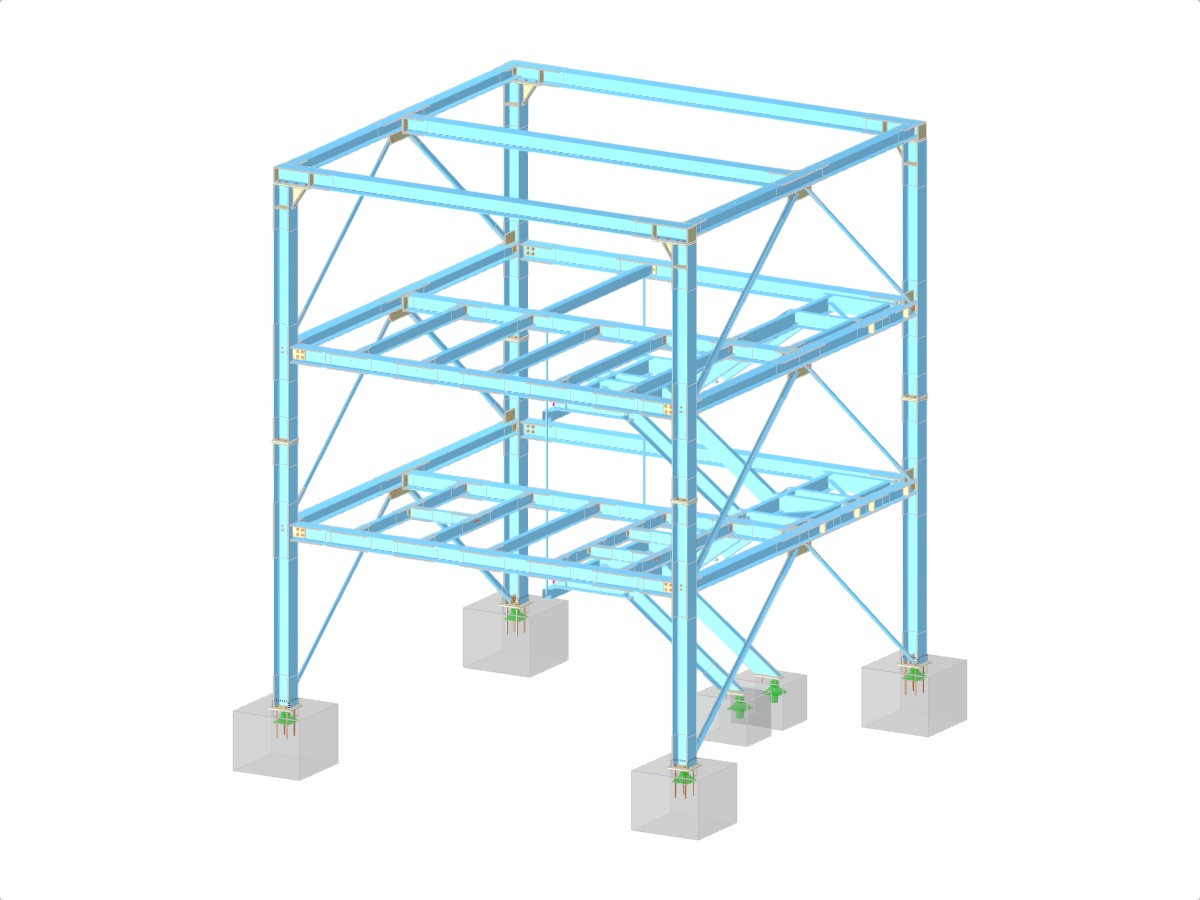

The image depicts Model 005534, a steel tower featuring an integrated staircase. The structure reveals precise steel joints and a robust foundation system. The staircase is incorporated into the vertical assembly to allow inter-level access. The design highlights modern techniques in steel construction.
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 129 |
| Anzahl Linien | 205 |
| Anzahl Stäbe | 205 |
| Anzahl Flächen | 0 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 15 |
| Anzahl Lastkombinationen | 26 |
| Anzahl Ergebniskombinationen | 1 |
| Gesamtgewicht | 8,226 t |
| Abmessungen (metrisch) | 6,000 x 7,200 x 6,000 m |
| Abmessungen (imperial) | 19.69 x 23.62 x 19.69 feet |
