30. Juni 2025
057584
RFEM-Modell des Glockenturmes von Bleibach

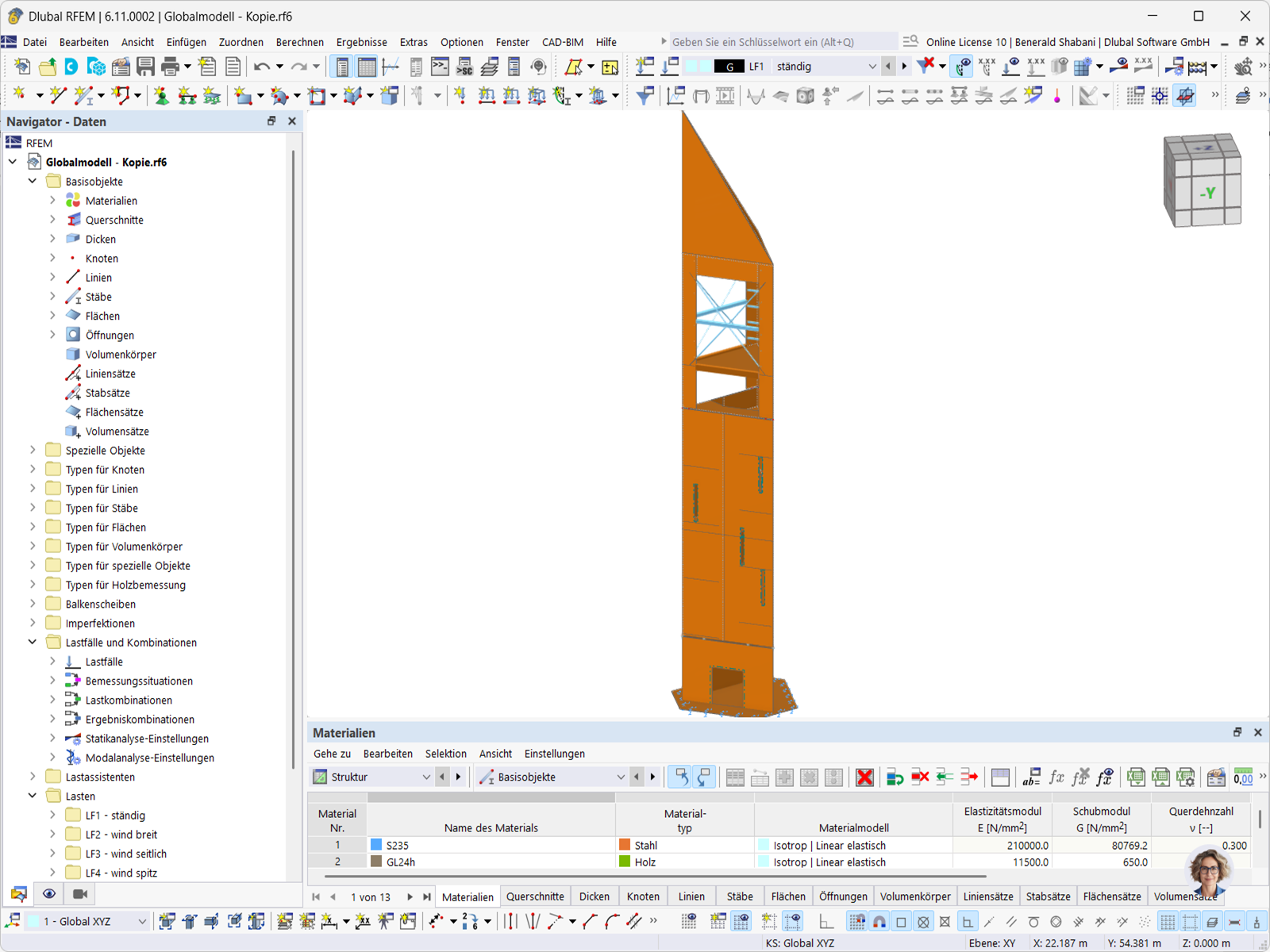

RFEM-6 Modell eines Glockenturms aus Holz, entworfen vom Ingenieurbüro Wirth Haker.
Das Bild zeigt ein mit RFEM-6 erstelltes Modell eines Glockenturms aus Holz, das vom Ingenieurbüro Wirth Haker entworfen wurde. Der Turm besteht aus einer komplexen Holzkonstruktion, die in einer Statik-Software modelliert wurde. Foto von © Ingenieurbüro Wirth Haker.
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 339 |
| Anzahl Linien | 396 |
| Anzahl Stäbe | 60 |
| Anzahl Flächen | 43 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 4 |
| Anzahl Lastkombinationen | 9 |
| Anzahl Ergebniskombinationen | 2 |
| Gesamtgewicht | 138.376 t |
| Abmessungen (metrisch) | 7.067 x 35.931 x 8.160 m |
| Abmessungen (imperial) | 23.19 x 117.88 x 26.77 feet |
