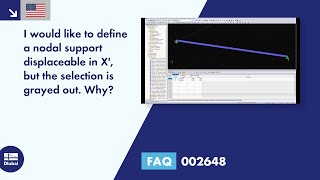

I would like to define a displaceable nodal support displaceable in X ', but the selection is greyed out. What is the reason for this?

Answer

If you can not freely select all directions of the nodal support, you should check whether you have selected the 3D model type in the general data. In a 2D surface, certain directions of the support are blocked.

Keywords

Nodal support Direction 3D
