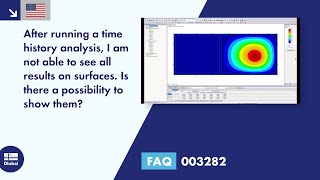

After running a time history analysis, I'm not able to see all results on surfaces. Is there a possibility to show them?

Answer

In the results of the module RF-/DYNAM Pro only "Basic Internal Forces" and "Basic Stresses" on surfaces are provided. But with the option to export the results in a result combination, you have the possibility to display all results after a time history analysis.


Simply use the option to create a result combination in the add-on module as shown in Figure 1 and show the results of this in the graphic. All results, such as "Design Internal Forces" or "Stresses" are available.

Keywords

Results Time history Surface Stress Result combination
