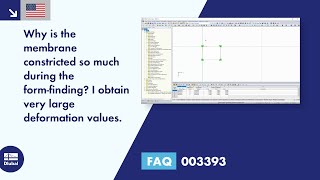

Why does the membrane become so tight during Form-Finding? I get very large deformation values.

Answer

The cause of such an effect could be free edges, which can deform almost infinitely during Form-Finding. A state of equilibrium is difficult to achieve.

As a basis for Form-Finding, there should be no free edges on the membrane surface. Ropes must be arranged on the free edges of the membrane whose stiffness can be based, for example, on the folded or reinforced edge strips of the membrane.

Keywords

Membrane Singular Jacobi matrix Convergence
