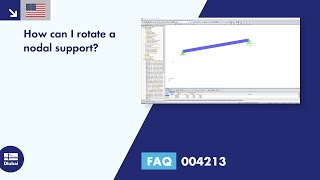

How can I rotate a nodal support?


In the dialog box 'Edit Nodal Supports', it is possible to rotate the local axis system of the support (Figure 1). First, select the sequence that controls the sequence of the local support axes X ', Y', and Z', and then specify the rotation angle about the global axes X, Y, and Z in the corresponding text boxes.

The support rotation can also be determined graphically by using the corresponding buttons in the dialog box. The rotation of the support is displayed dynamically in the dialog graphic.

After the calculation, the support reactions of rotated nodal support can be evaluated both to the global axis system and the local axis system (Figure 2).


Support rotation
