2024-08-13
007434

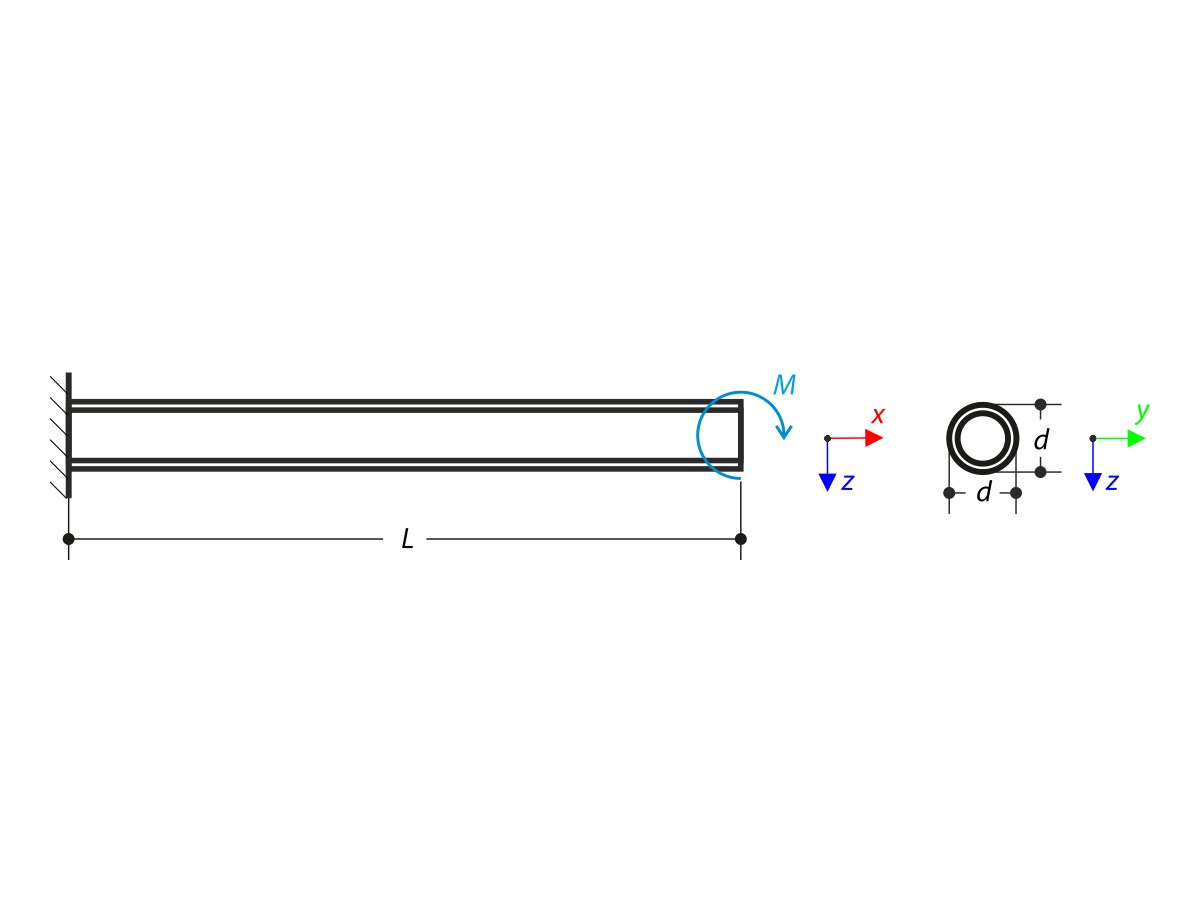

Cantilever with Moment Loading at Free End
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.015 tons |
| Dimensions (Metric) | 4.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 13.12 x 0 x 0 feet |
Verification Example 000052 | 4
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.015 tons |
| Dimensions (Metric) | 4.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 13.12 x 0 x 0 feet |
