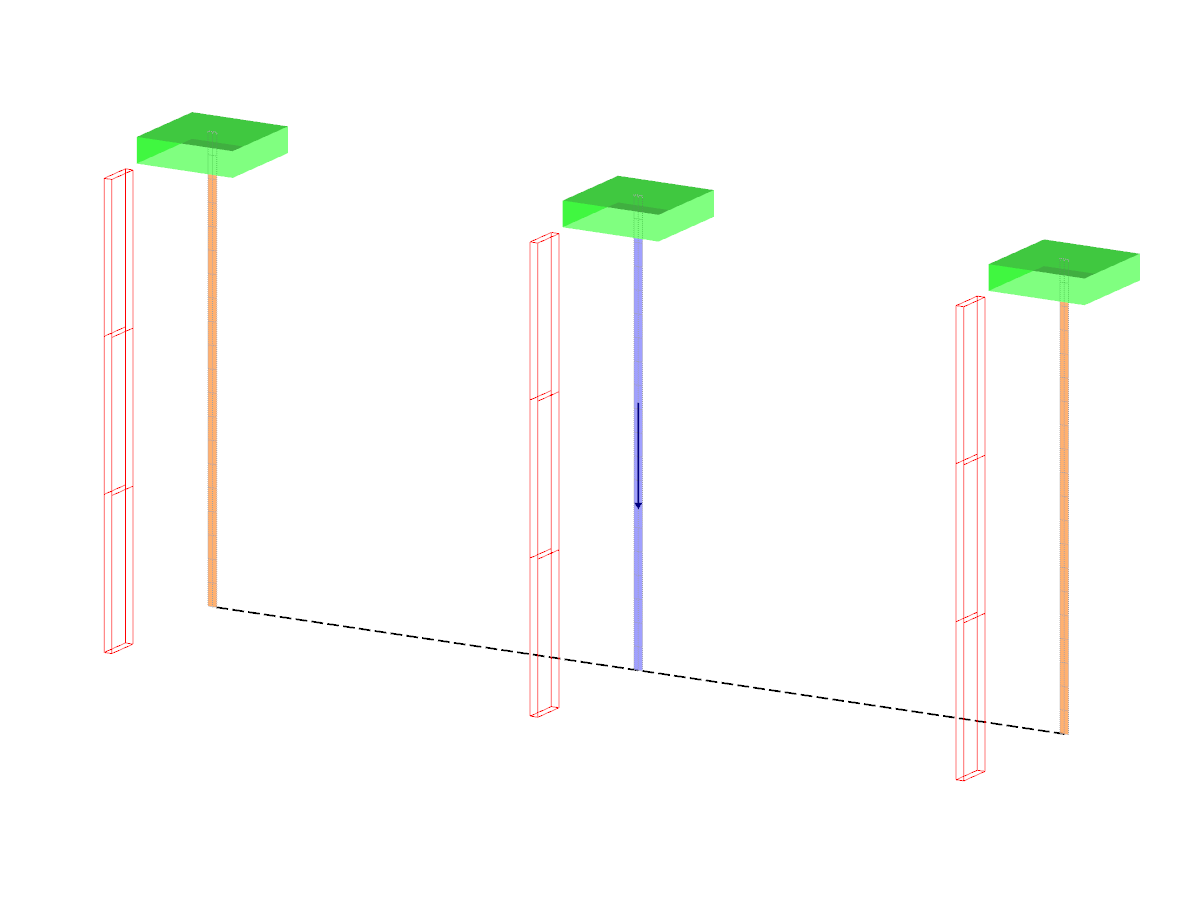

Truss Structure with Thermal Loading
Used in
3D Model
Specifications
| Number of Nodes | 18 |
| Number of Lines | 19 |
| Number of Members | 4 |
| Number of Surfaces | 3 |
| Number of Load Cases | 1 |
| Total Weight | 0.001 tons |
| Dimensions (Metric) | 1.070 x 0.070 x 0.535 m |
| Dimensions (Imperial) | 3.51 x 0.23 x 1.76 feet |
| Program Version | 5.10.01 |
