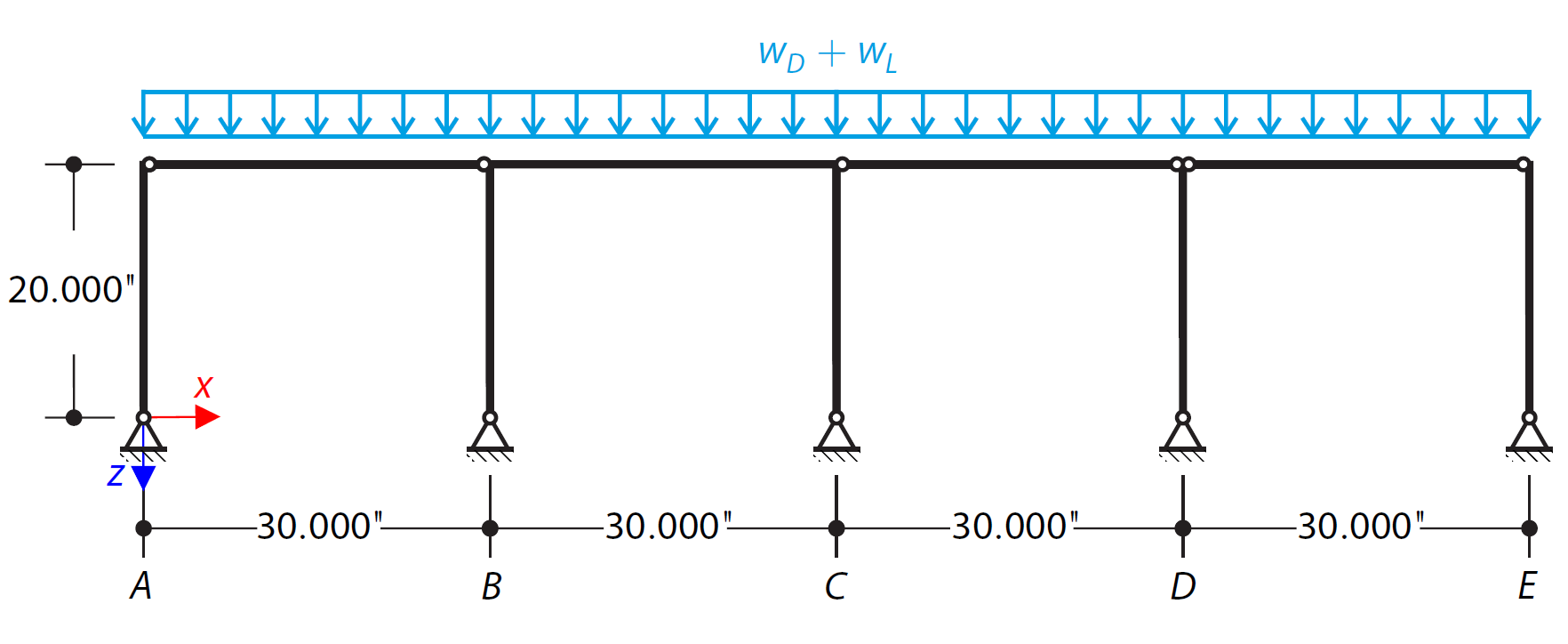

AISC C.1A - Moment Frame Design
Used in

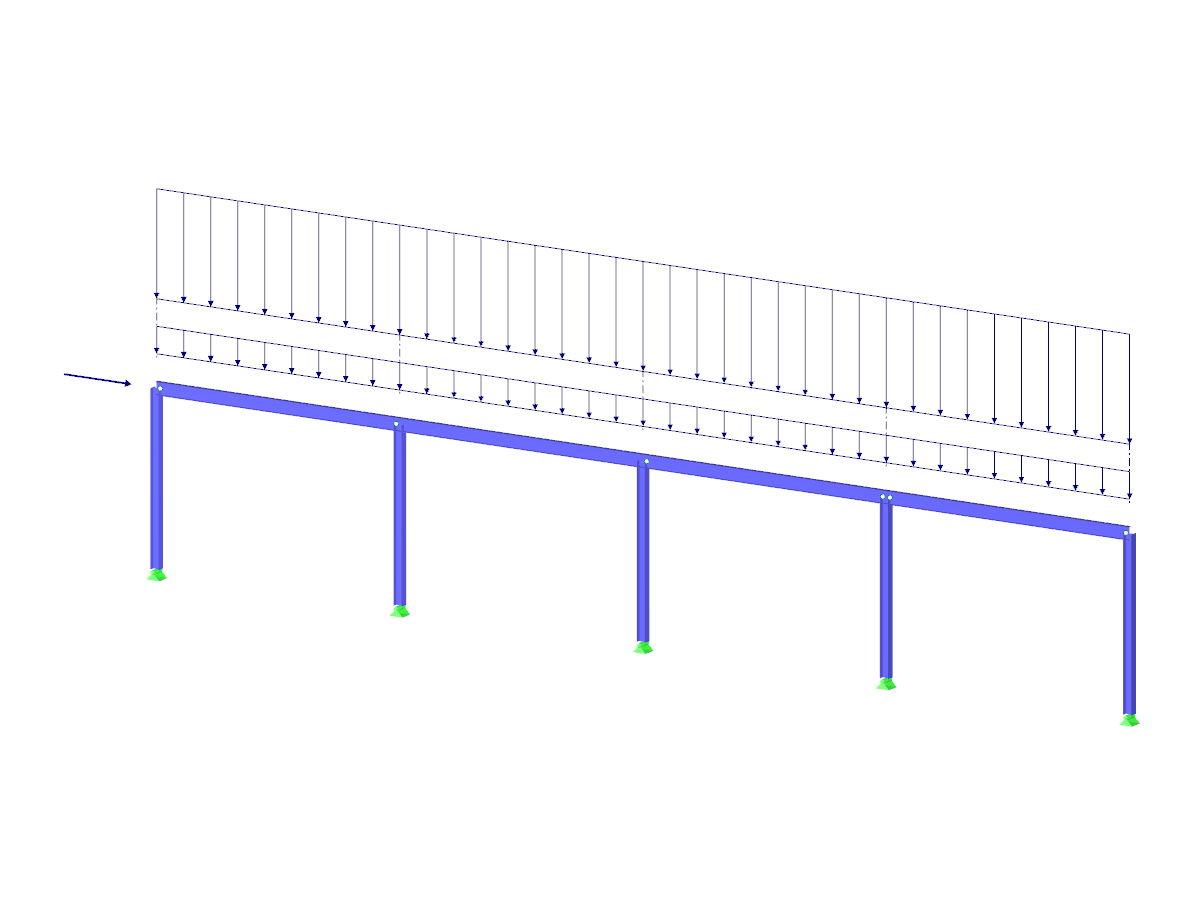

3D Model
Specifications
| Number of Nodes | 10 |
| Number of Lines | 9 |
| Number of Members | 9 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 4 |
| Total Weight | 5.134 tons |
| Dimensions (Metric) | 37.076 x 0.500 x 6.346 m |
| Dimensions (Imperial) | 121.64 x 1.64 x 20.82 feet |
| Program Version | 5.14.03 |
2020-03-31
007509
AISC C.1A – Moment Frame Design
3D Model
Specifications
| Number of Nodes | 10 |
| Number of Lines | 9 |
| Number of Members | 9 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 5.134 tons |
| Dimensions (Metric) | 36.576 x 6.096 x 0.000 m |
| Dimensions (Imperial) | 120 x 20 x 0 feet |
