Steel Structure Node as Solid Model
Used in
3D Model
Specifications
| Number of Nodes | 60 |
| Number of Lines | 28 |
| Number of Surfaces | 37 |
| Number of Solids | 9 |
| Number of Load Cases | 1 |
| Total Weight | 0,529 t |
| Dimensions (Metric) | 0.917 x 0.848 x 0.651 m |
| Dimensions (Imperial) | 3.01 x 2.78 x 2.14 feet |
| Program Version | 5.23.00 |

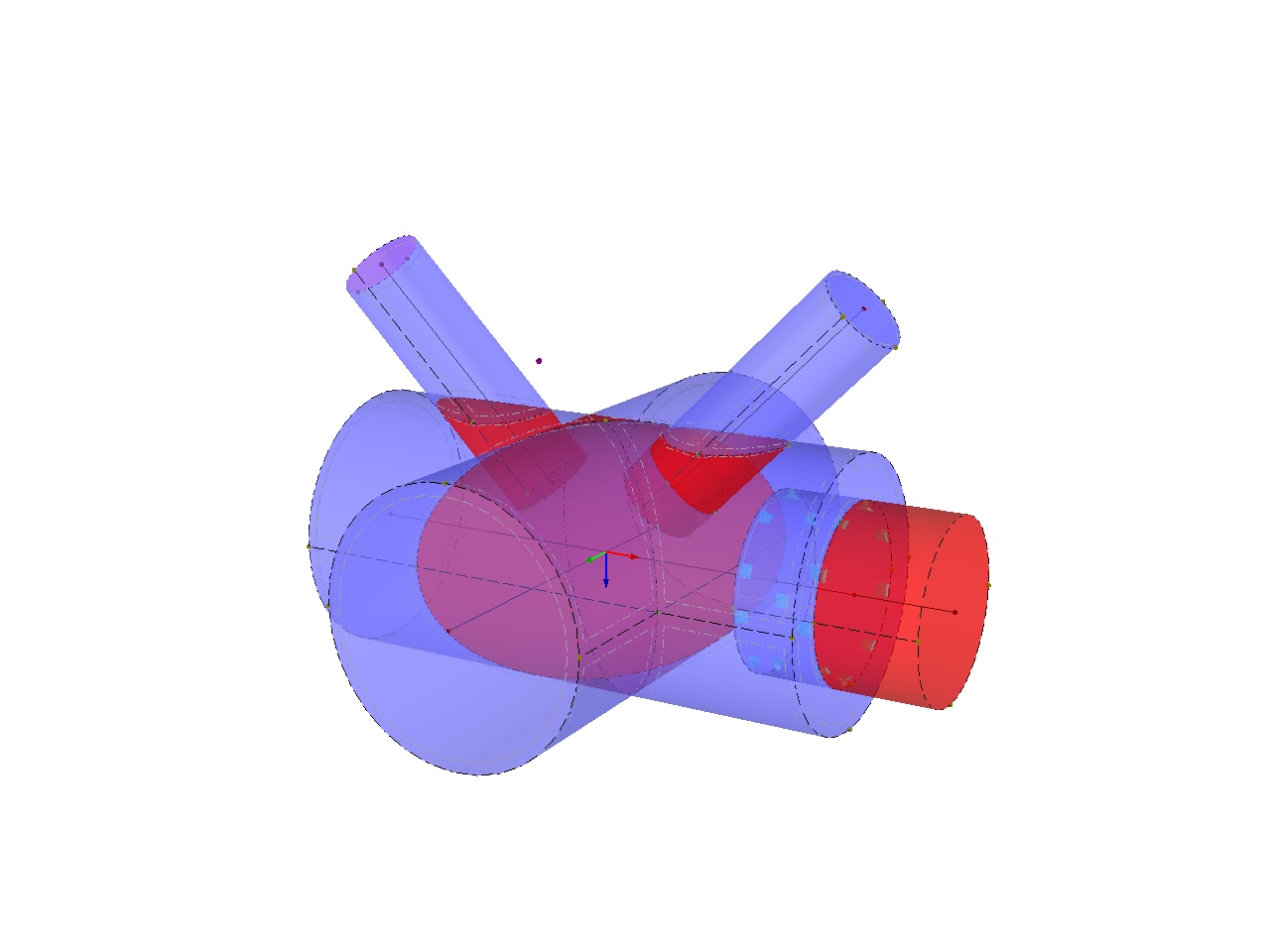

Steel Node as Solid Model
3D Model
Specifications
| Number of Nodes | 60 |
| Number of Lines | 28 |
| Number of Surfaces | 37 |
| Number of Solids | 9 |
| Number of Load Cases | 1 |
| Total Weight | 0,529 t |
| Dimensions (Metric) | 0.917 x 0.848 x 0.651 m |
| Dimensions (Imperial) | 3.01 x 2.78 x 2.14 feet |
| Program Version | 5.23.00 |
