Auxiliary Model for Determining Elastic Support
3D Model
Specifications
| Number of Nodes | 150 |
| Number of Lines | 185 |
| Number of Members | 104 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 4 |
| Dimensions (Metric) | 0.313 x 13.352 x 3.158 m |
| Dimensions (Imperial) | 1.03 x 43.81 x 10.36 feet |
| Program Version | 5.22.01 |

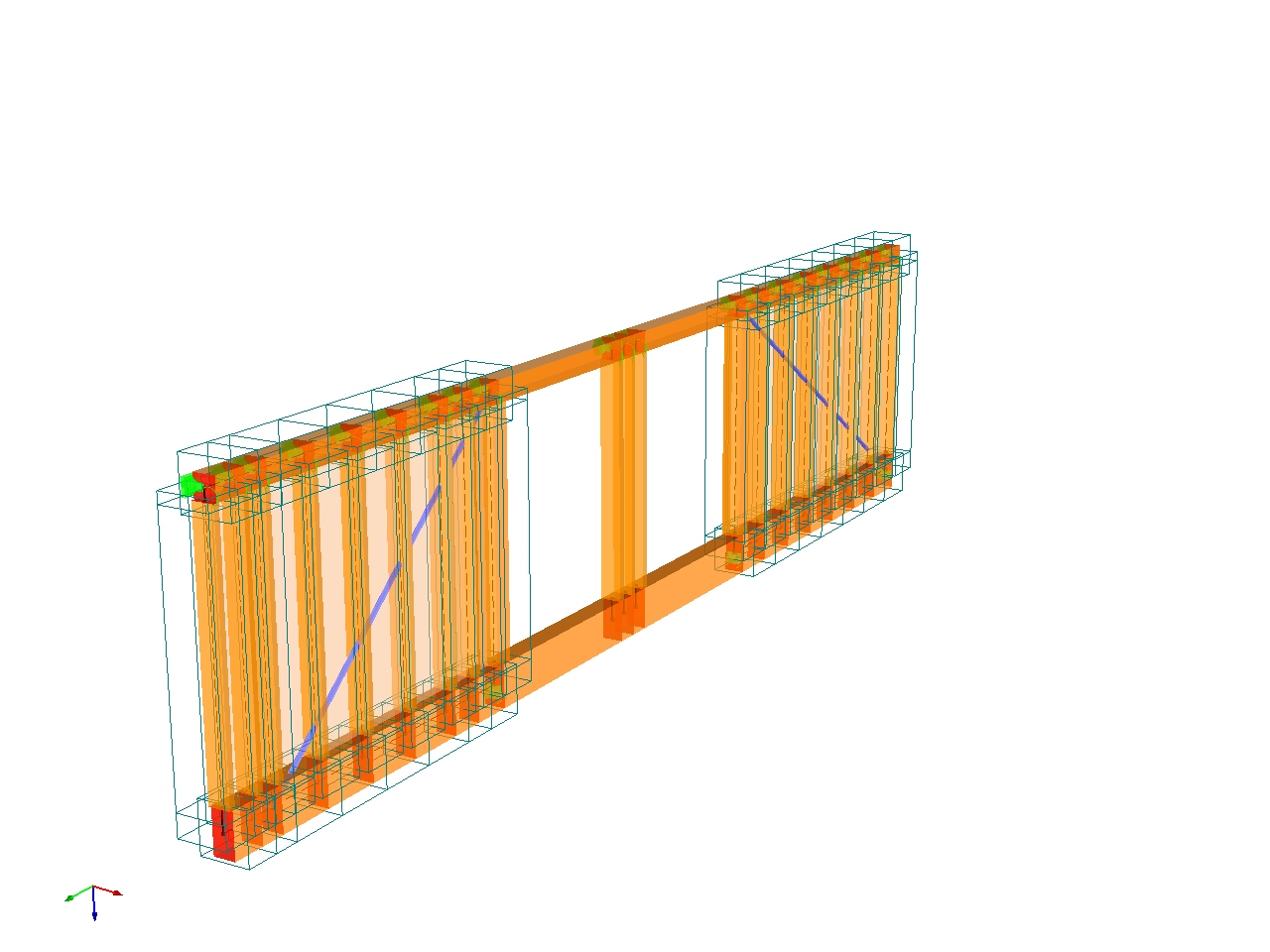

Auxiliary Model for Determining Support Spring
3D Model
Specifications
| Number of Nodes | 150 |
| Number of Lines | 185 |
| Number of Members | 104 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 4 |
| Dimensions (Metric) | 0.313 x 13.352 x 3.158 m |
| Dimensions (Imperial) | 1.03 x 43.81 x 10.36 feet |
| Program Version | 5.22.01 |
