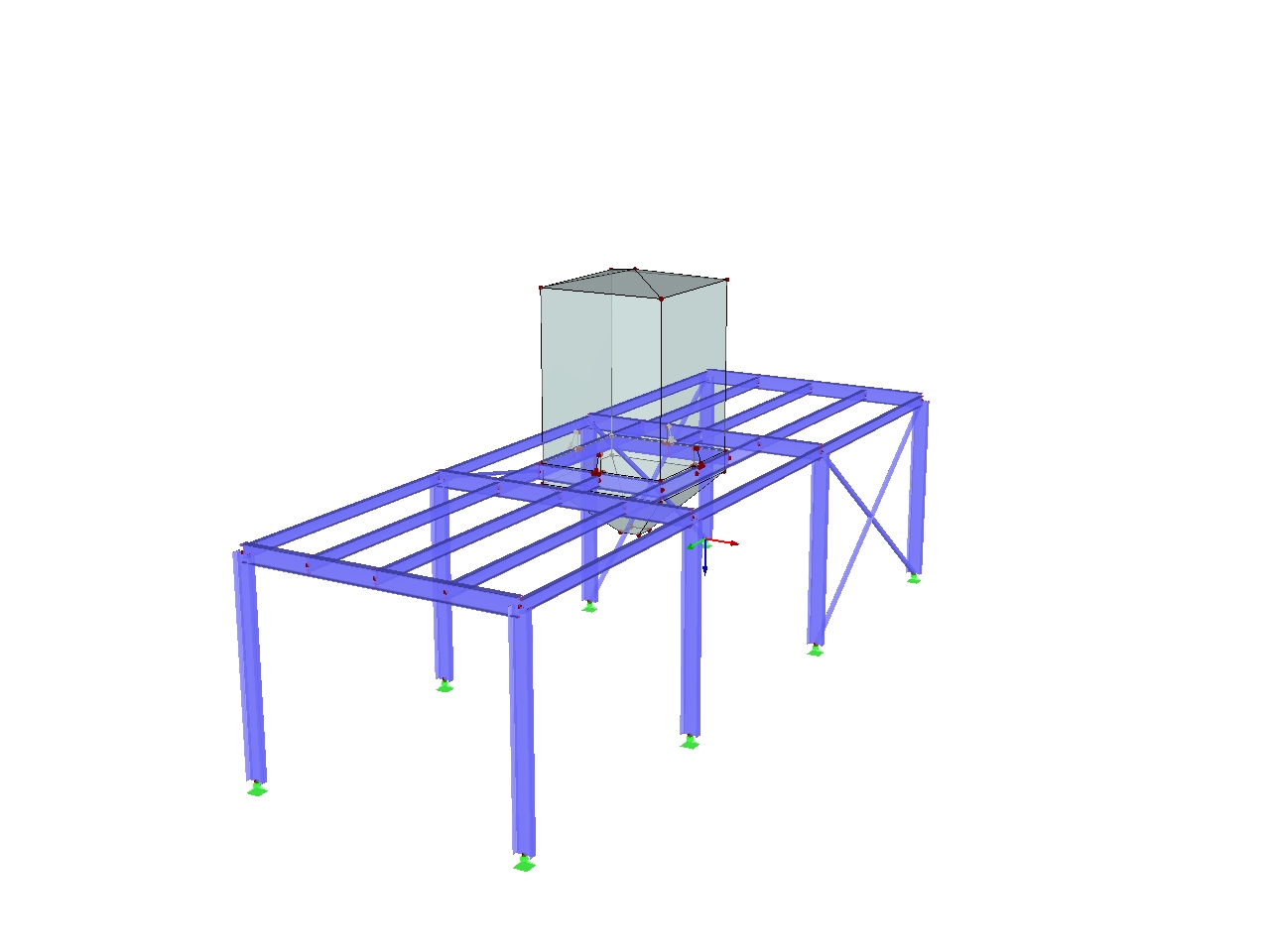

Beam structure consisting of steel members that supports a silo. Final model.
Final Steel Platform
Used in
3D Model
Specifications
| Number of Nodes | 89 |
| Number of Lines | 132 |
| Number of Members | 56 |
| Number of Surfaces | 28 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 2 |
| Total Weight | 2.577 tons |
| Dimensions (Metric) | 4.195 x 12.195 x 5.908 m |
| Dimensions (Imperial) | 13.76 x 40.01 x 19.38 feet |
| Program Version | 5.11.02 |
3D Model
Specifications
| Number of Nodes | 89 |
| Number of Lines | 132 |
| Number of Members | 56 |
| Number of Surfaces | 28 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 2 |
| Total Weight | 2.577 tons |
| Dimensions (Metric) | 4.195 x 12.195 x 5.908 m |
| Dimensions (Imperial) | 13.76 x 40.01 x 19.38 feet |
| Program Version | 5.11.02 |
