The bolts in the holes are modeled by means of plate elements without tension and represent the hole bearing accordingly.

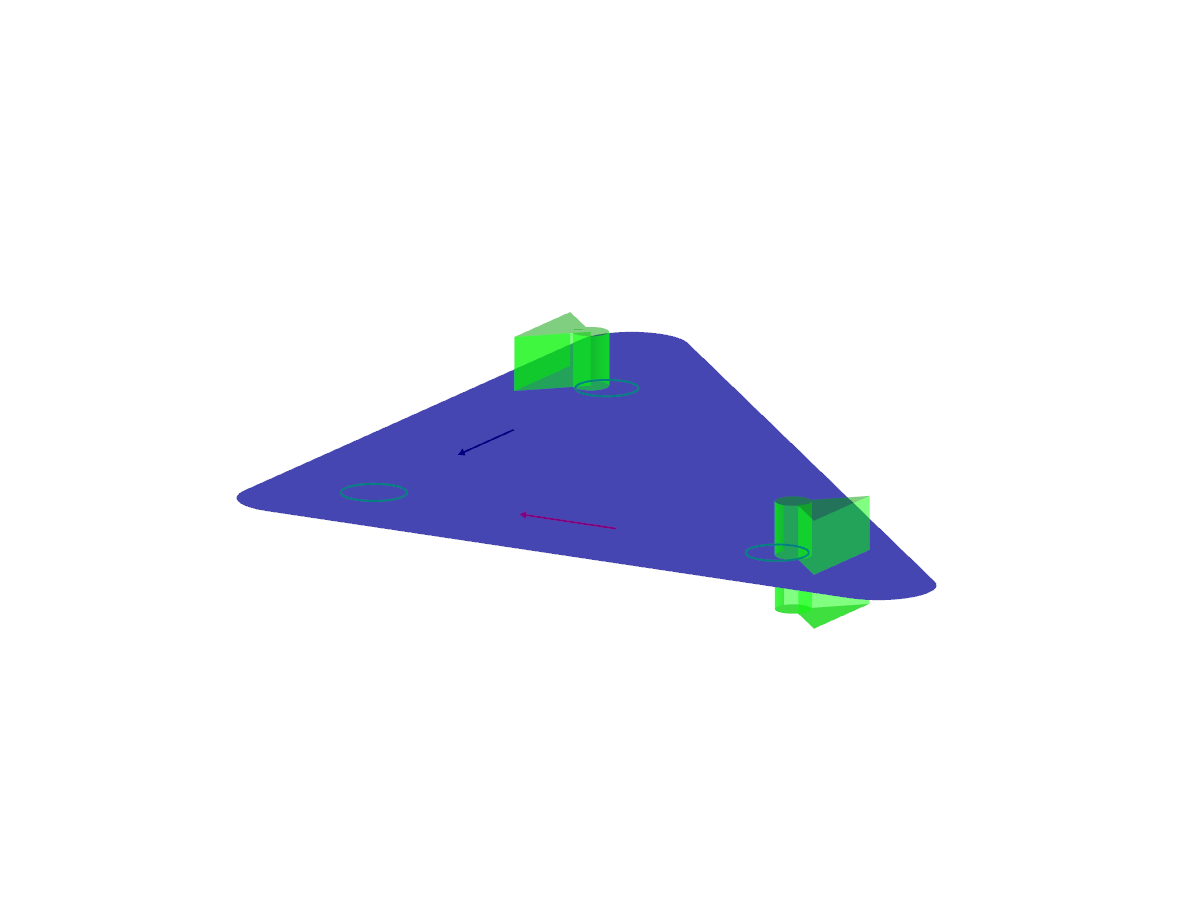

Steel Structure Gusset Plate | RFEM
Used in
3D Model
Specifications
| Number of Nodes | 21 |
| Number of Lines | 9 |
| Number of Surfaces | 4 |
| Number of Load Cases | 1 |
| Total Weight | 0.001 tons |
| Dimensions (Metric) | 0.469 x 0.469 x 0.389 m |
| Dimensions (Imperial) | 1.54 x 1.54 x 1.28 feet |
| Program Version | 5.23.00 |
2024-03-09
007621
The bolts in the holes are modeled by means of tension-free plate elements and represent the hole bearing accordingly.

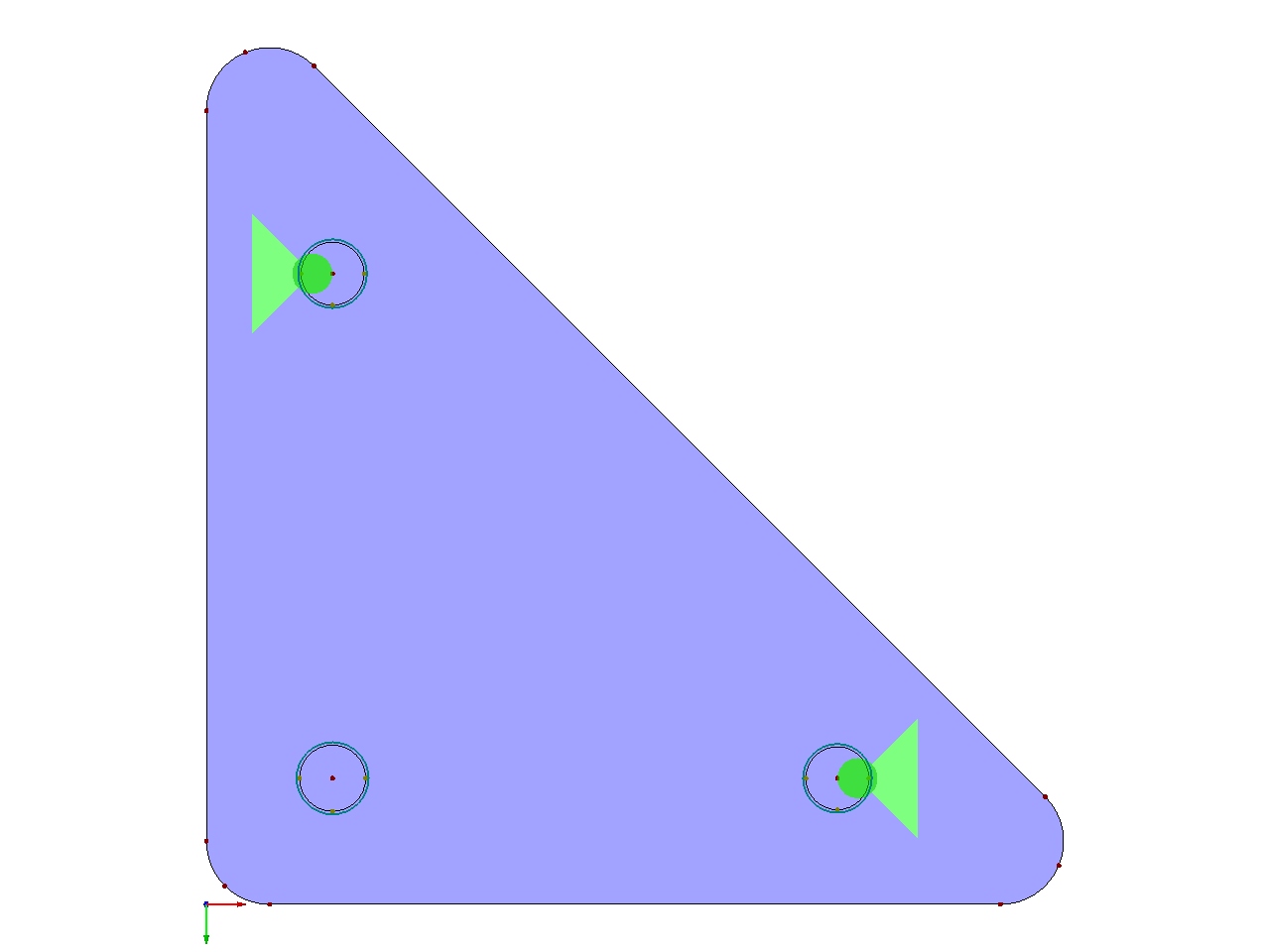

Steel Structure Gusset Plate | RFEM
3D Model
Specifications
| Number of Nodes | 21 |
| Number of Lines | 9 |
| Number of Surfaces | 4 |
| Number of Load Cases | 1 |
| Total Weight | 0.001 tons |
| Dimensions (Metric) | 0.469 x 0.469 x 0.389 m |
| Dimensions (Imperial) | 1.54 x 1.54 x 1.28 feet |
| Program Version | 5.23.00 |
