Download the cantilever model here and open it with the RFEM 5 finite element analysis software. This model is used in the video "Modeling with RFEM 5 | 007 Arched Structures".

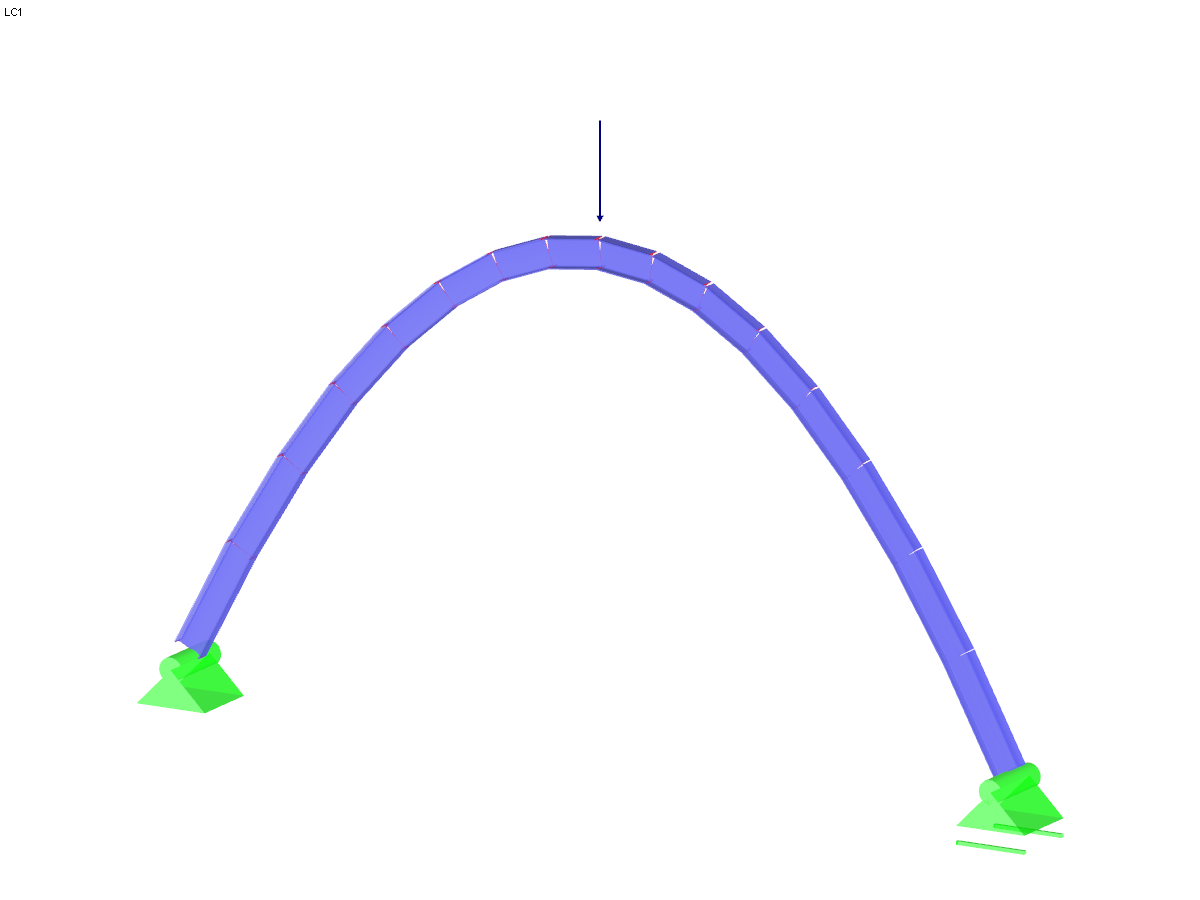

Modeling with RFEM 5 | 007 Arched Structures

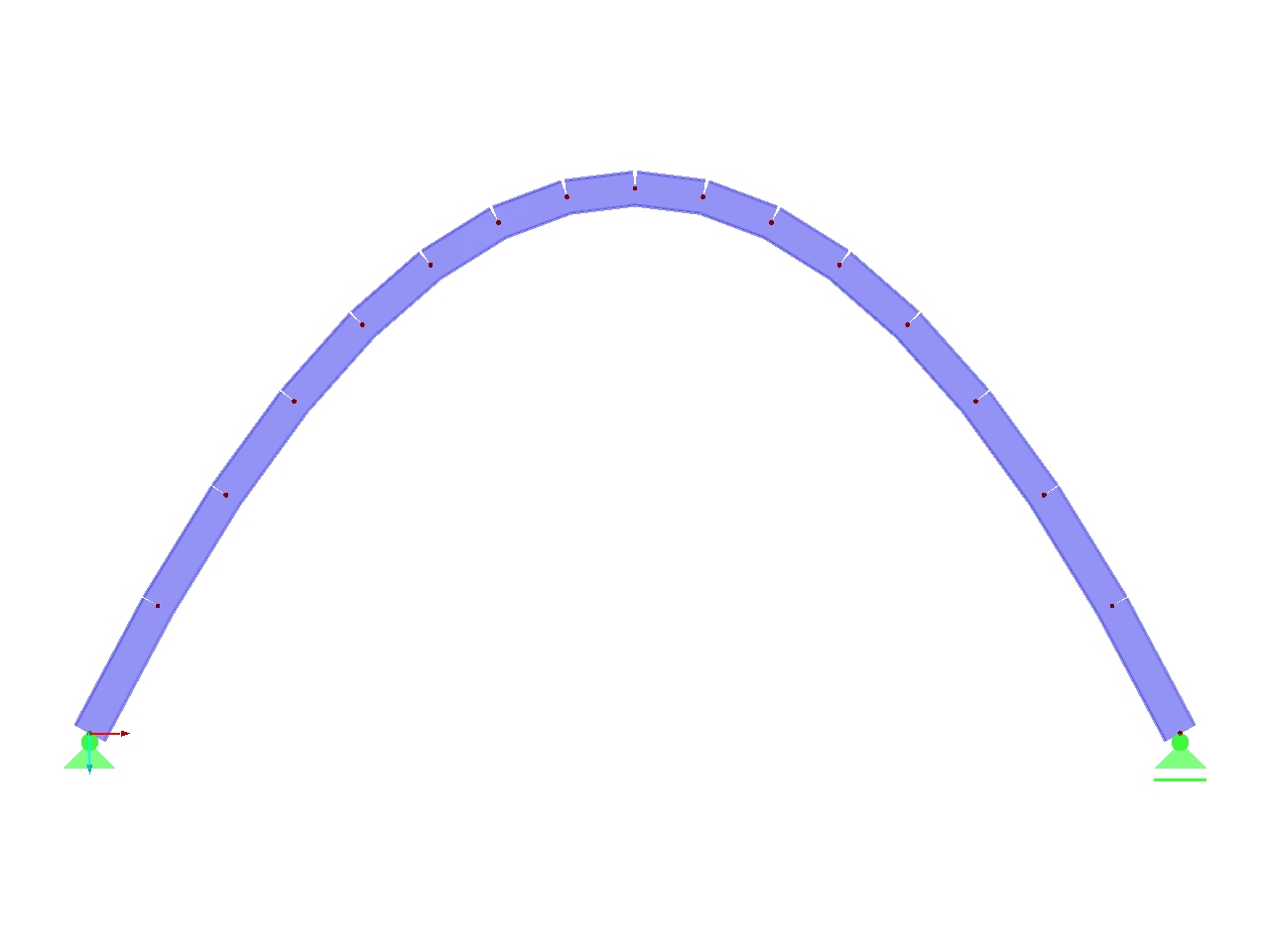

3D Model
Specifications
| Number of Nodes | 17 |
| Number of Lines | 16 |
| Number of Members | 16 |
| Number of Load Cases | 1 |
| Total Weight | 0.198 tons |
| Dimensions (Metric) | 6.288 x 0.288 x 3.144 m |
| Dimensions (Imperial) | 20.63 x 0.94 x 10.31 feet |
| Program Version | 5.21.01 |
