Download the single-span beam model here and open it with the RFEM 5 finite element analysis software. This model is used in the video "Modeling with RFEM 5 | 001 Single-Span Beam".

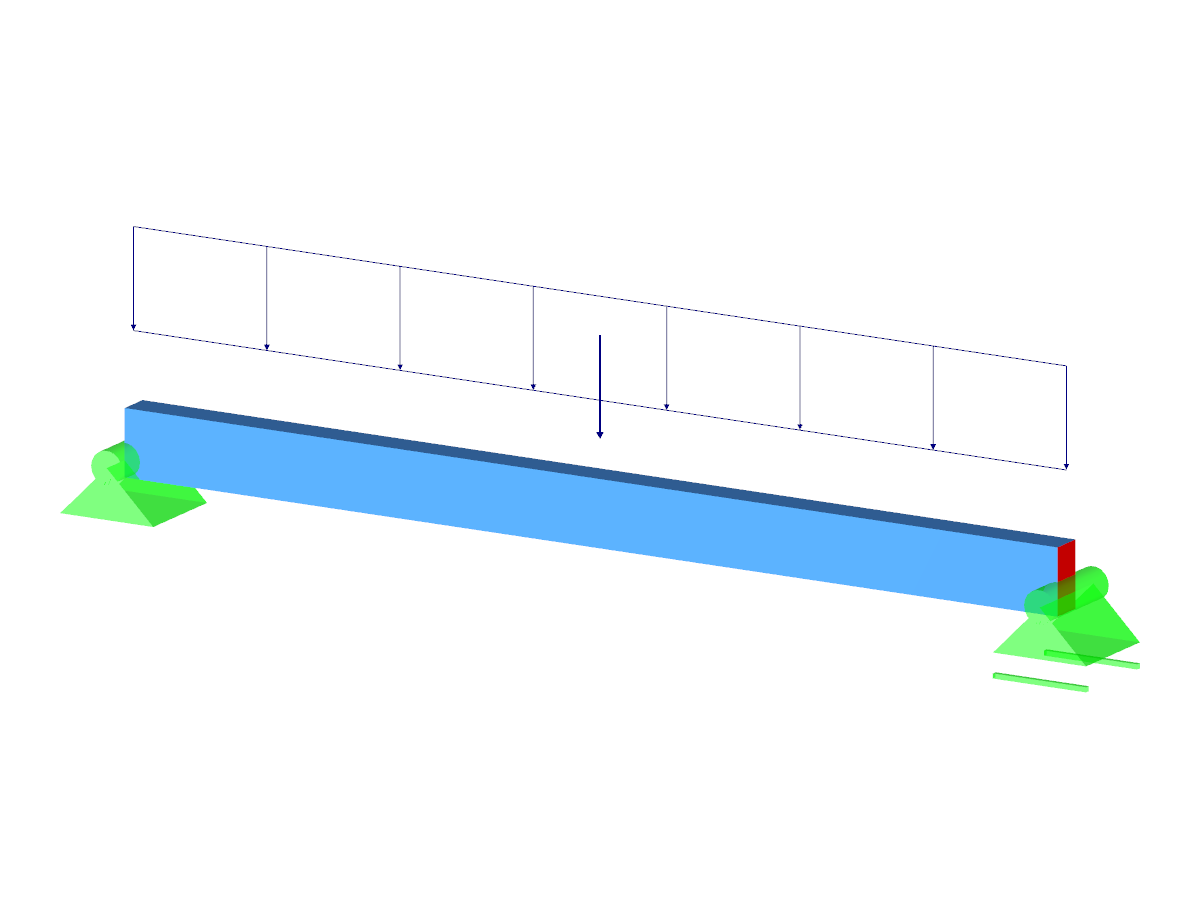

Modeling with RFEM 5 | 001 Single-Span Beam
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 3.288 x 0.288 x 0.288 m |
| Dimensions (Imperial) | 10.79 x 0.94 x 0.94 feet |
| Program Version | 5.21.01 |

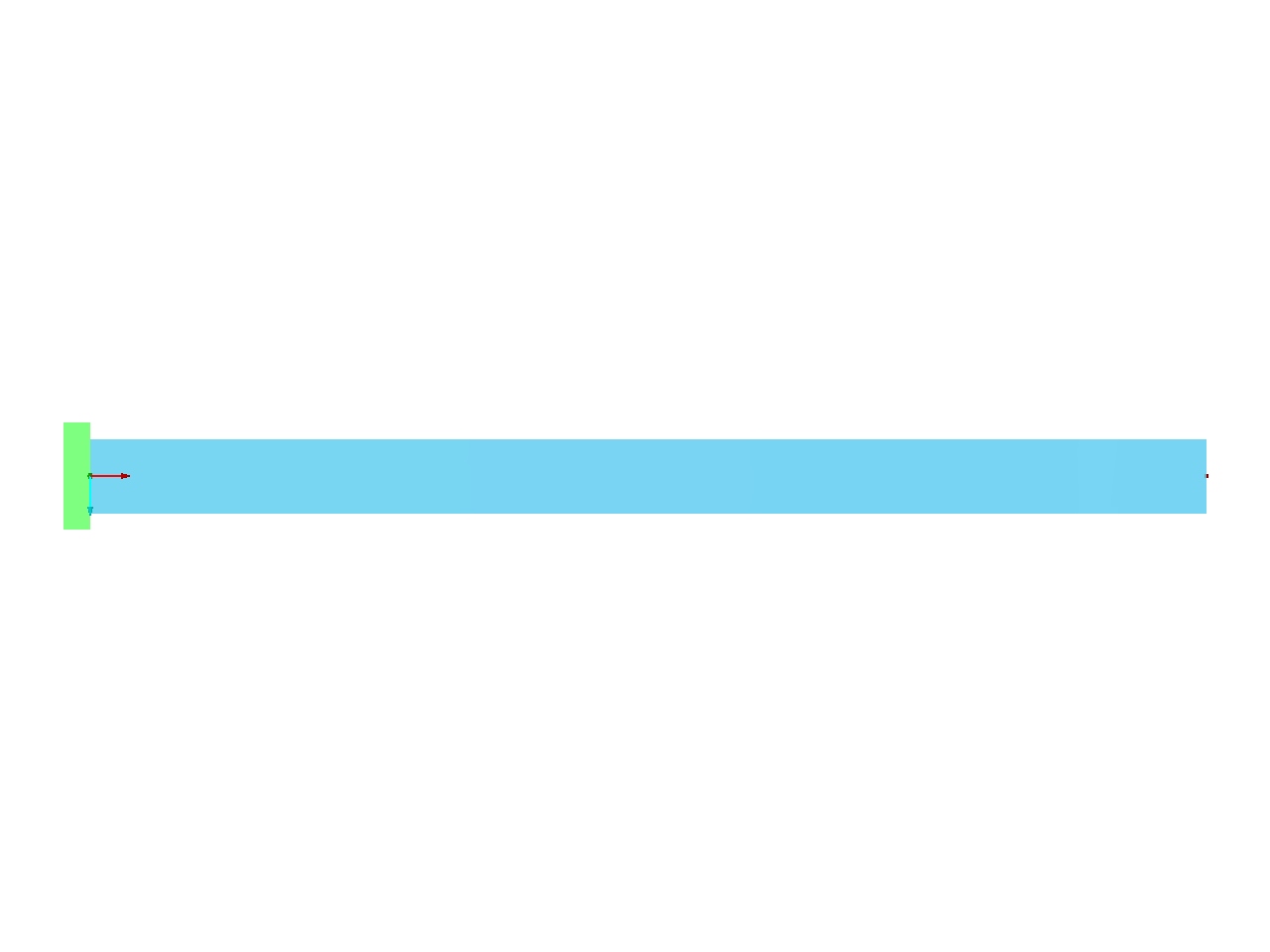

Cantilever
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 3.288 x 0.288 x 0.288 m |
| Dimensions (Imperial) | 10.79 x 0.94 x 0.94 feet |
| Program Version | 5.21.01 |
