Download the cantilever model here and open it with the RFEM 5 finite element analysis software. This model was shown in the created video "Modeling with RFEM 5 | 002 Cantilever".

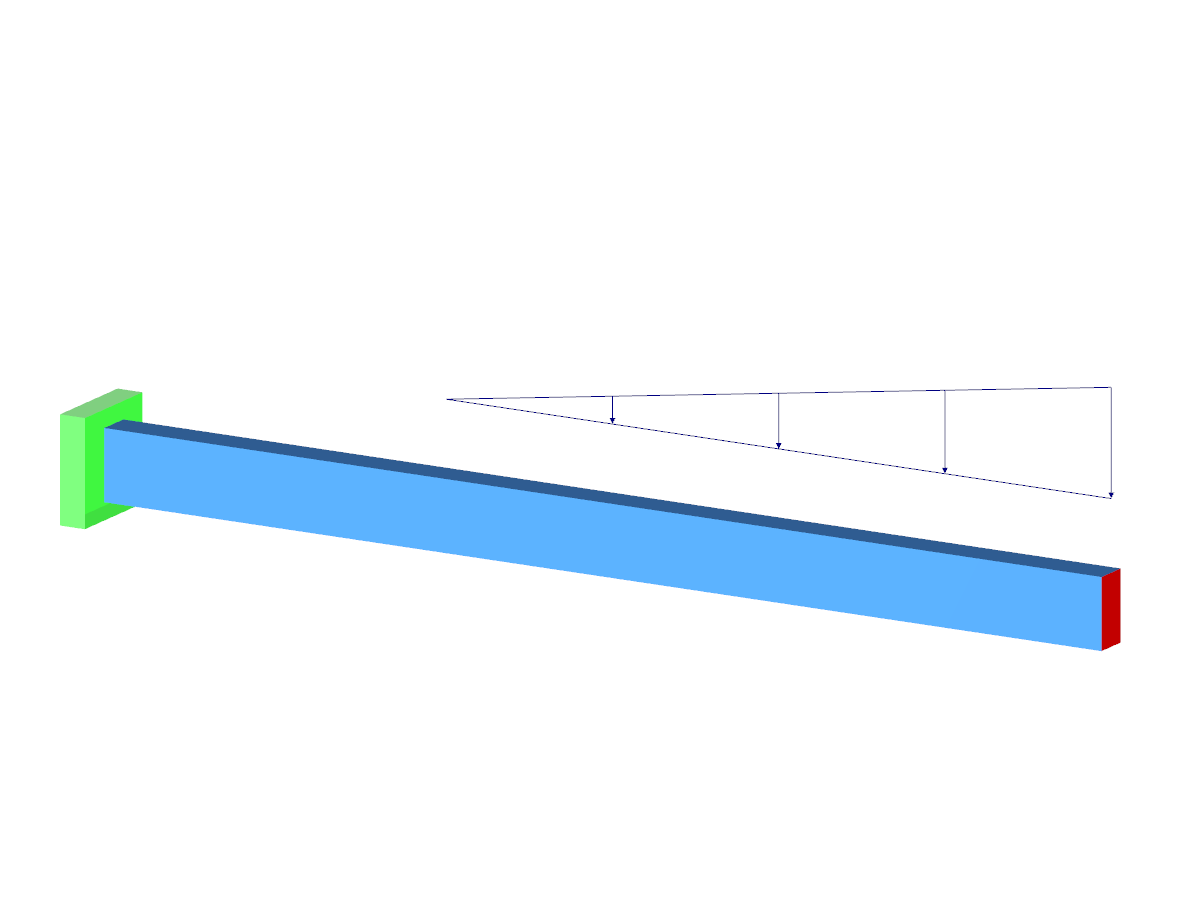

Modeling with RFEM 5 | 002 Cantilever Beam
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 3.144 x 0.288 x 0.288 m |
| Dimensions (Imperial) | 10.31 x 0.94 x 0.94 feet |
| Program Version | 5.21.01 |
