RFEM model of spatial steel frame.
3D Frame
Used in
3D Model
Specifications
| Number of Nodes | 20 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.521 tons |
| Dimensions (Metric) | 10.000 x 4.000 x 15.000 m |
| Dimensions (Imperial) | 32.81 x 13.12 x 49.21 feet |

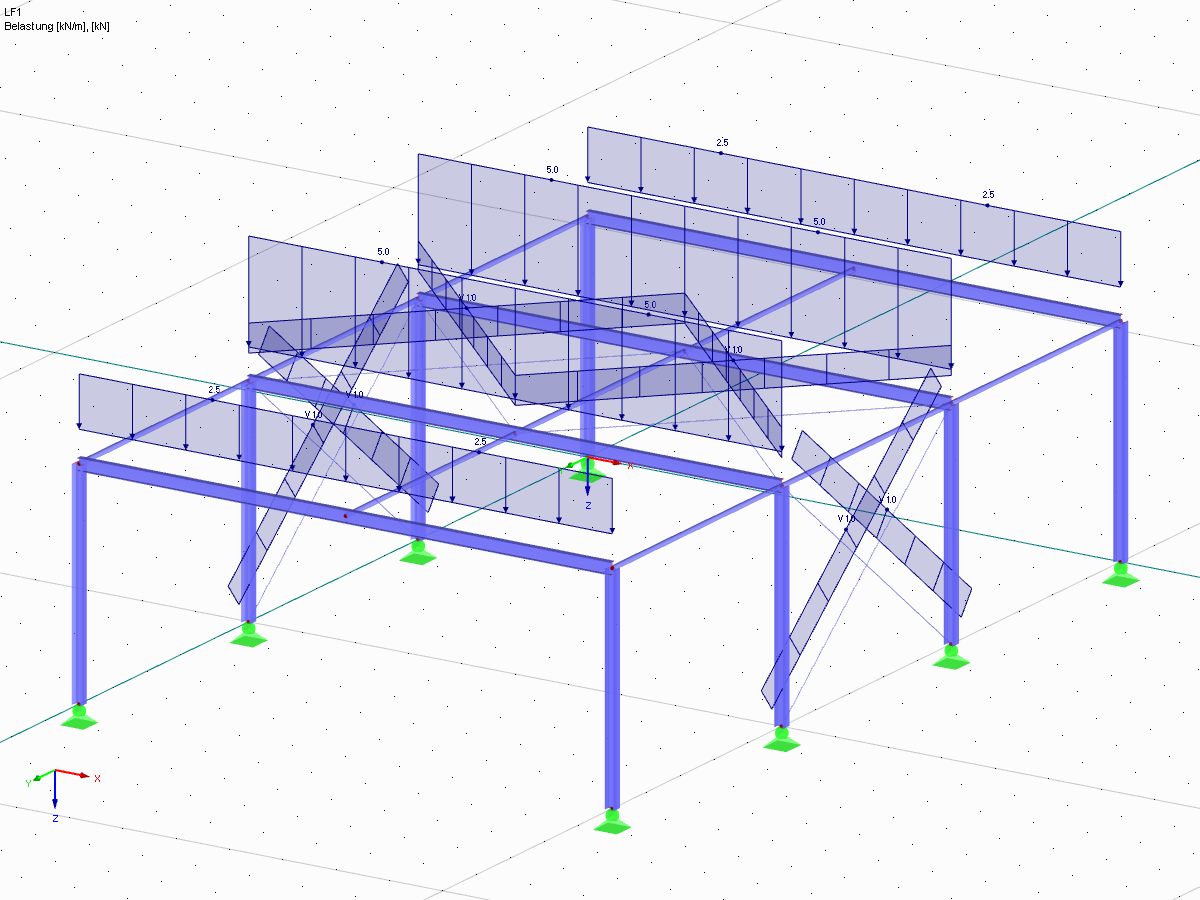

3D Frame with Loads
3D Frame
3D Model
Specifications
| Number of Nodes | 20 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.521 tons |
| Dimensions (Metric) | 10.000 x 4.000 x 15.000 m |
| Dimensions (Imperial) | 32.81 x 13.12 x 49.21 feet |
