2D Frame with Nodal Forces

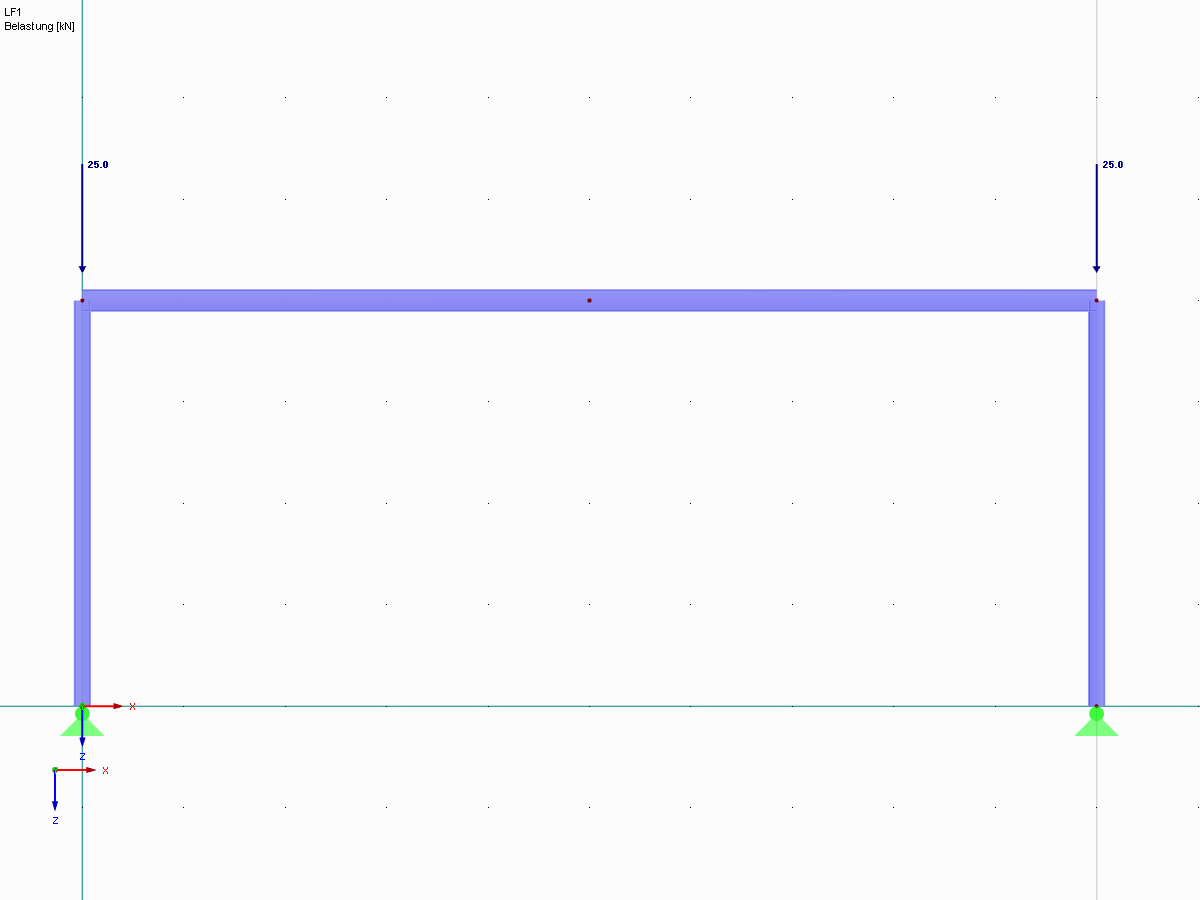

2D Frame
Used in

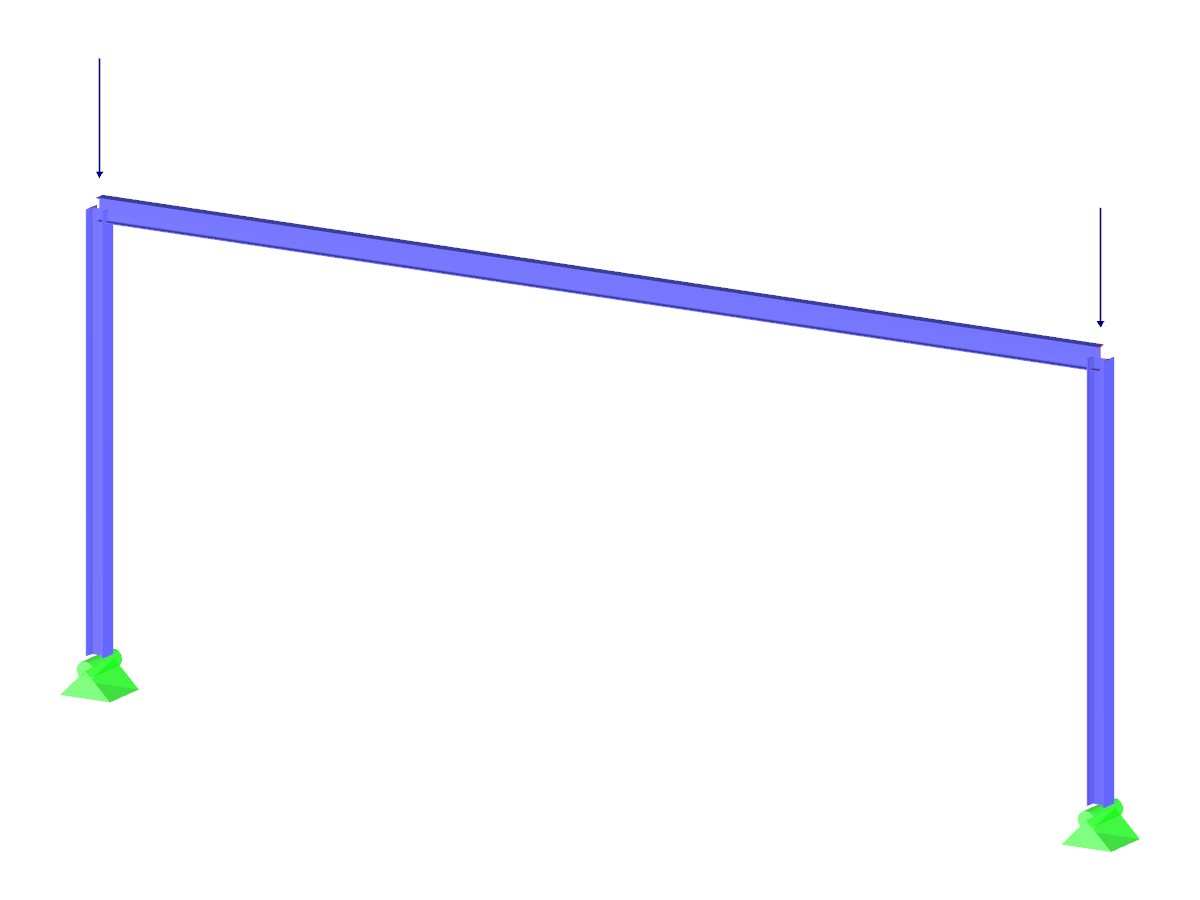

3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.546 tons |
| Dimensions (Metric) | 10.000 x 4.000 x 0.000 m |
| Dimensions (Imperial) | 32.81 x 13.12 x 0 feet |
