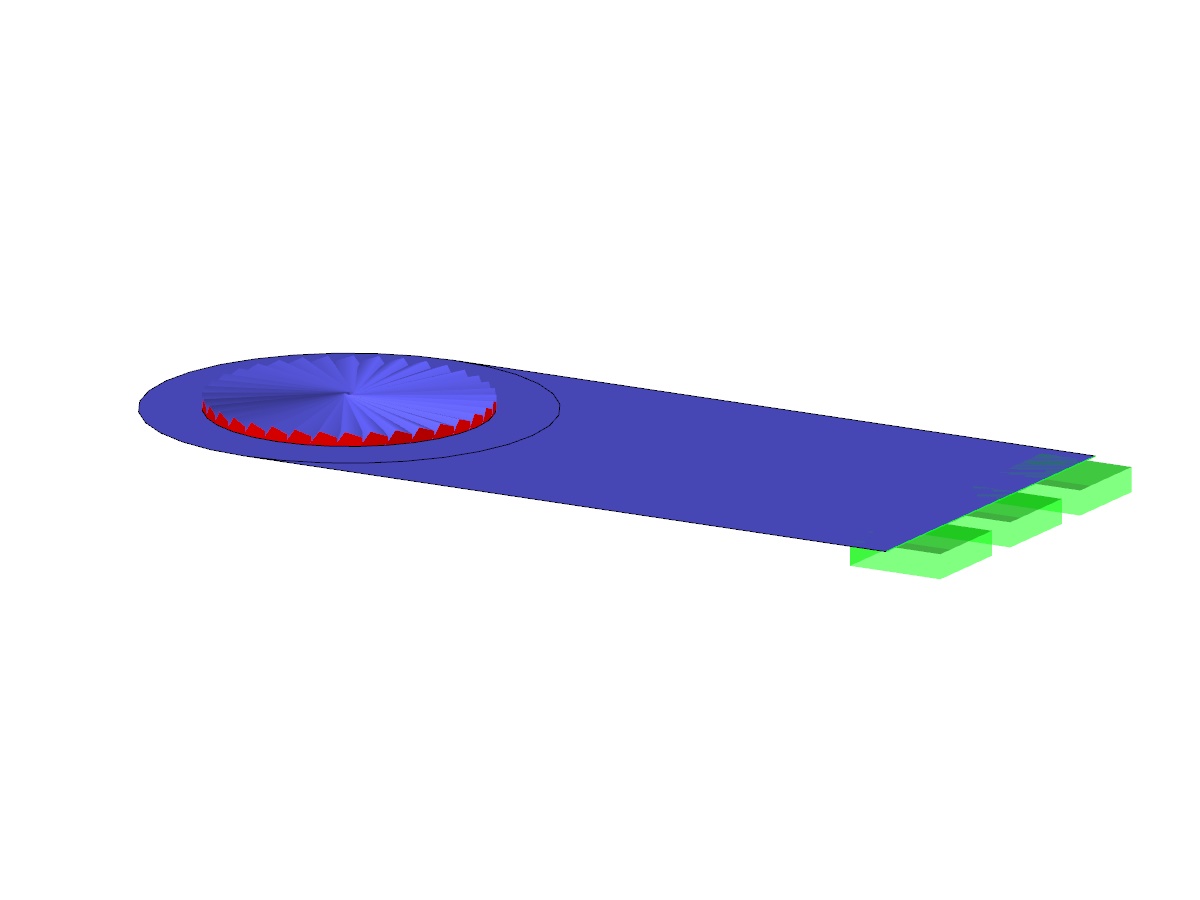

Bolt
Used in
3D Model
Specifications
| Number of Nodes | 43 |
| Number of Lines | 42 |
| Number of Members | 36 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.005 tons |
| Dimensions (Metric) | 0.600 x 0.500 x 0.500 m |
| Dimensions (Imperial) | 1.97 x 1.64 x 1.64 feet |
| Program Version | 5.01.00 |
2024-03-09
010502

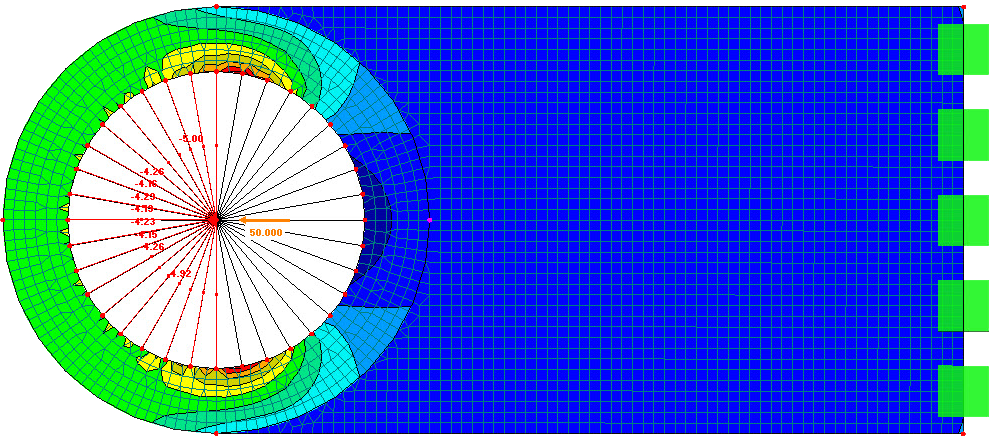

Modeling Bolt Connection
3D Model
Specifications
| Number of Nodes | 43 |
| Number of Lines | 42 |
| Number of Members | 36 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.005 tons |
| Dimensions (Metric) | 0.600 x 0.500 x 0.500 m |
| Dimensions (Imperial) | 1.97 x 1.64 x 1.64 feet |
| Program Version | 5.01.00 |
