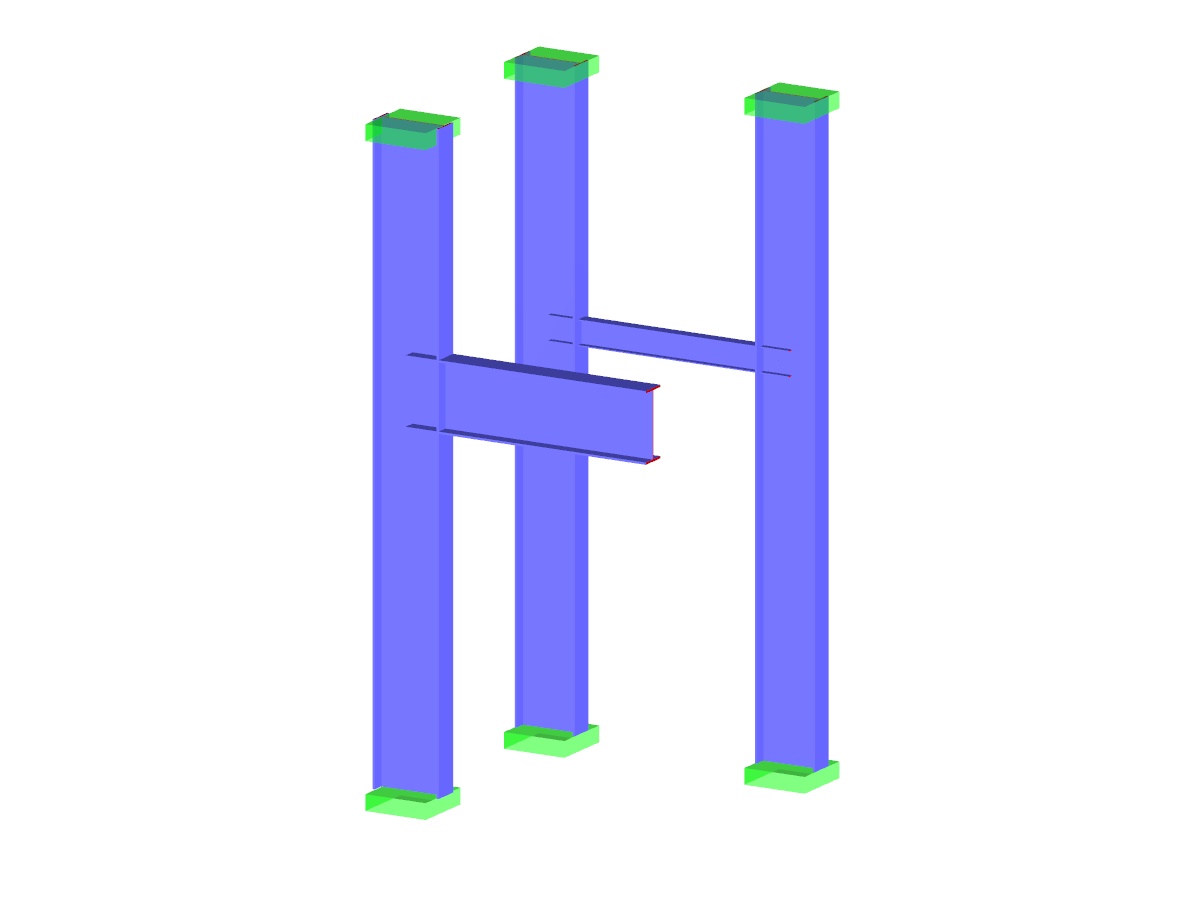

Bolt Connection A
Used in
3D Model
Specifications
| Number of Nodes | 10 |
| Number of Lines | 8 |
| Number of Members | 8 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.690 tons |
| Dimensions (Metric) | 2.000 x 5.000 x 2.000 m |
| Dimensions (Imperial) | 6.56 x 16.4 x 6.56 feet |
