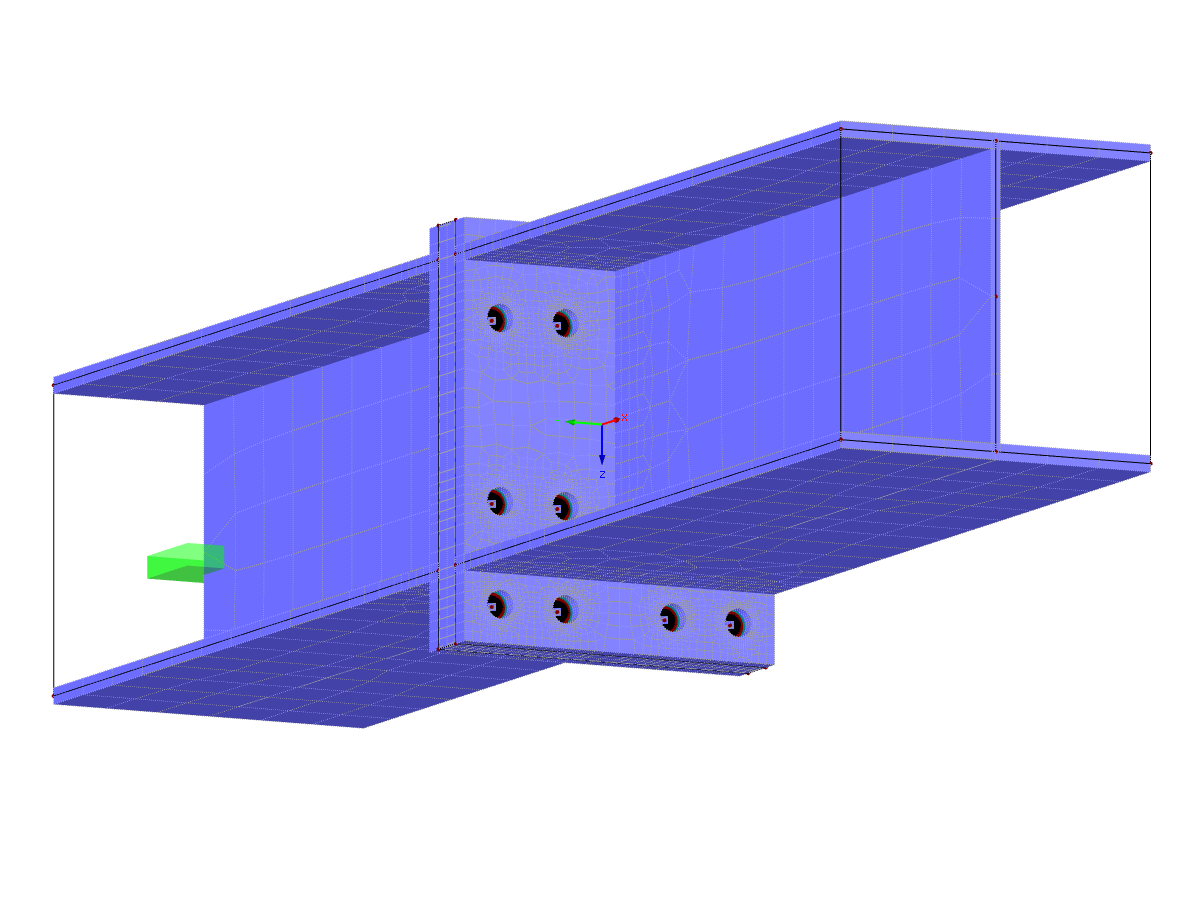

Connection with Protruding End Plate
3D Model
More About 3D Model
Specifications
| Number of Nodes | 925 |
| Number of Lines | 970 |
| Number of Members | 877 |
| Number of Surfaces | 26 |
| Number of Solids | 1 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 2 |
| Total Weight | 0.124 tons |
| Dimensions (Metric) | 1.390 x 0.260 x 0.324 m |
| Dimensions (Imperial) | 4.56 x 0.85 x 1.06 feet |
| Program Version | 5.23.02 |
