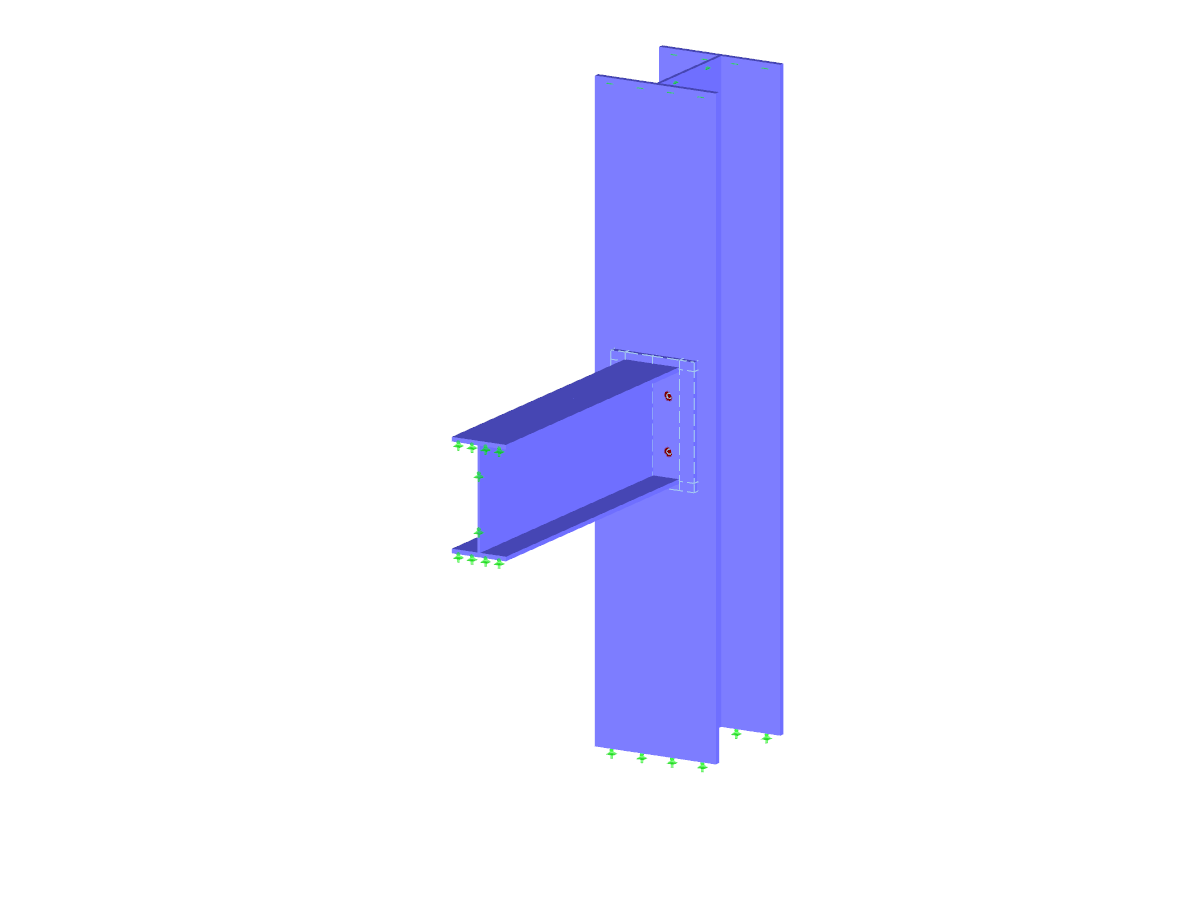

Beam Bolted to Column
Used in
3D Model
Specifications
| Number of Nodes | 114 |
| Number of Lines | 160 |
| Number of Members | 38 |
| Number of Surfaces | 69 |
| Number of Solids | 12 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.285 tons |
| Dimensions (Metric) | 0.368 x 1.276 x 1.829 m |
| Dimensions (Imperial) | 1.21 x 4.19 x 6 feet |
| Program Version | 5.10.01 |
