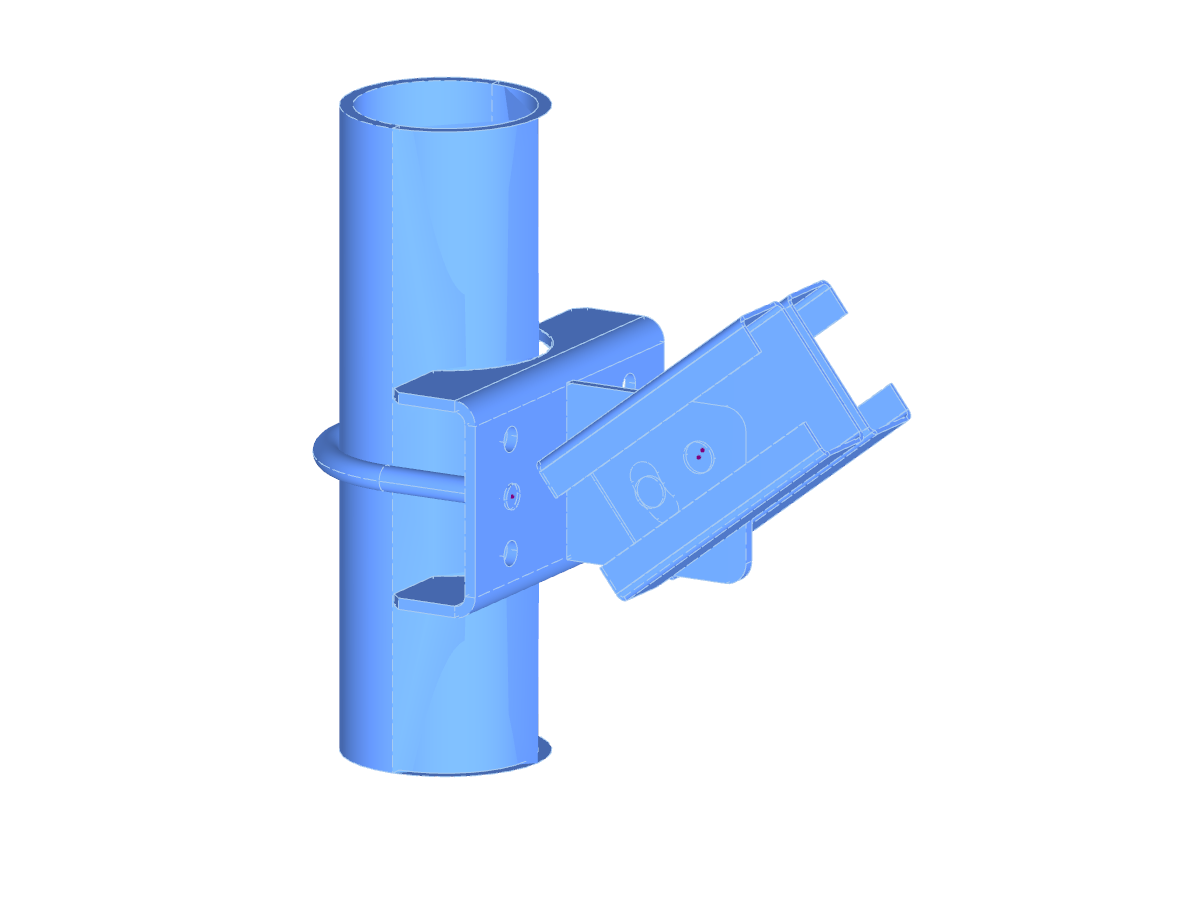

Steel Connection Modeled with Solid Elements
3D Model
Specifications
| Number of Nodes | 361 |
| Number of Lines | 398 |
| Number of Members | 0 |
| Number of Surfaces | 175 |
| Number of Solids | 12 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.184 tons |
| Dimensions (Metric) | 1.275 x 1.367 x 0.775 m |
| Dimensions (Imperial) | 4.18 x 4.48 x 2.54 feet |
