0001-01-01
015287
Structural System Consisting of Plates

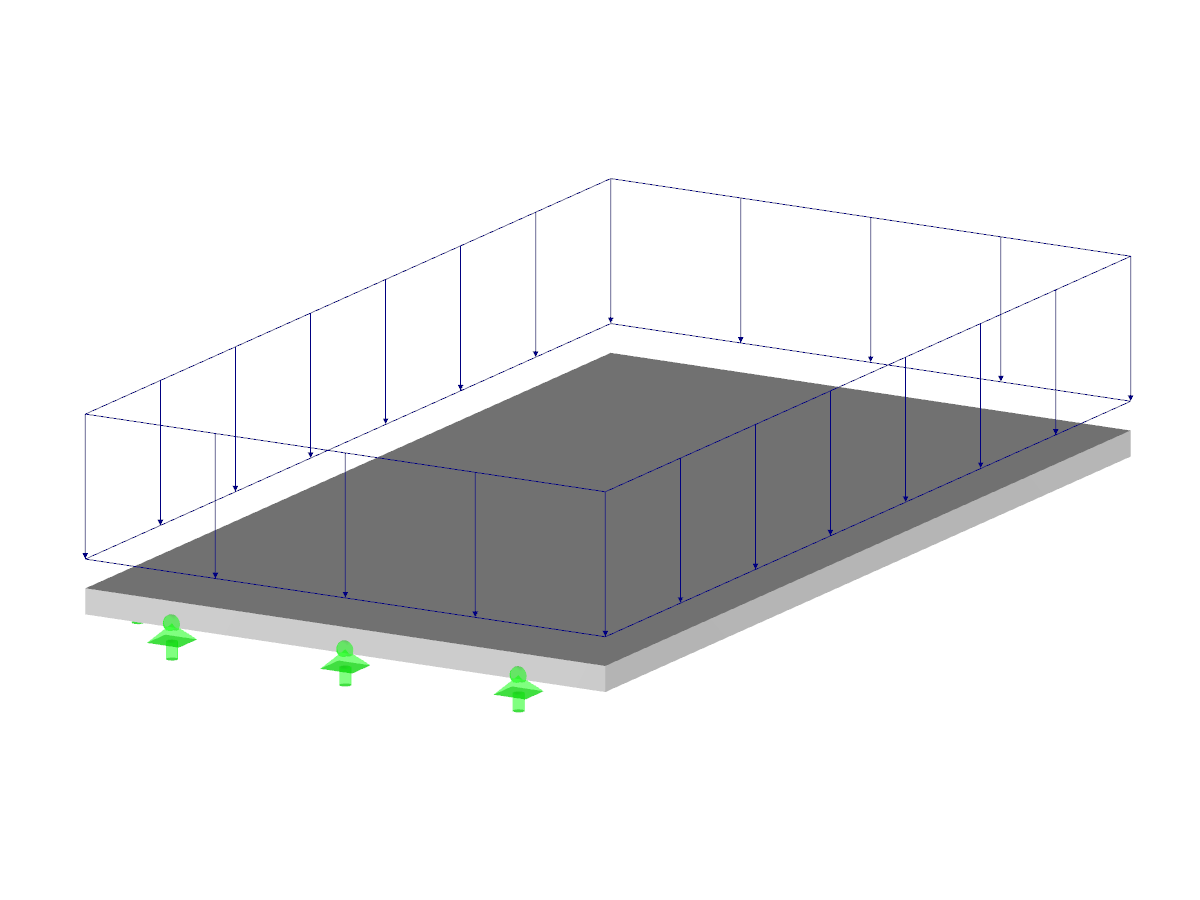

Plate Supporting Structure
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 12.600 tons |
| Dimensions (Metric) | 4.000 x 0.000 x 7.000 m |
| Dimensions (Imperial) | 13.12 x 0 x 22.97 feet |
2024-03-09
015506
Structural System Consisting of Plates

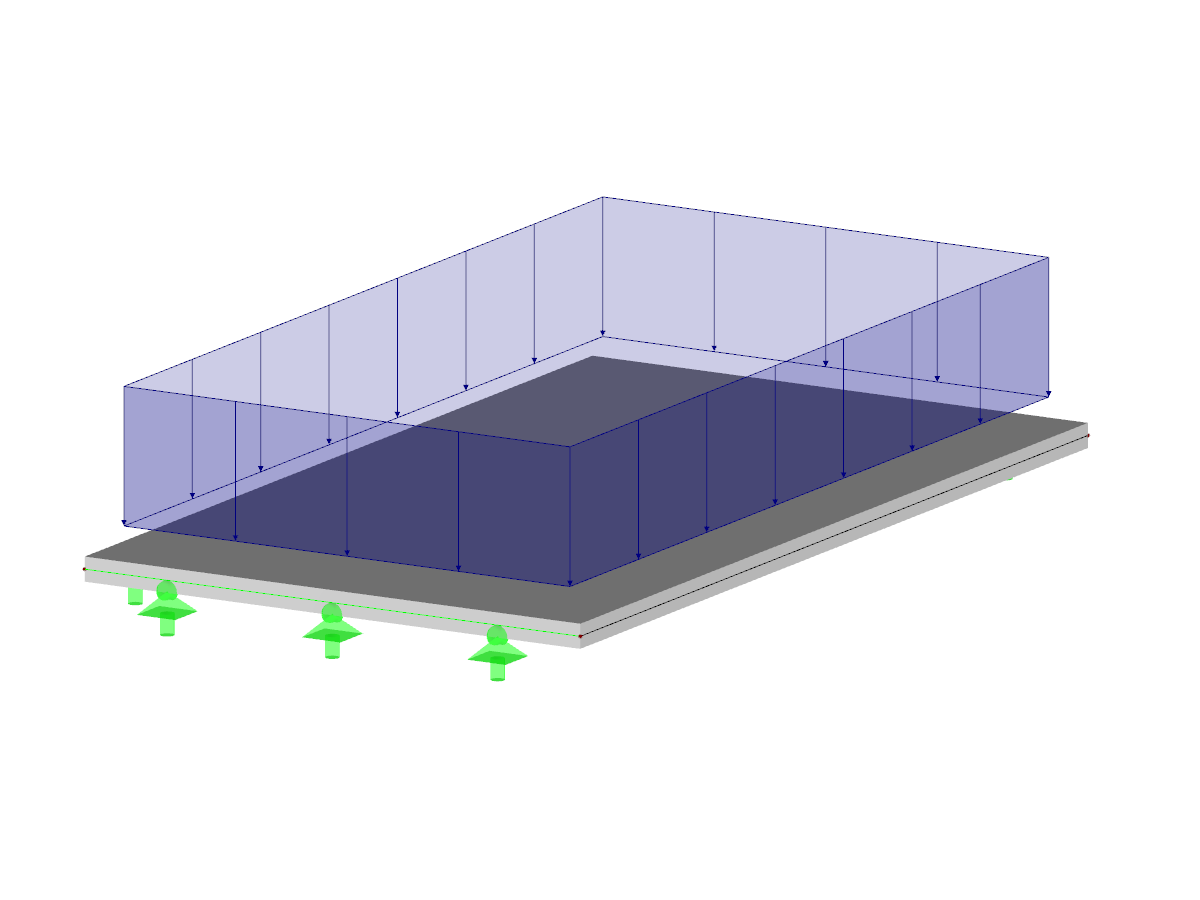

Plate Supporting Structure
Used in
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 12.600 tons |
| Dimensions (Metric) | 4.000 x 0.000 x 7.000 m |
| Dimensions (Imperial) | 13.12 x 0 x 22.97 feet |
