2024-03-09
015488

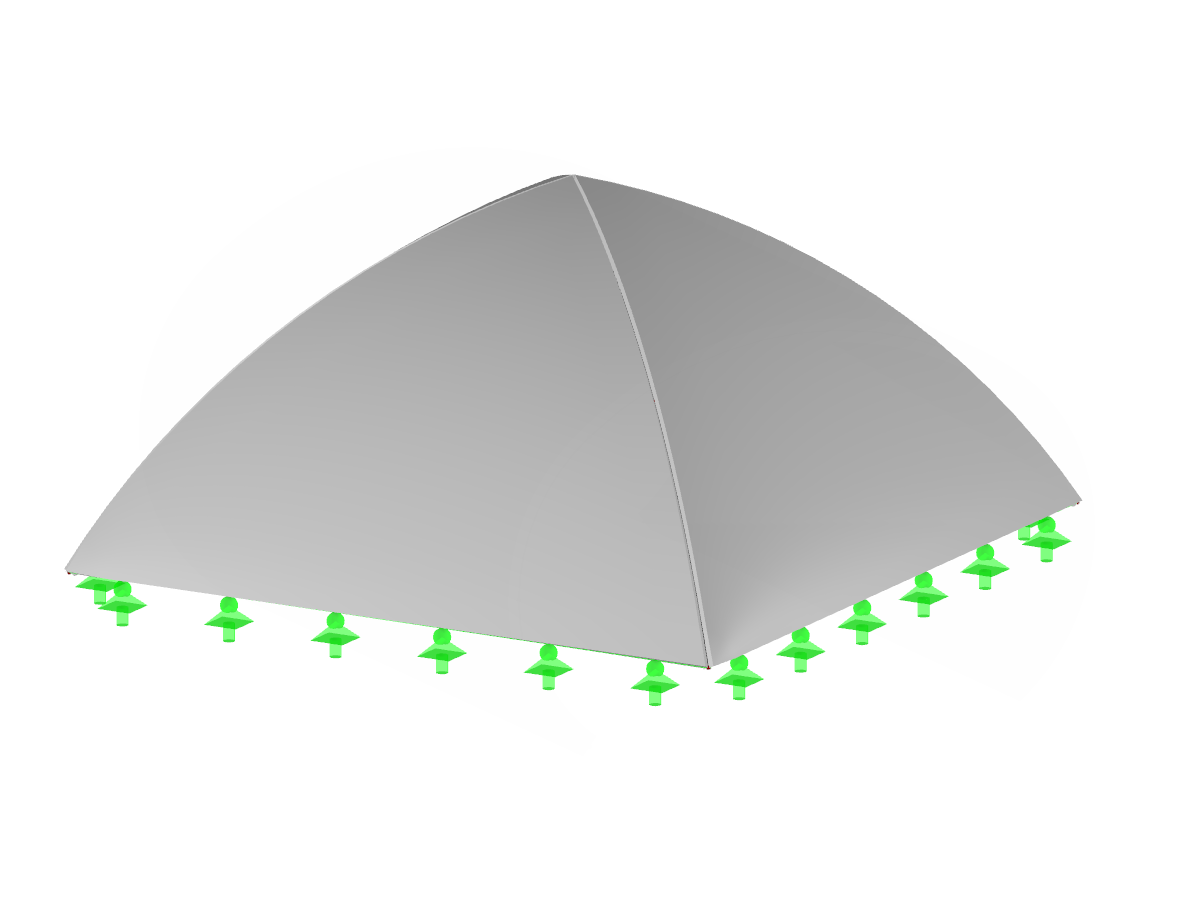

Symmetrical vault with only one vertex.
Dome
Used in
3D Model
Specifications
| Number of Nodes | 9 |
| Number of Lines | 11 |
| Number of Surfaces | 4 |
| Number of Load Cases | 1 |
| Total Weight | 75.268 tons |
| Dimensions (Metric) | 12.591 x 12.591 x 7.591 m |
| Dimensions (Imperial) | 41.31 x 41.31 x 24.9 feet |
| Program Version | 5.24.02 |
0001-01-01
015307

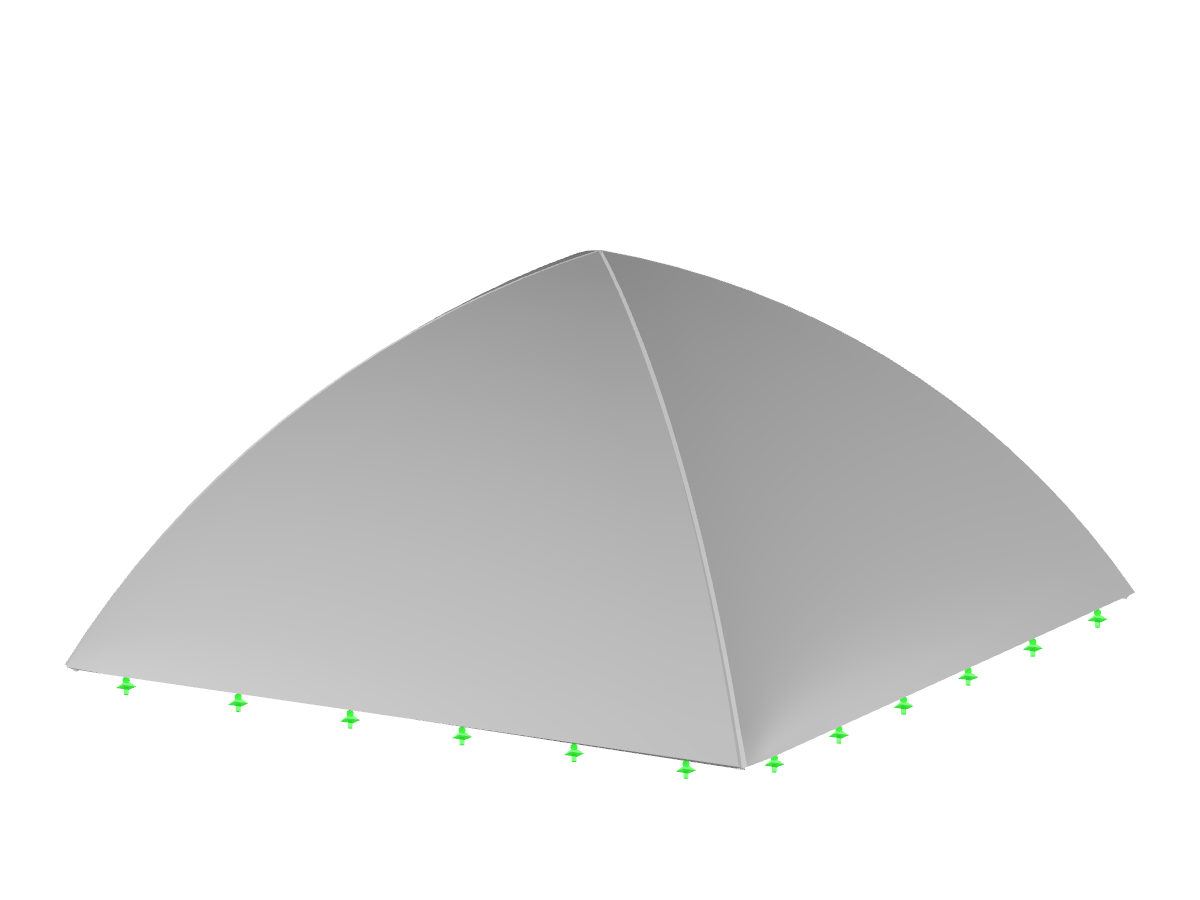

Symmetrical vault with only one vertex.
Dome
3D Model
Specifications
| Number of Nodes | 9 |
| Number of Lines | 11 |
| Number of Surfaces | 4 |
| Number of Load Cases | 1 |
| Total Weight | 75.268 tons |
| Dimensions (Metric) | 12.591 x 12.591 x 7.591 m |
| Dimensions (Imperial) | 41.31 x 41.31 x 24.9 feet |
| Program Version | 5.24.02 |
