2024-03-09
015490

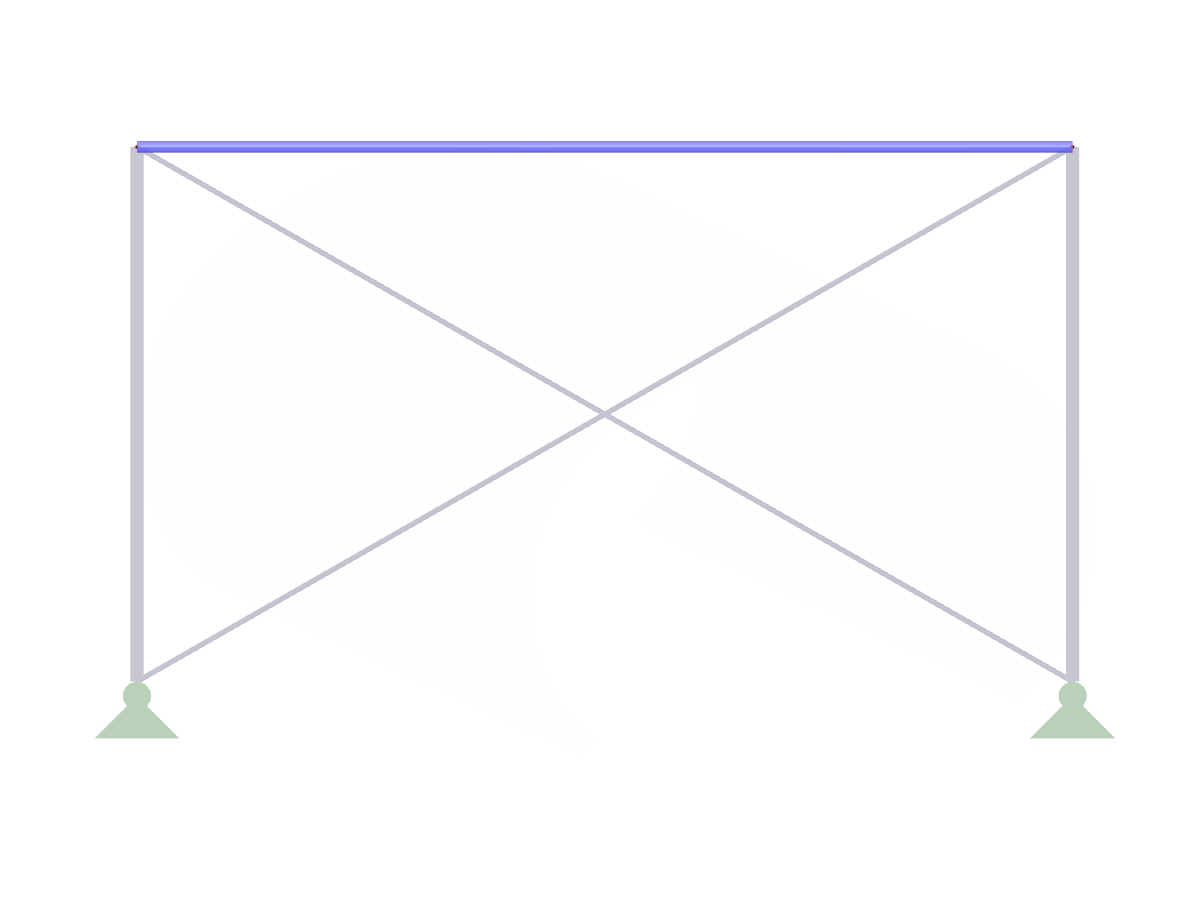

Rod with double-sided hinge connection absorbing and transferring only conventional compression forces.
Compression Member
Used in
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Load Cases | 1 |
| Total Weight | 0.428 tons |
| Dimensions (Metric) | 7.640 x 0.640 x 4.320 m |
| Dimensions (Imperial) | 25.07 x 2.1 x 14.17 feet |
| Program Version | 5.24.02 |
0001-01-01
015305
Rod with double-sided hinge connection absorbing and transferring only conventional compression forces.
Compression Member
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Load Cases | 1 |
| Total Weight | 0.428 tons |
| Dimensions (Metric) | 7.640 x 0.640 x 4.320 m |
| Dimensions (Imperial) | 25.07 x 2.1 x 14.17 feet |
| Program Version | 5.24.02 |
