2024-03-09
015497
Structural System Consisting of Arches

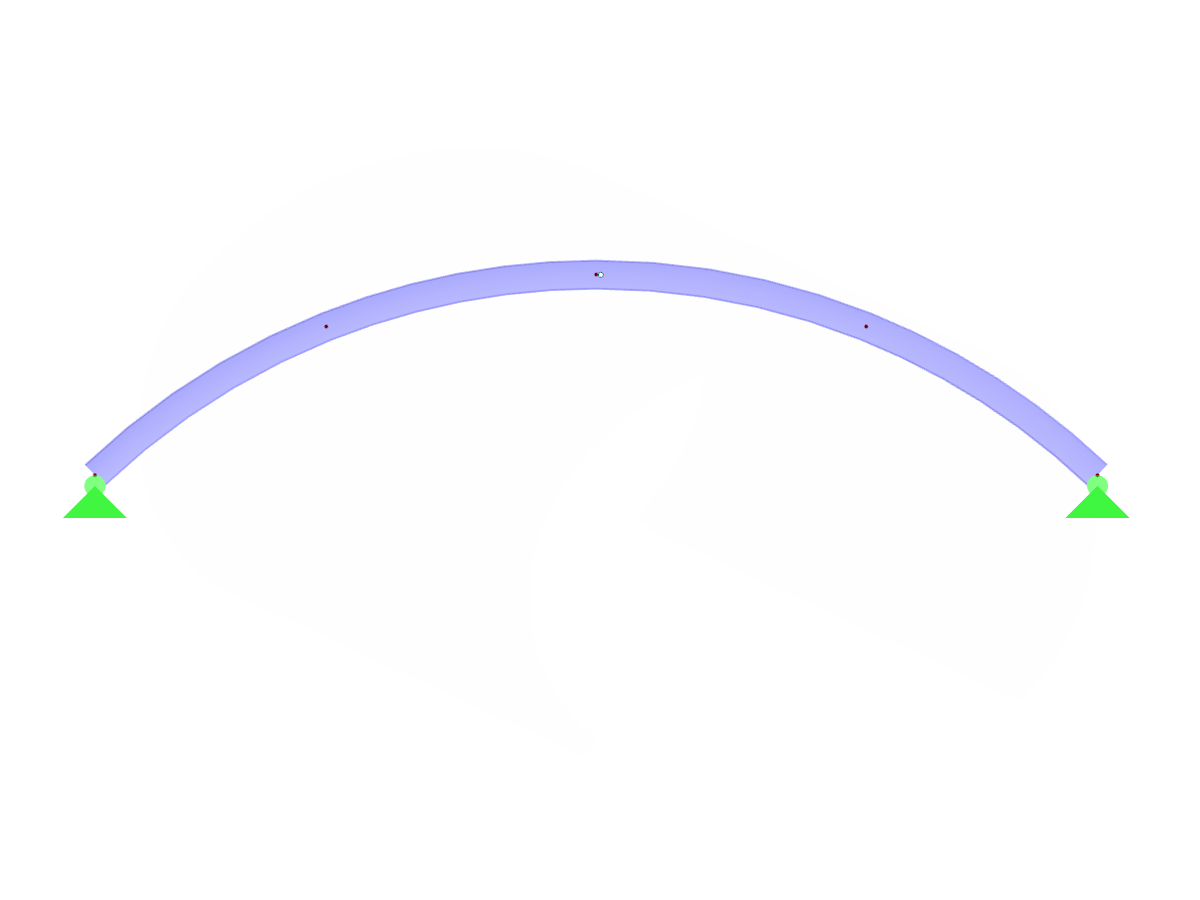

Arched Structure
Used in
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Total Weight | 0.466 tons |
| Dimensions (Metric) | 10.640 x 0.640 x 2.320 m |
| Dimensions (Imperial) | 34.91 x 2.1 x 7.61 feet |
| Program Version | 5.24.02 |
0001-01-01
015302
Structural System Consisting of Arches

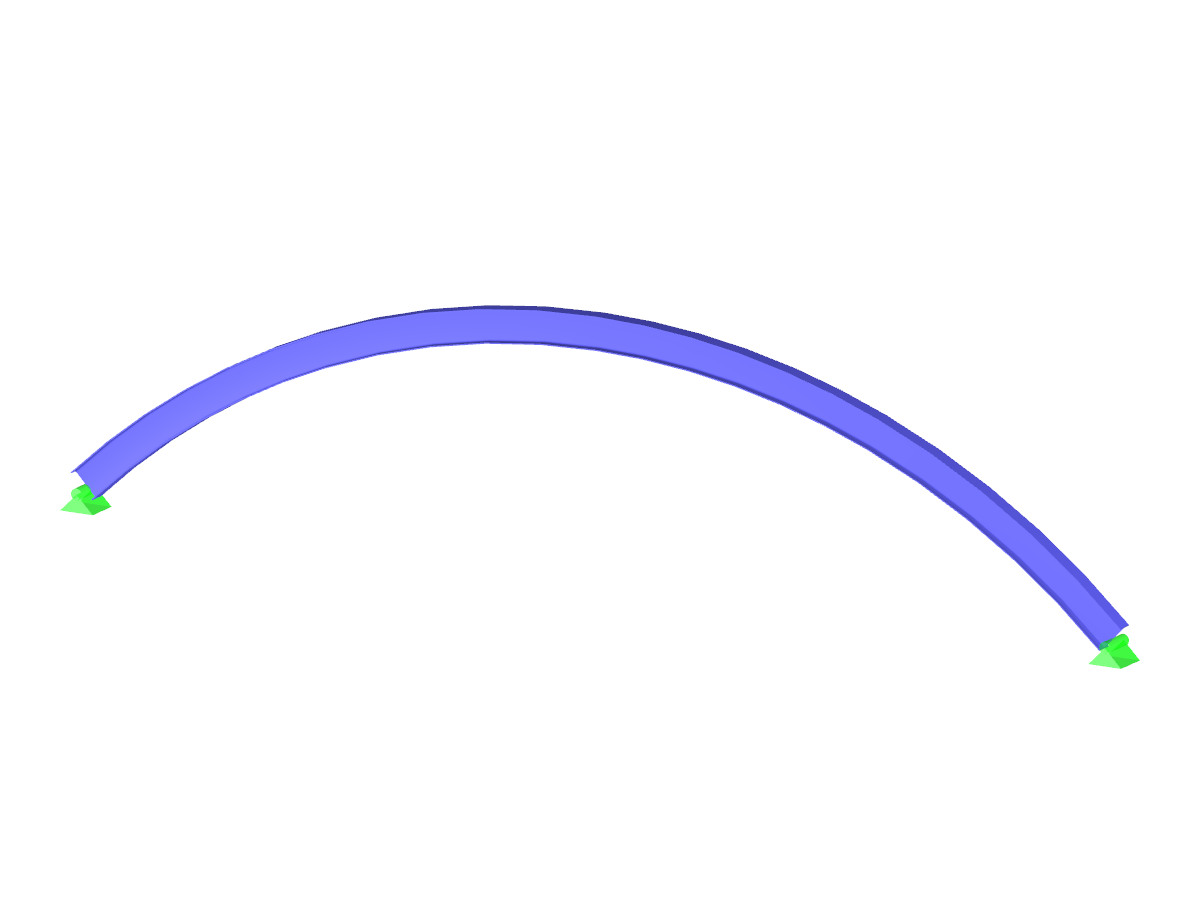

Arched Structure
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Total Weight | 0.466 tons |
| Dimensions (Metric) | 10.640 x 0.640 x 2.320 m |
| Dimensions (Imperial) | 34.91 x 2.1 x 7.61 feet |
| Program Version | 5.24.02 |
