2024-03-09
015499
Beam Structure with Members only Subjected to Axial Forces, here for Bridging Large Spans

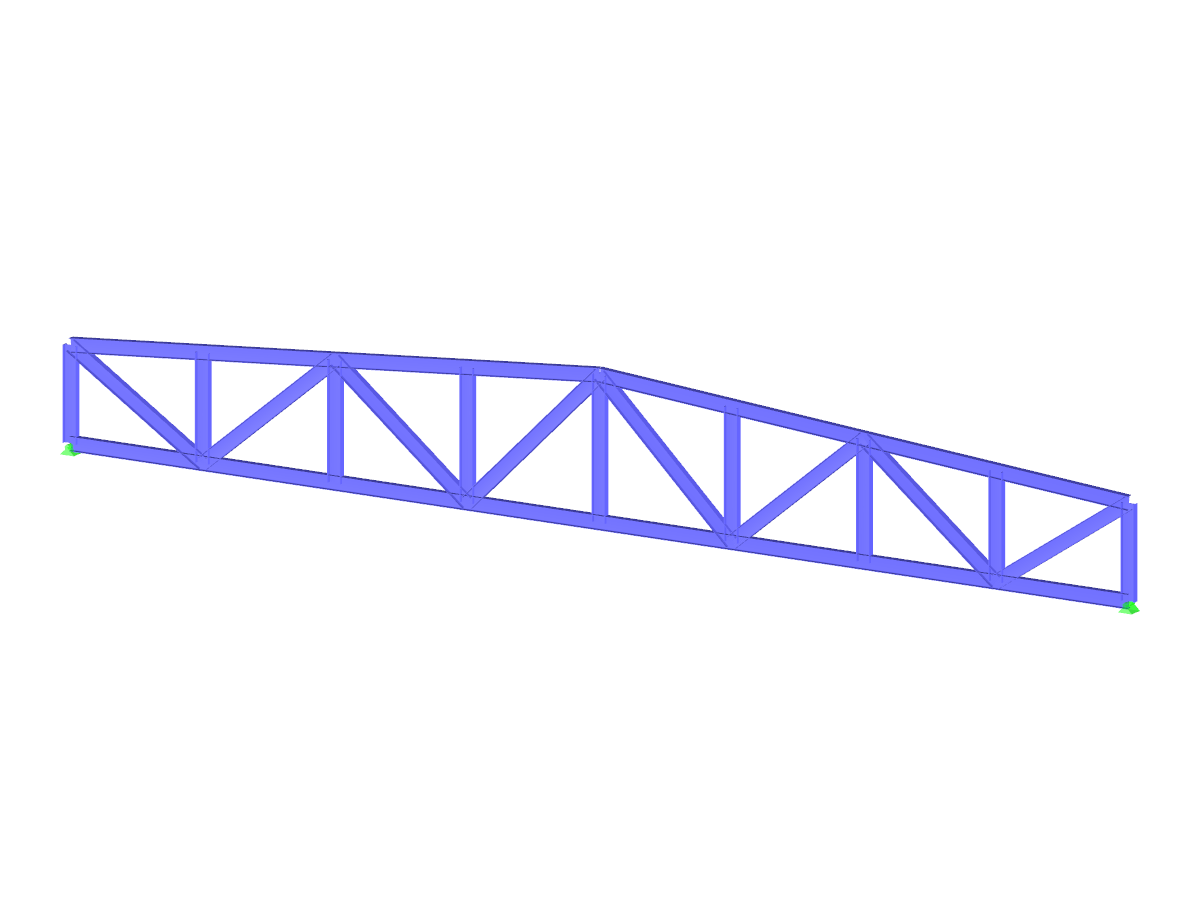

Truss Girder
3D Model
Specifications
| Number of Nodes | 18 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Load Cases | 1 |
| Total Weight | 4.283 t |
| Dimensions (Metric) | 24.500 x 0.500 x 3.250 m |
| Dimensions (Imperial) | 80.38 x 1.64 x 10.66 feet |
| Program Version | 5.28.03 |
2024-03-09
015300
A truss is a member structure of which the members are subjected only to axial forces.

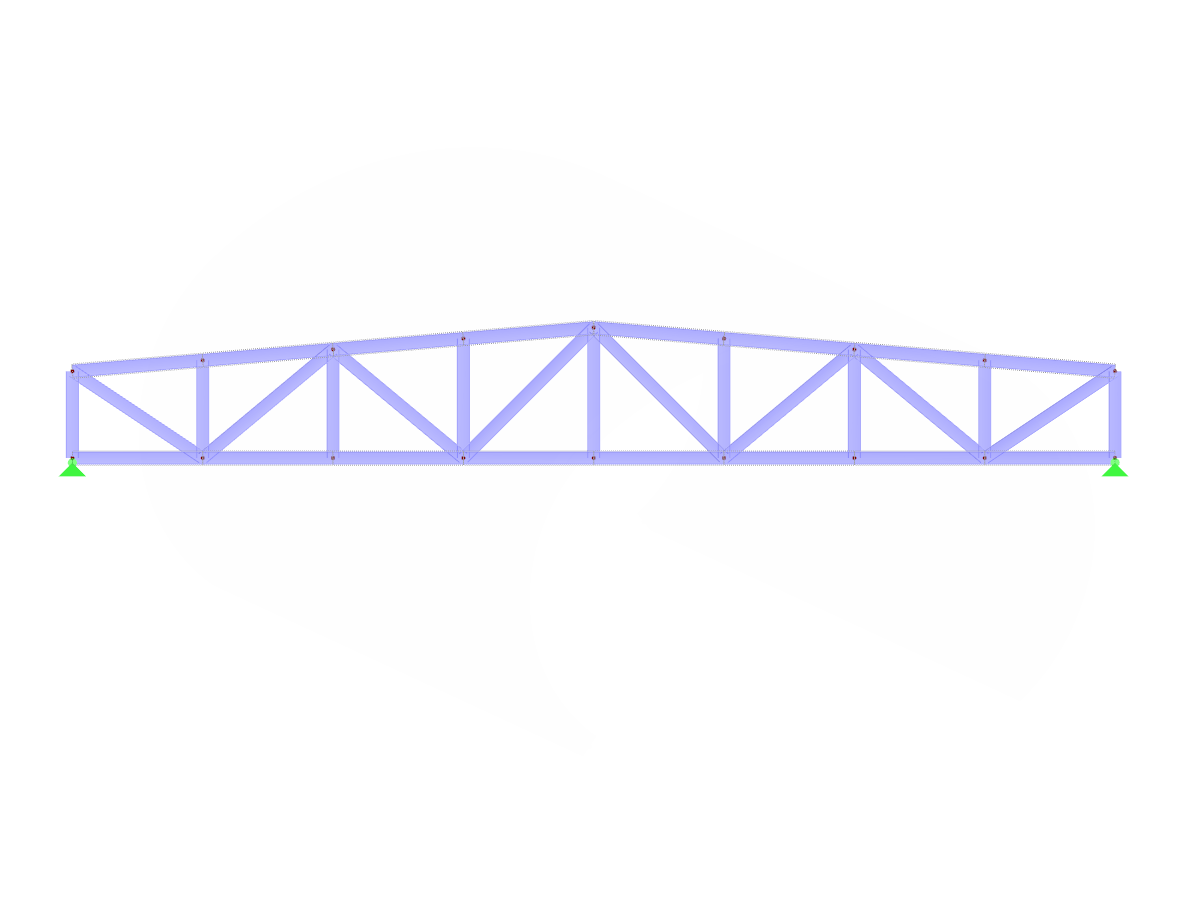

Truss
3D Model
Specifications
| Number of Nodes | 18 |
| Number of Lines | 33 |
| Number of Members | 33 |
| Number of Load Cases | 1 |
| Total Weight | 4.283 t |
| Dimensions (Metric) | 24.500 x 0.500 x 3.250 m |
| Dimensions (Imperial) | 80.38 x 1.64 x 10.66 feet |
| Program Version | 5.28.03 |
