2024-05-30
015974
Surfaces with Nodal Supports
Used in
3D Model
Specifications
| Number of Nodes | 10 |
| Number of Lines | 8 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 2.500 x 2.050 x 0.600 m |
| Dimensions (Imperial) | 8.2 x 6.73 x 1.97 feet |
| Program Version | 5.23.02 |
2024-05-30
010419

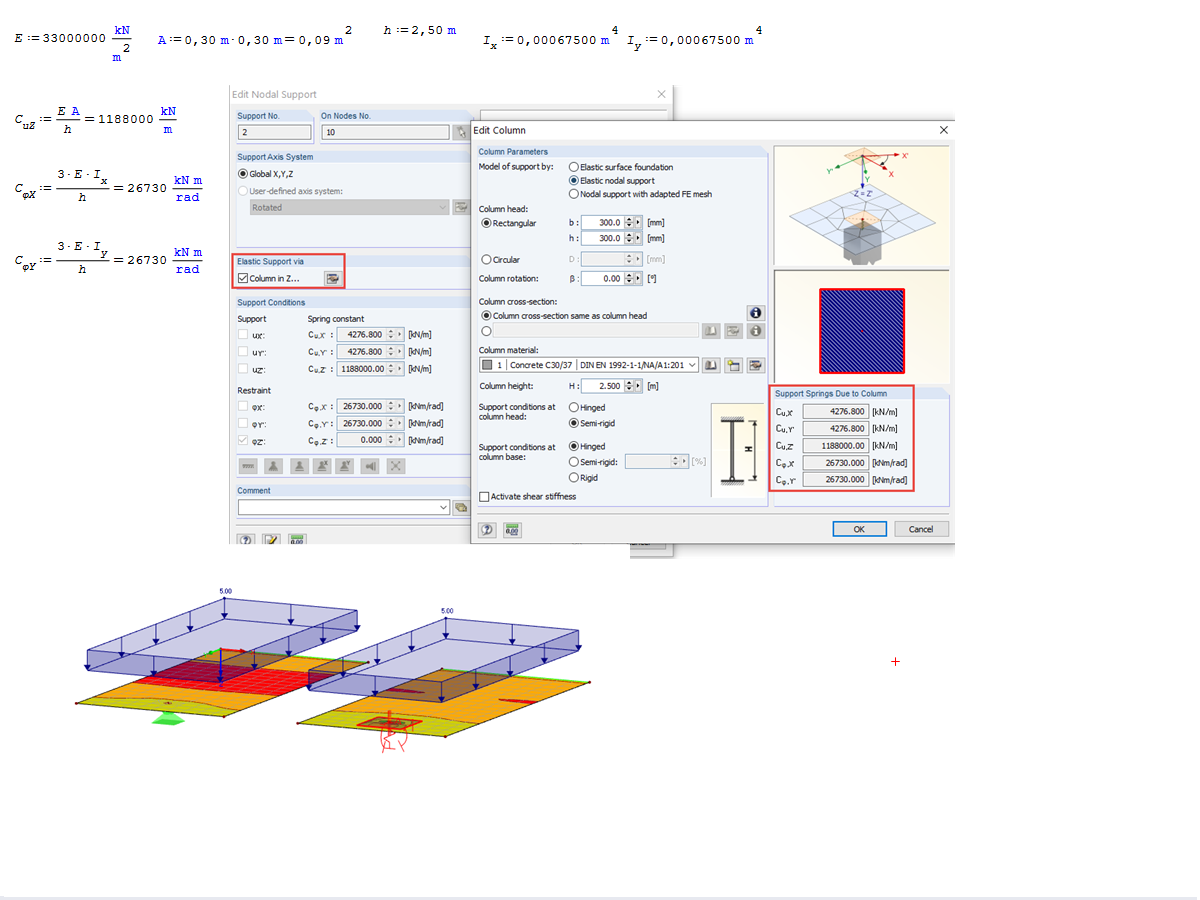

Calculation of Column Springs
Used in
3D Model
Specifications
| Number of Nodes | 10 |
| Number of Lines | 8 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 2.500 x 2.050 x 0.600 m |
| Dimensions (Imperial) | 8.2 x 6.73 x 1.97 feet |
| Program Version | 5.23.02 |
