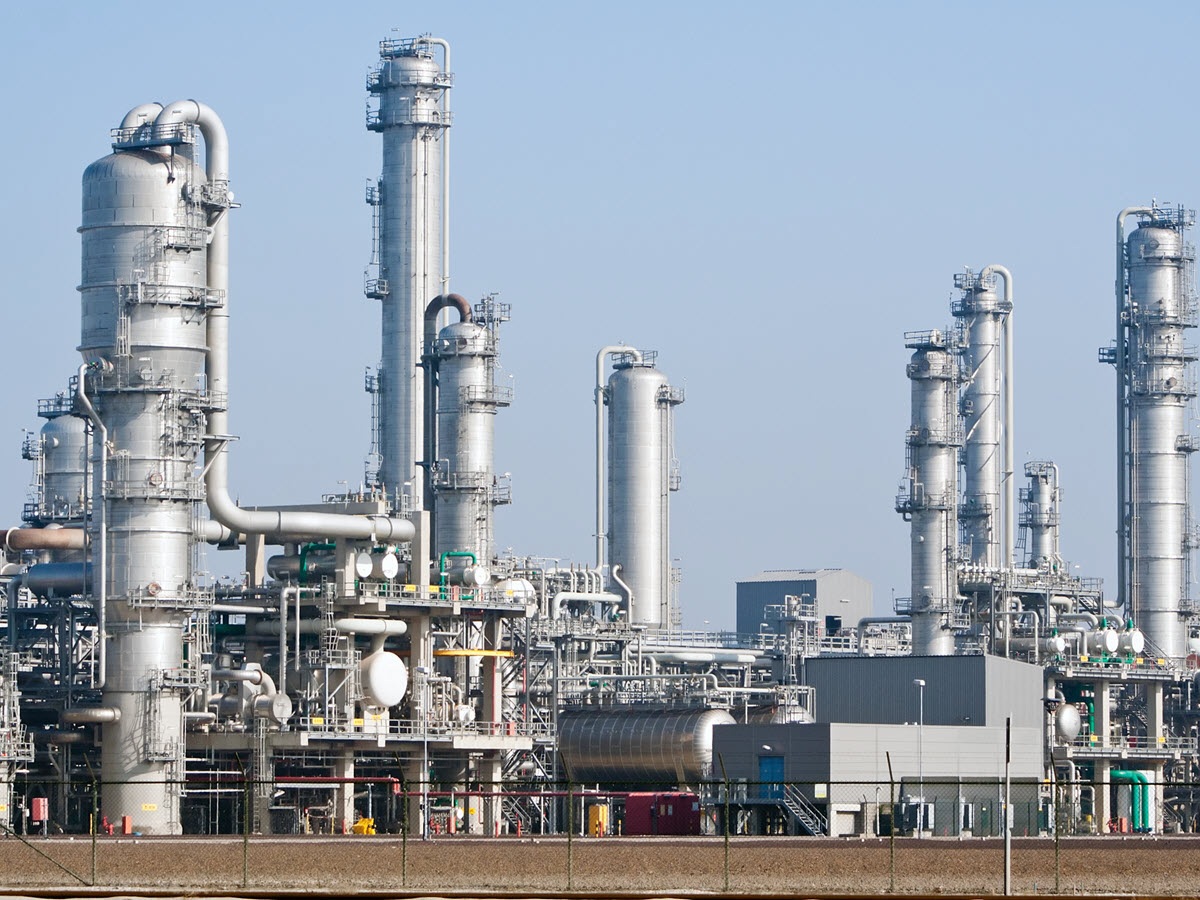

Solution Process Manufacturing Plants 1
3D Model
Specifications
| Number of Nodes | 5021 |
| Number of Lines | 10422 |
| Number of Members | 8909 |
| Number of Surfaces | 809 |
| Number of Load Cases | 8 |
| Total Weight | 538.495 tons |
| Dimensions (Metric) | 51.610 x 22.050 x 28.150 m |
| Dimensions (Imperial) | 169.32 x 72.34 x 92.36 feet |
| Program Version | 4.06.02 |
3D model of steel scaffolding that is used in industrial construction, for example. The model includes loads and load combinations.
Industrial Structure of Steel Scaffolding
3D Model
Specifications
| Number of Nodes | 68 |
| Number of Members | 115 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 66 |
| Number of Result Combinations | 2 |
| Total Weight | 21.876 tons |
| Dimensions (Metric) | 10.500 x 10.500 x 12.250 m |
| Dimensions (Imperial) | 34.45 x 34.45 x 40.19 feet |
| Program Version | 8.23.00 |
Solutions Power Plants 1
3D Model
Specifications
| Number of Nodes | 68 |
| Number of Members | 114 |
| Number of Load Cases | 88 |
| Number of Result Combinations | 3 |
| Total Weight | 8.903 tons |
| Dimensions (Metric) | 14.195 x 5.195 x 8.098 m |
| Dimensions (Imperial) | 46.57 x 17.04 x 26.57 feet |
| Program Version | 8.04.00 |
Solutions Power Plants 1
3D Model
Specifications
| Number of Nodes | 9 |
| Number of Lines | 3 |
| Number of Surfaces | 1 |
| Number of Load Cases | 1 |
| Total Weight | 1283.665 tons |
| Dimensions (Metric) | 54.813 x 54.648 x 54.072 m |
| Dimensions (Imperial) | 179.83 x 179.29 x 177.4 feet |
| Program Version | 5.04.00 |
