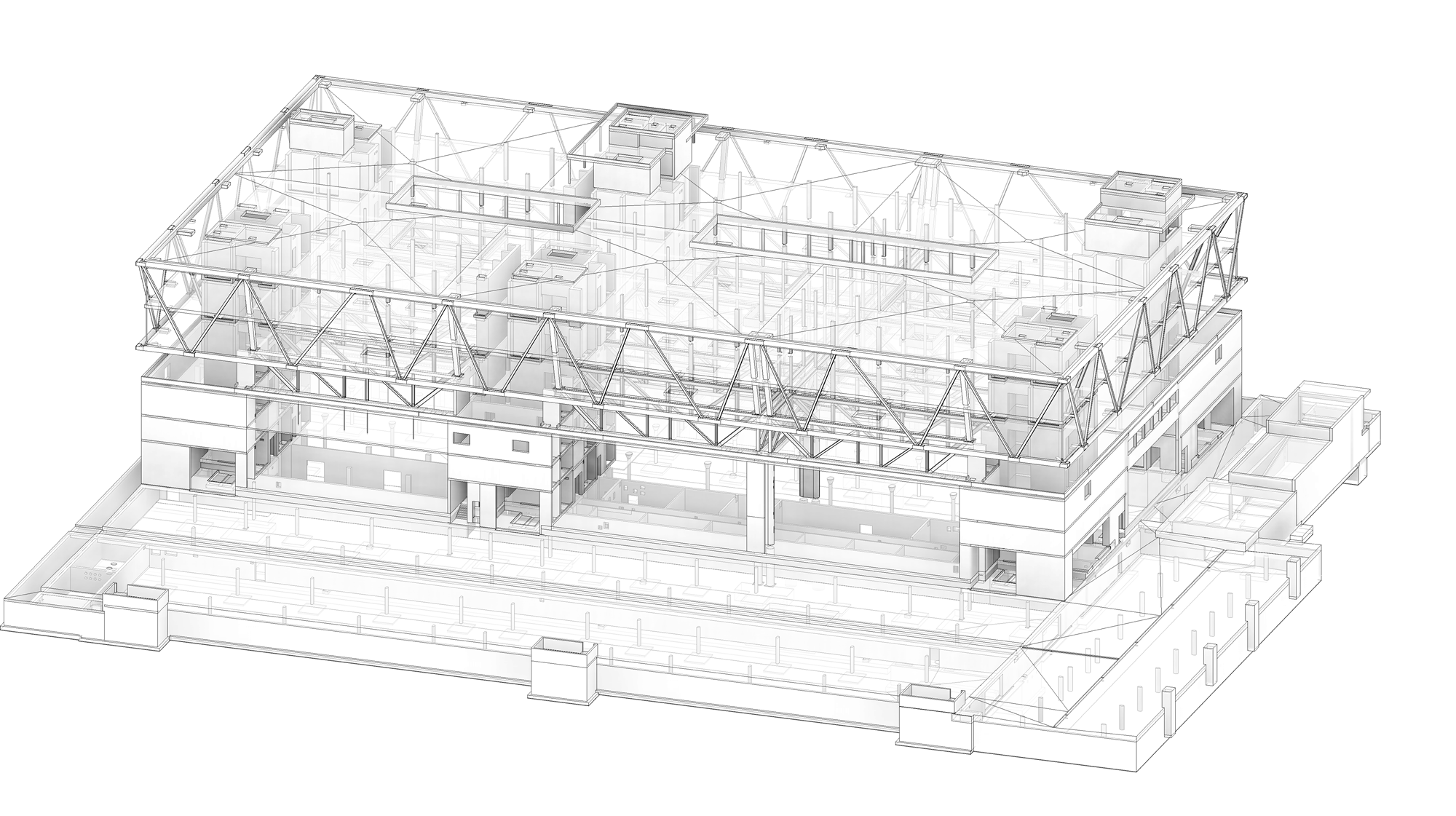

Entire Building Model in Revit (© Gruner AG)
2024-05-30
020822

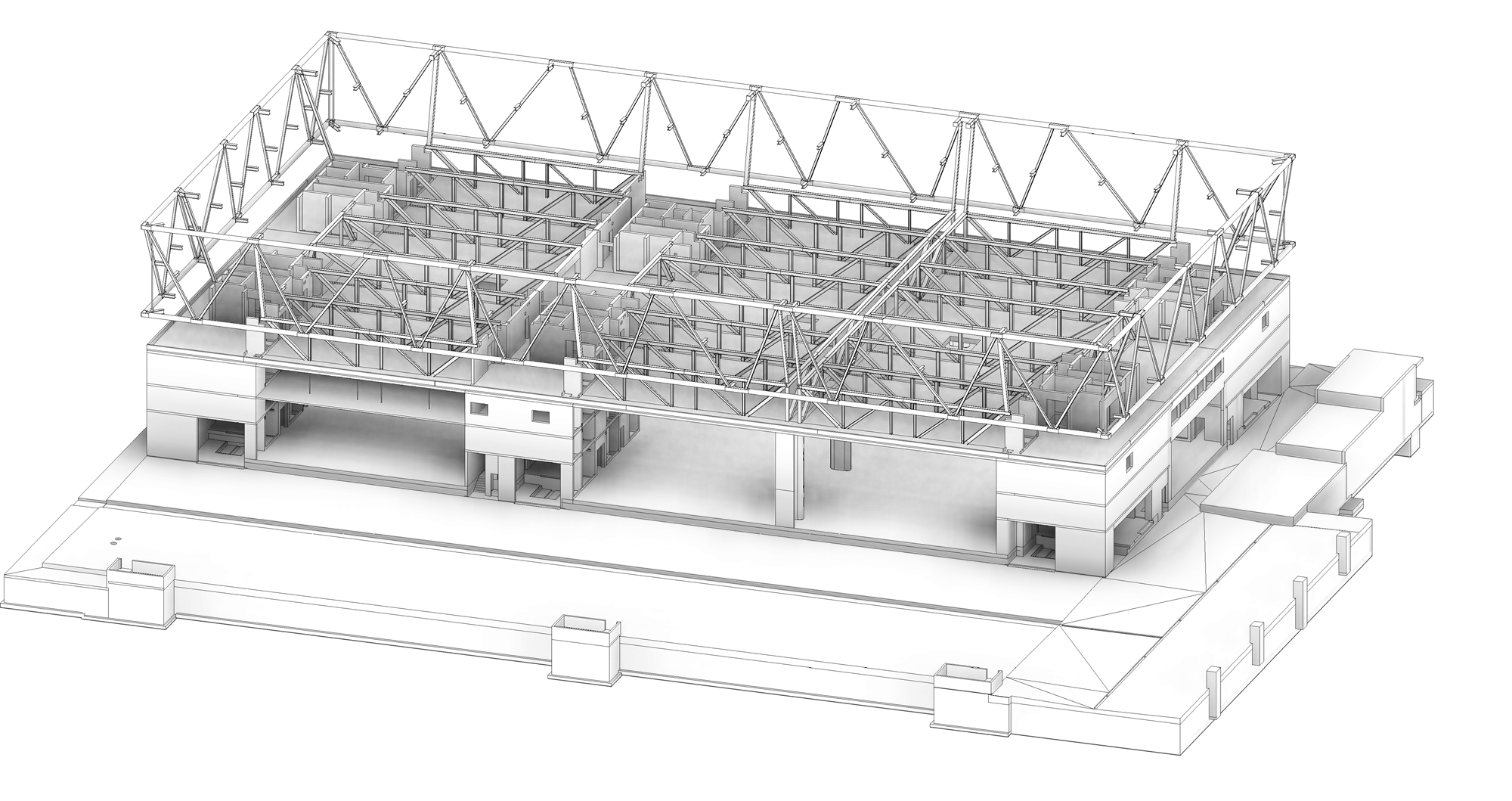

Steel Structure of Outer Facade Steel Trusses in the Two Upper Floors (© Gruner AG)
2024-05-30
020817
RSTAB Model of Approximately 33-Foot-High Steel Facade Trusses (© Gruner AG)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 416 |
| Number of Members | 476 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 23 |
| Number of Result Combinations | 2 |
| Total Weight | 279.988 t |
| Dimensions (Metric) | 100.800 x 55.500 x 9.780 m |
| Dimensions (Imperial) | 330.71 x 182.09 x 32.09 feet |
| Program Version | 8.25.01 |
2024-05-30
020820

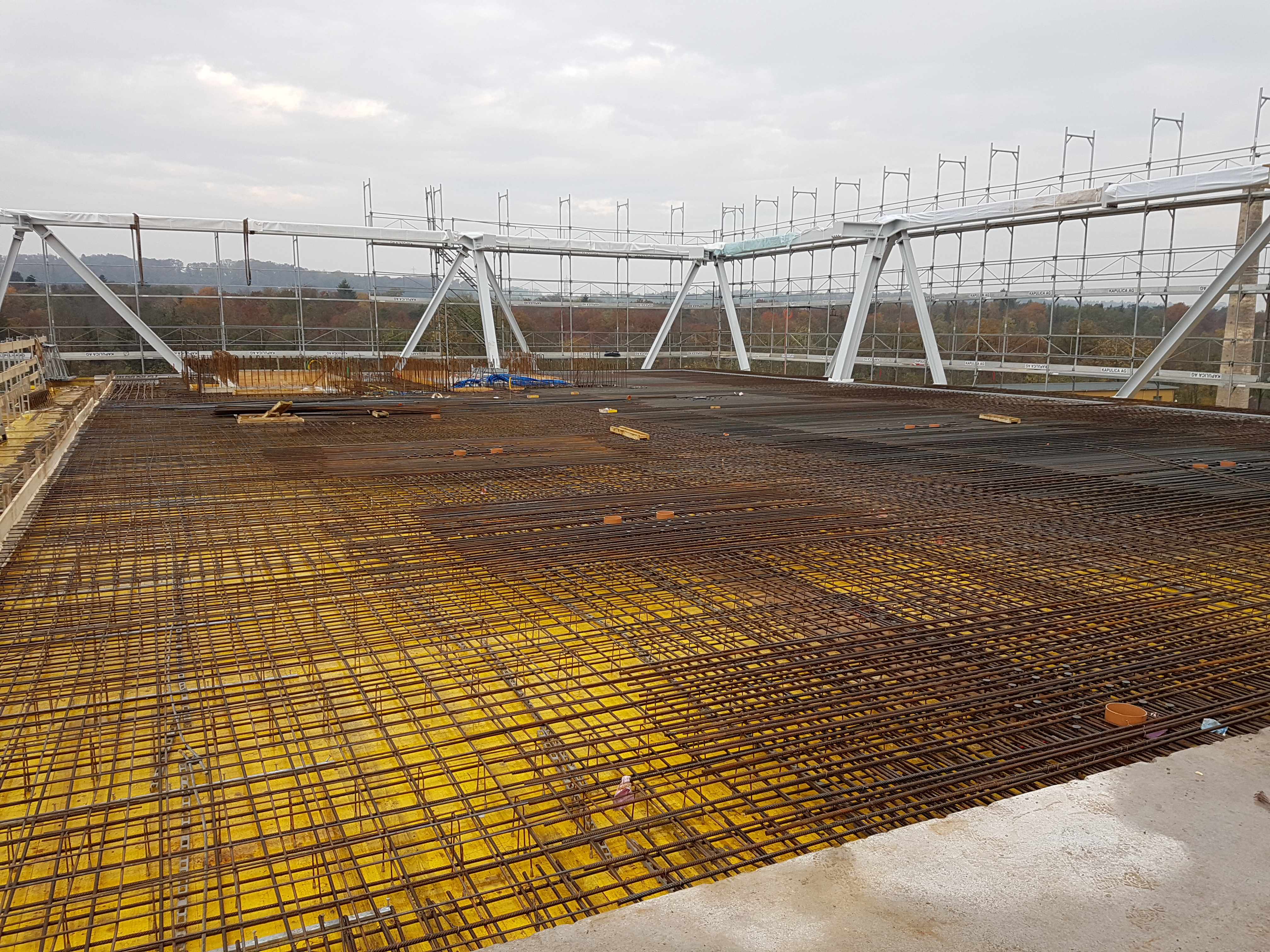

Facade Trusses and Connected Reinforced Concrete Slab During Construction (© Gruner AG)
2024-05-30
020900
Truss Joint with Bracket for Reinforced Concrete Slab (© Gruner AG)
2024-05-30
020901
Truss Joint with Inclined Column (© Gruner AG)
