2024-05-30
020830

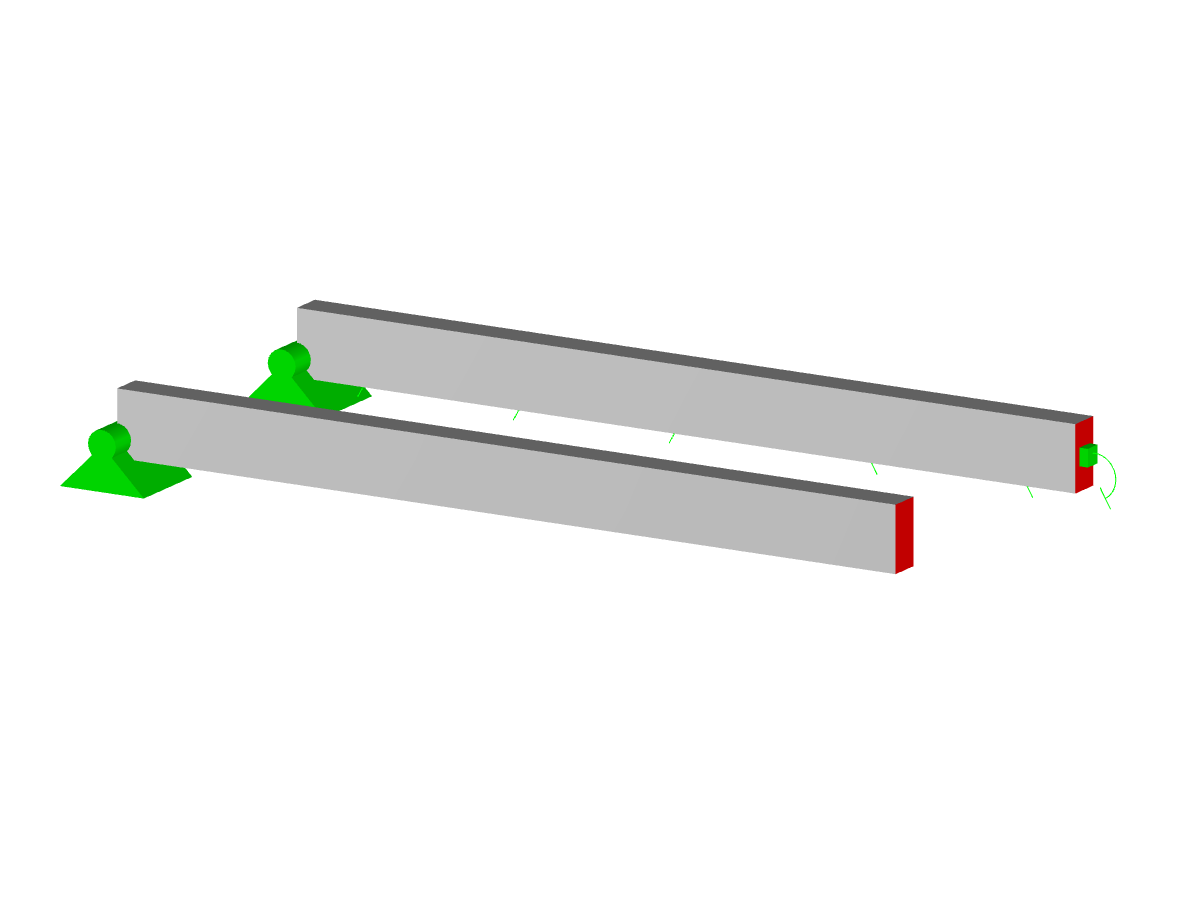

Beams
3D Model
Specifications
| Number of Nodes | 9 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 16.000 tons |
| Dimensions (Metric) | 10,000 x 0,000 x 4,000 m |
| Dimensions (Imperial) | 32.81 x 0 x 13.12 feet |

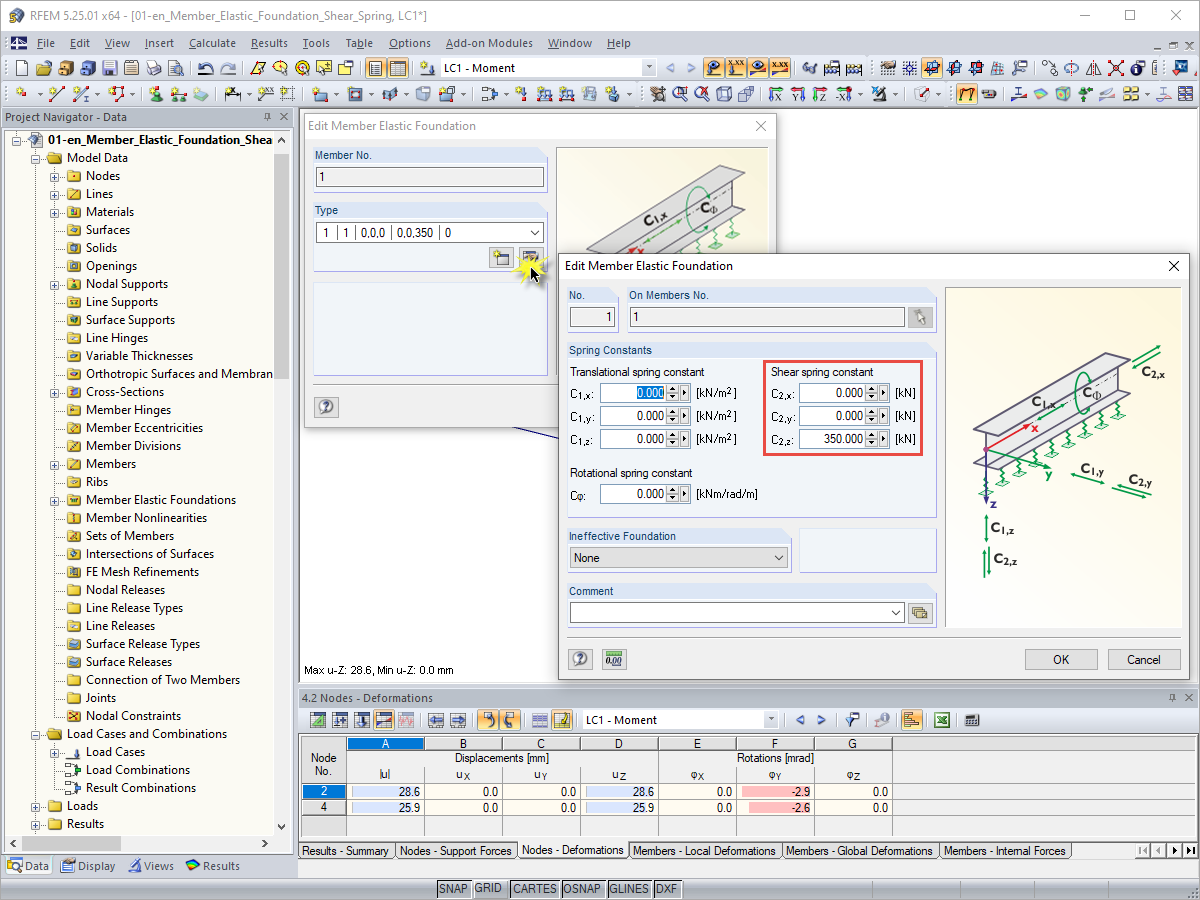

Input of Shear Springs
3D Model
Specifications
| Number of Nodes | 9 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 16.000 tons |
| Dimensions (Metric) | 10,000 x 0,000 x 4,000 m |
| Dimensions (Imperial) | 32.81 x 0 x 13.12 feet |
