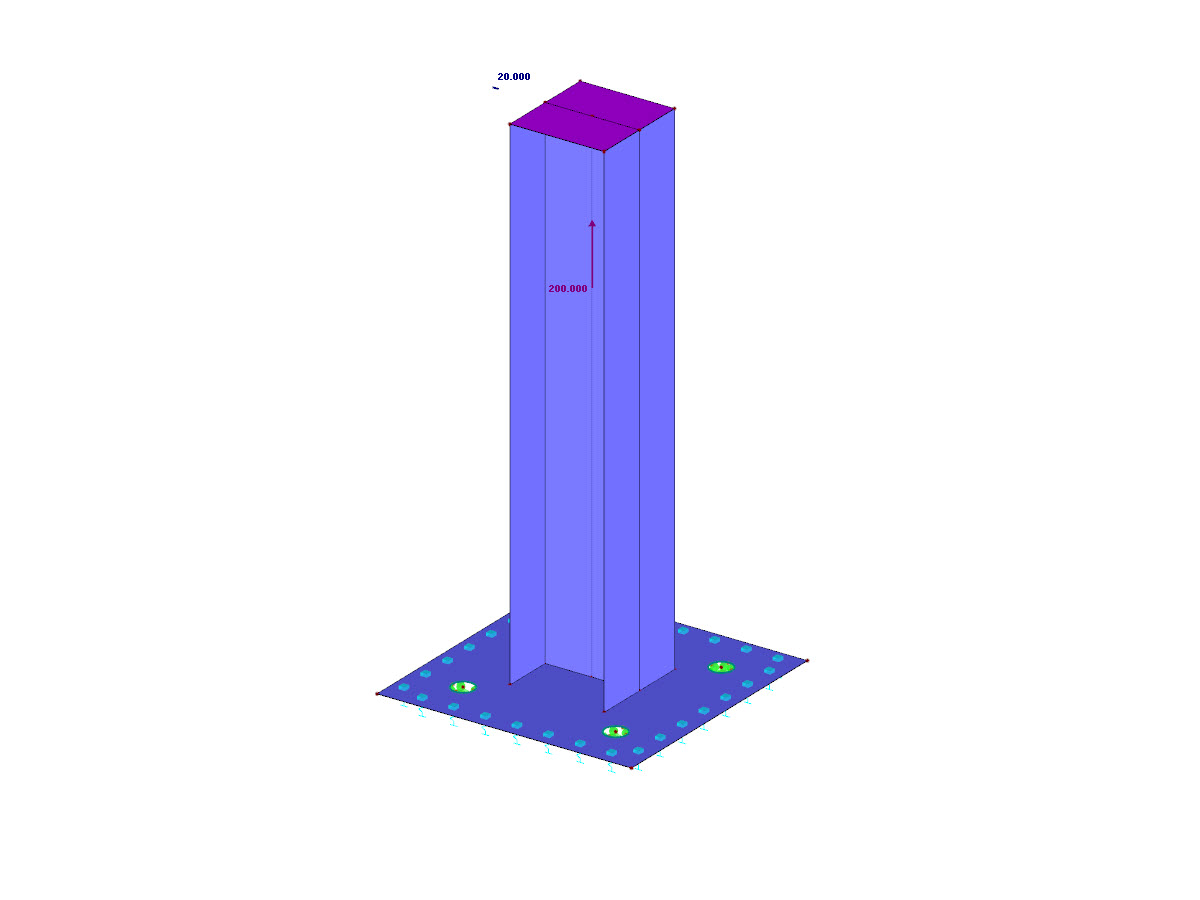

Steel Model Consisting of Surfaces, Base Plate, and End Plate
Steel Model
3D Model
Specifications
| Number of Nodes | 34 |
| Number of Lines | 27 |
| Number of Members | 1 |
| Number of Surfaces | 7 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 1 |
| Total Weight | 0,156 t |
| Dimensions (Metric) | 0.500 x 0.500 x 1.000 m |
| Dimensions (Imperial) | 1.64 x 1.64 x 3.28 feet |
| Program Version | 5.21.02 |
