FAQ 005045 | Standard Orientation of Member Results

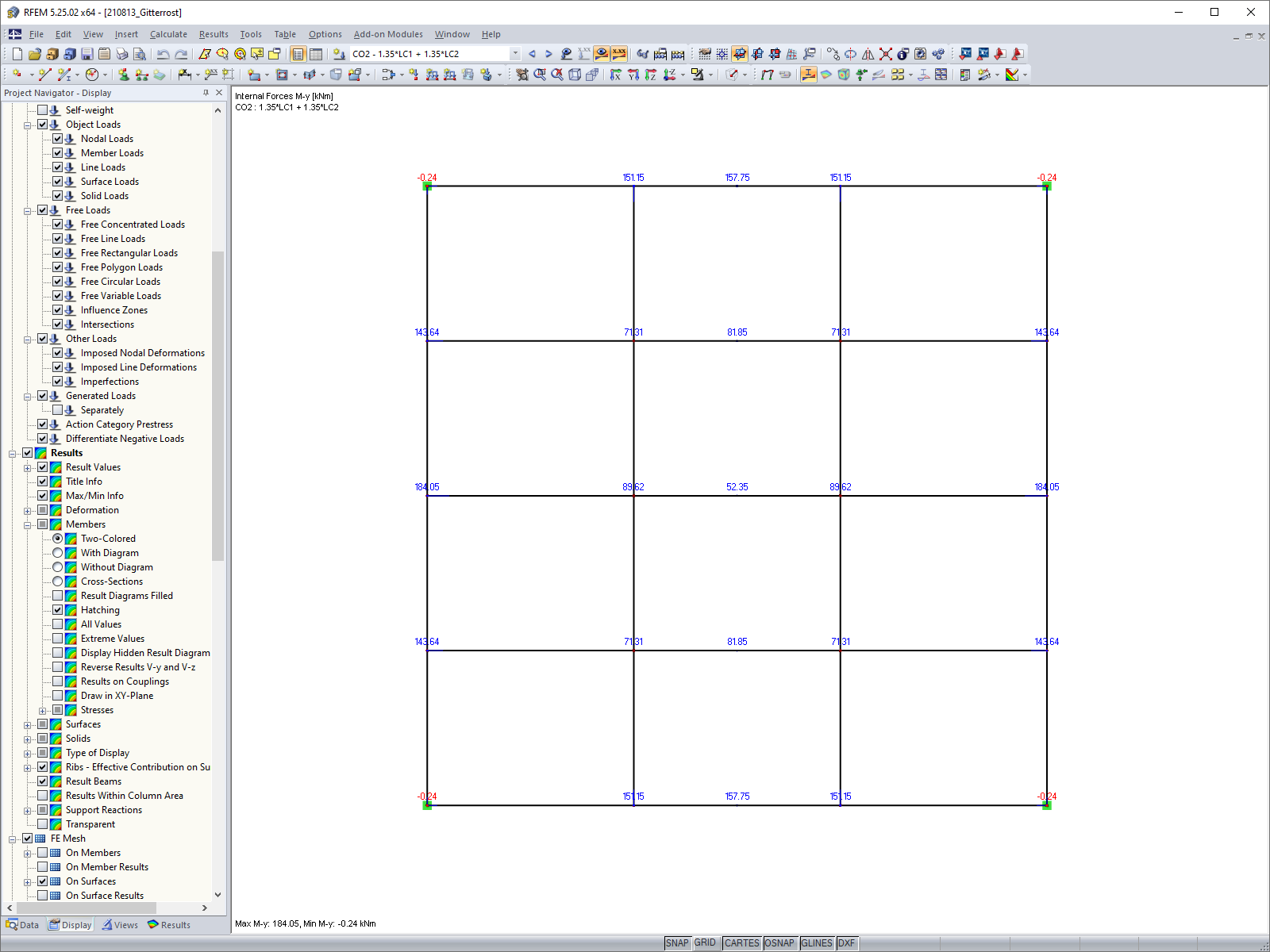

FAQ 005045 | I would like to evaluate the member results in the top view. Is it possible to get the results drawn in the XY plane?
Used in
3D Model
Specifications
| Number of Nodes | 20 |
| Number of Lines | 31 |
| Number of Members | 31 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 4 |
| Total Weight | 13.975 tons |
| Dimensions (Metric) | 10.000 x 0.000 x 10.000 m |
| Dimensions (Imperial) | 32.81 x 0 x 32.81 feet |
