Eigenvalue Method
Eigenvalue method

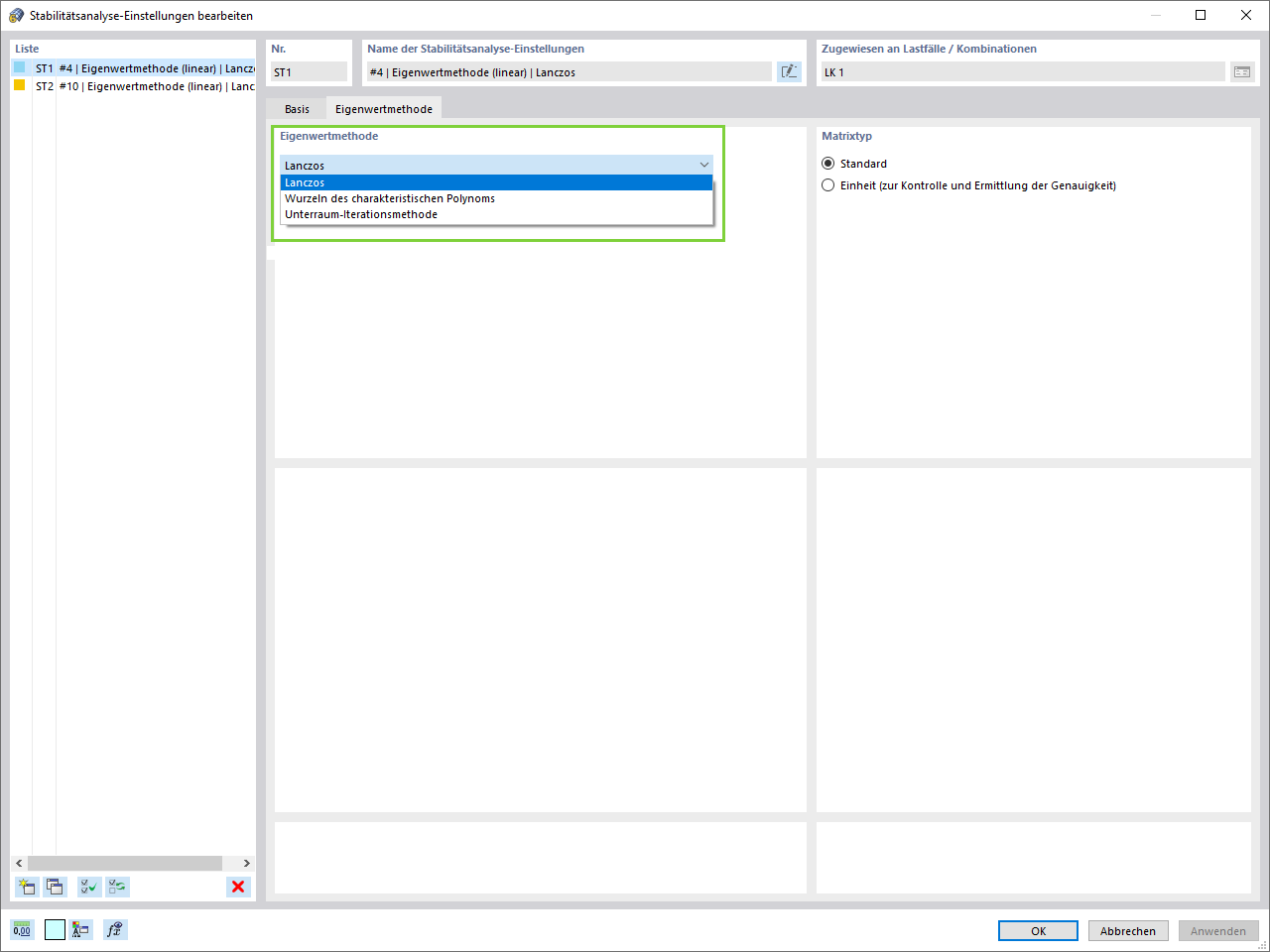

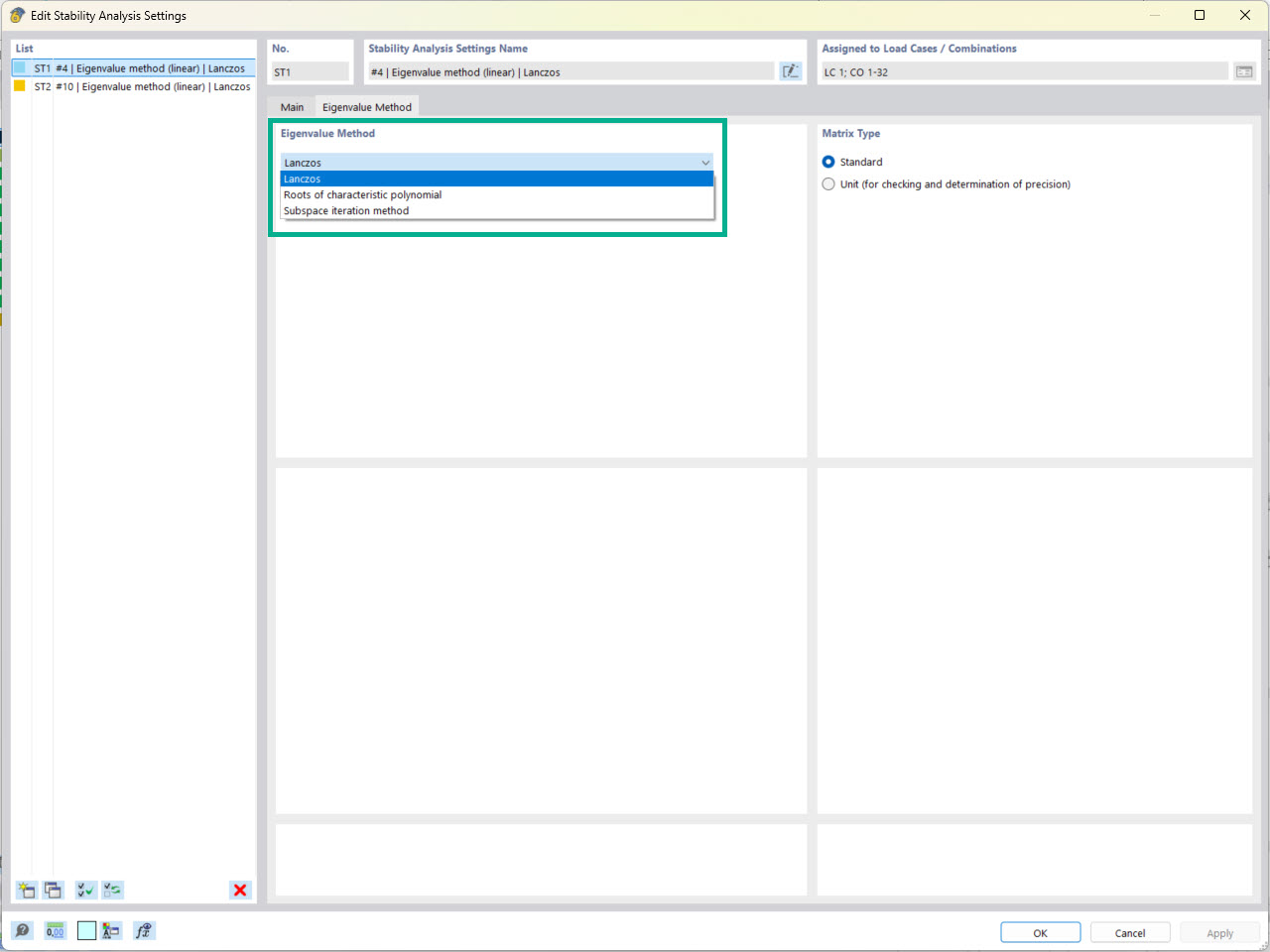

The image shows the input dialog box for selecting the eigenvalue method for stability analysis in a software environment. Various methods for determining eigenvalues are displayed in the selection box and can be selected by the user. The correct method is crucial for efficient and accurate analysis of structure stability. The options displayed support engineers in creating precise structural simulations.
2024-05-30
022983
Stability Analysis Results
Used in
3D Model
Specifications
| Number of Nodes | 71 |
| Number of Lines | 116 |
| Number of Members | 116 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 11 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 0 |
| Total Weight | 17.474 tons |
| Dimensions (Metric) | 23,000 x 14,419 x 50,000 m |
| Dimensions (Imperial) | 75.46 x 47.31 x 164.04 feet |
