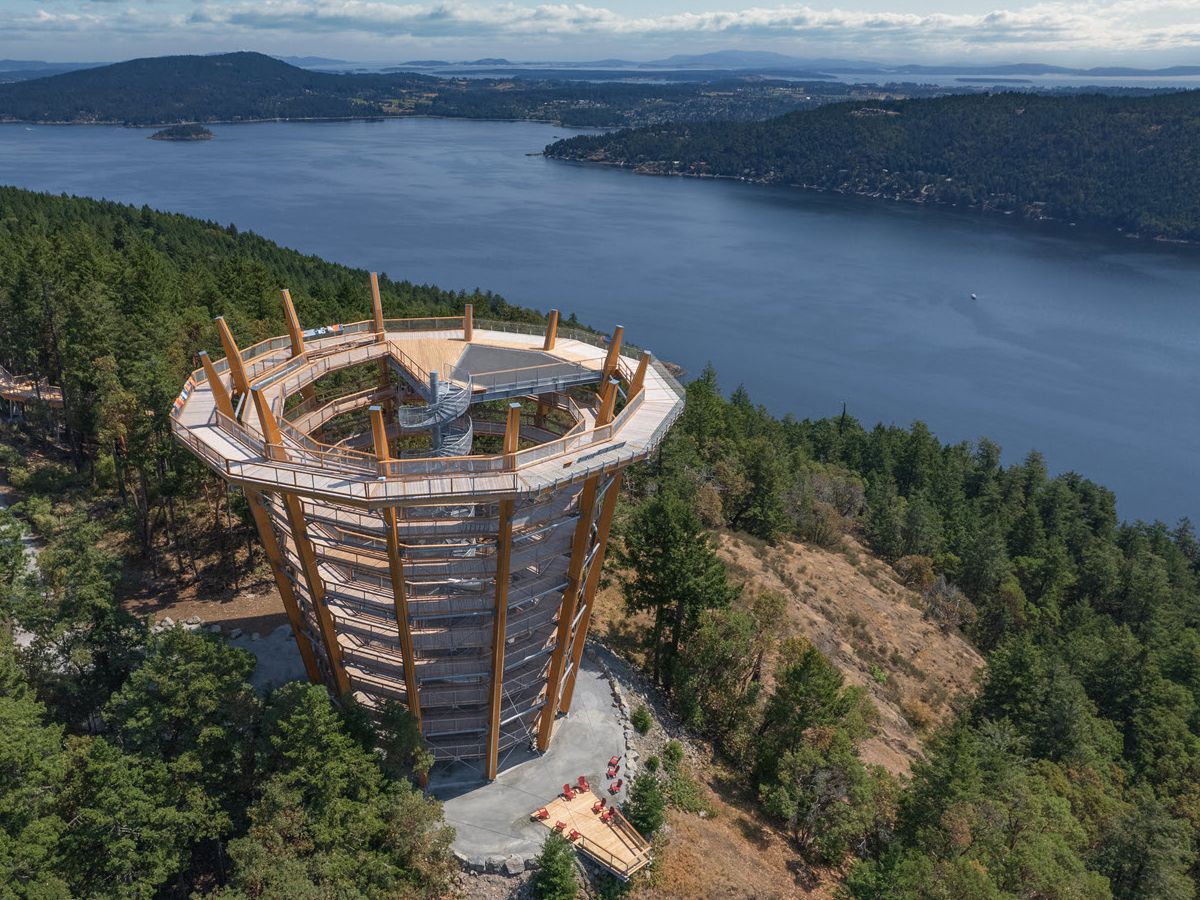

Malahat SkyWalk Lookout Tower (© Hamish Hamilton)
2024-05-30
023037

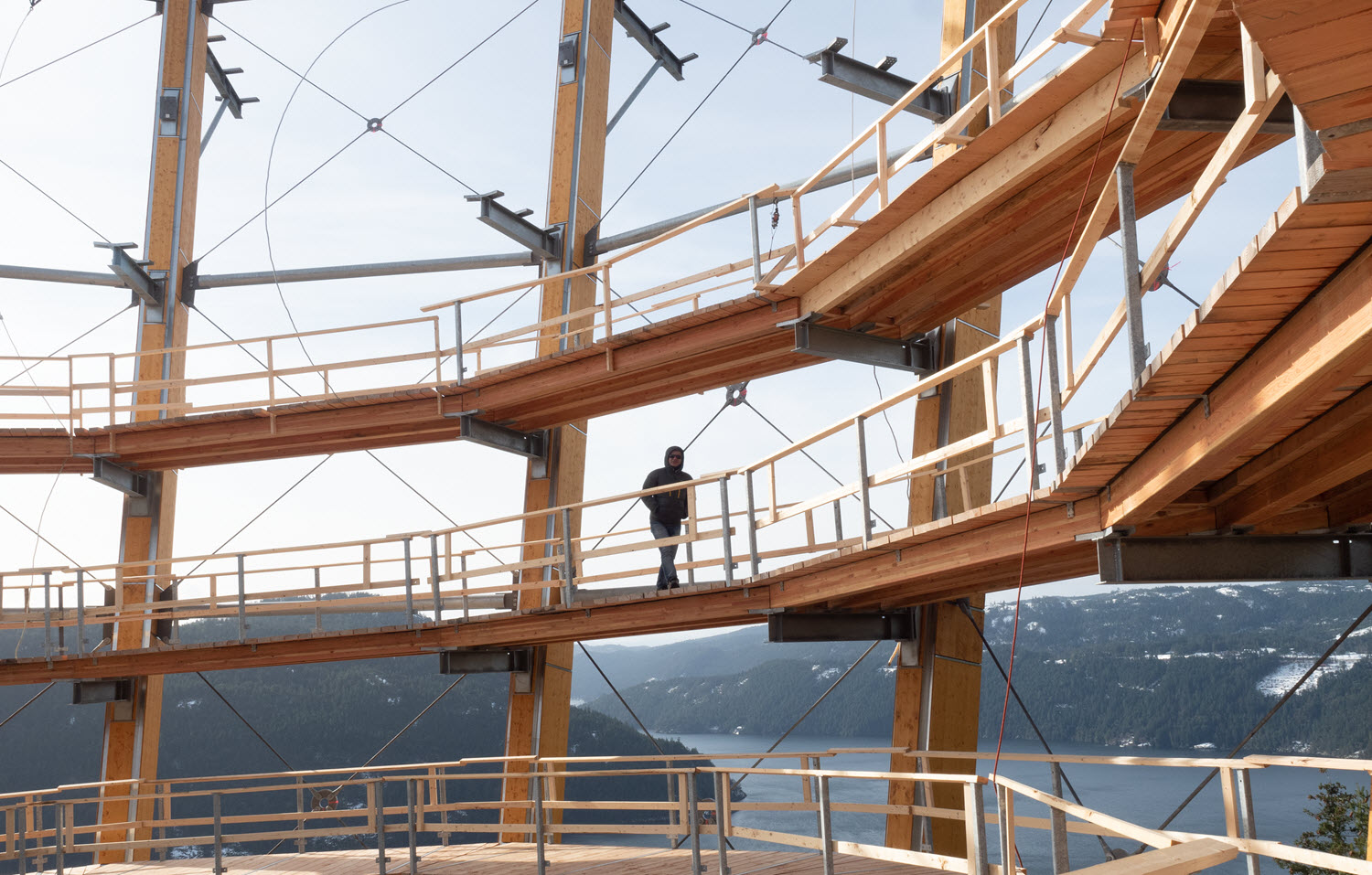

Inside Viewing Tower (© Aspect Structural Engineers)
2024-05-30
023041

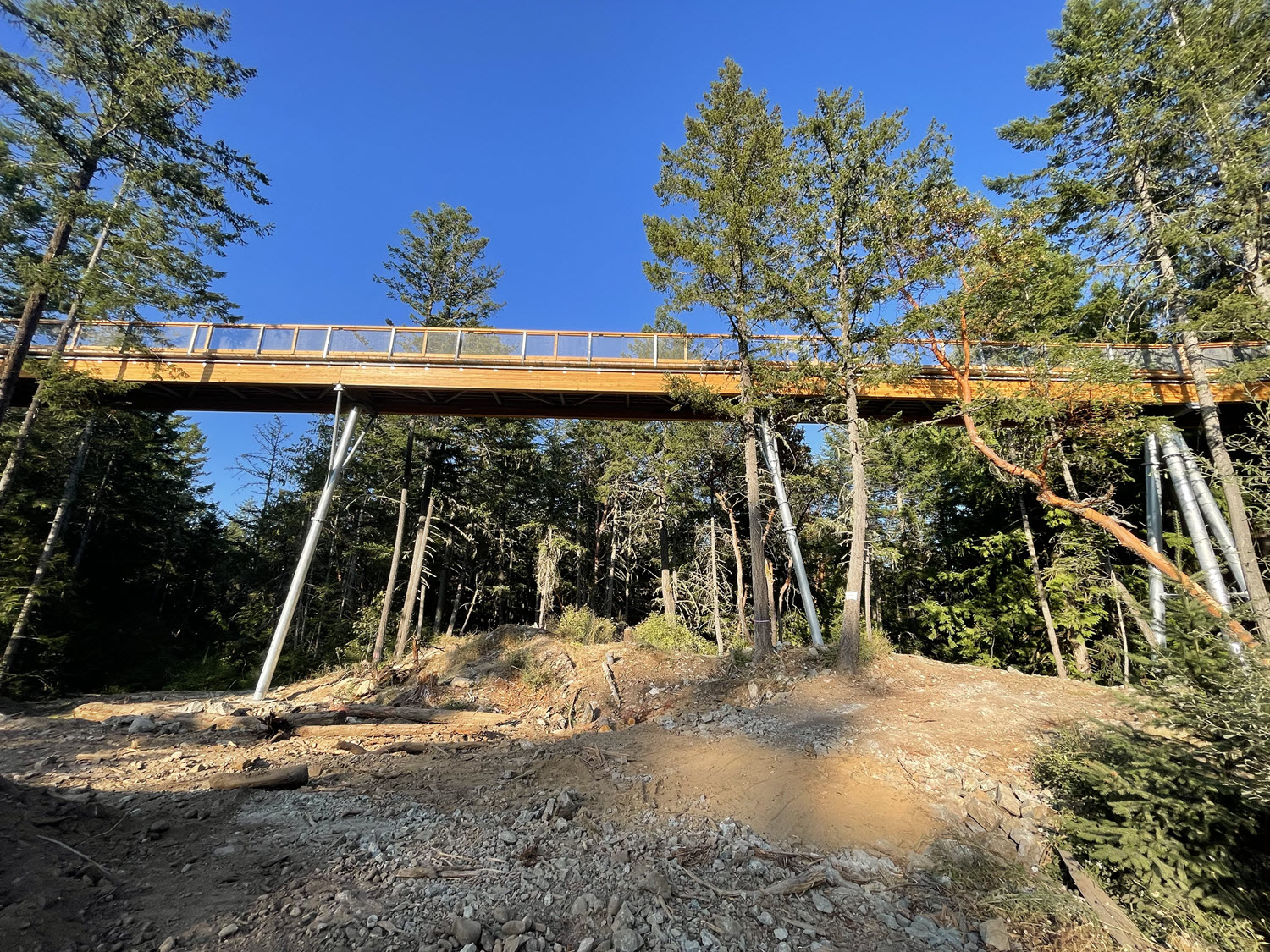

Malahat SkyWalk Walkway (© Aspect Structural Engineers)
2024-05-30
023025
Malahat SkyWalk Lookout Tower, 3D RFEM Model (© Aspect Structural Engineers)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1177 |
| Number of Lines | 2300 |
| Number of Members | 1930 |
| Number of Load Cases | 19 |
| Number of Load Combinations | 36 |
| Number of Result Combinations | 9 |
| Total Weight | 172.174 tons |
| Dimensions (Metric) | 37.614 x 37.614 x 35.372 m |
| Dimensions (Imperial) | 123.41 x 123.41 x 116.05 feet |
| Program Version | 5.26.01 |
2024-05-30
023026
Lookout Tower Stability Analysis in RFEM (© Aspect Structural Engineers)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1177 |
| Number of Lines | 2300 |
| Number of Members | 1930 |
| Number of Load Cases | 19 |
| Number of Load Combinations | 36 |
| Number of Result Combinations | 9 |
| Total Weight | 172.174 tons |
| Dimensions (Metric) | 37.614 x 37.614 x 35.372 m |
| Dimensions (Imperial) | 123.41 x 123.41 x 116.05 feet |
| Program Version | 5.26.01 |
2024-05-30
023028

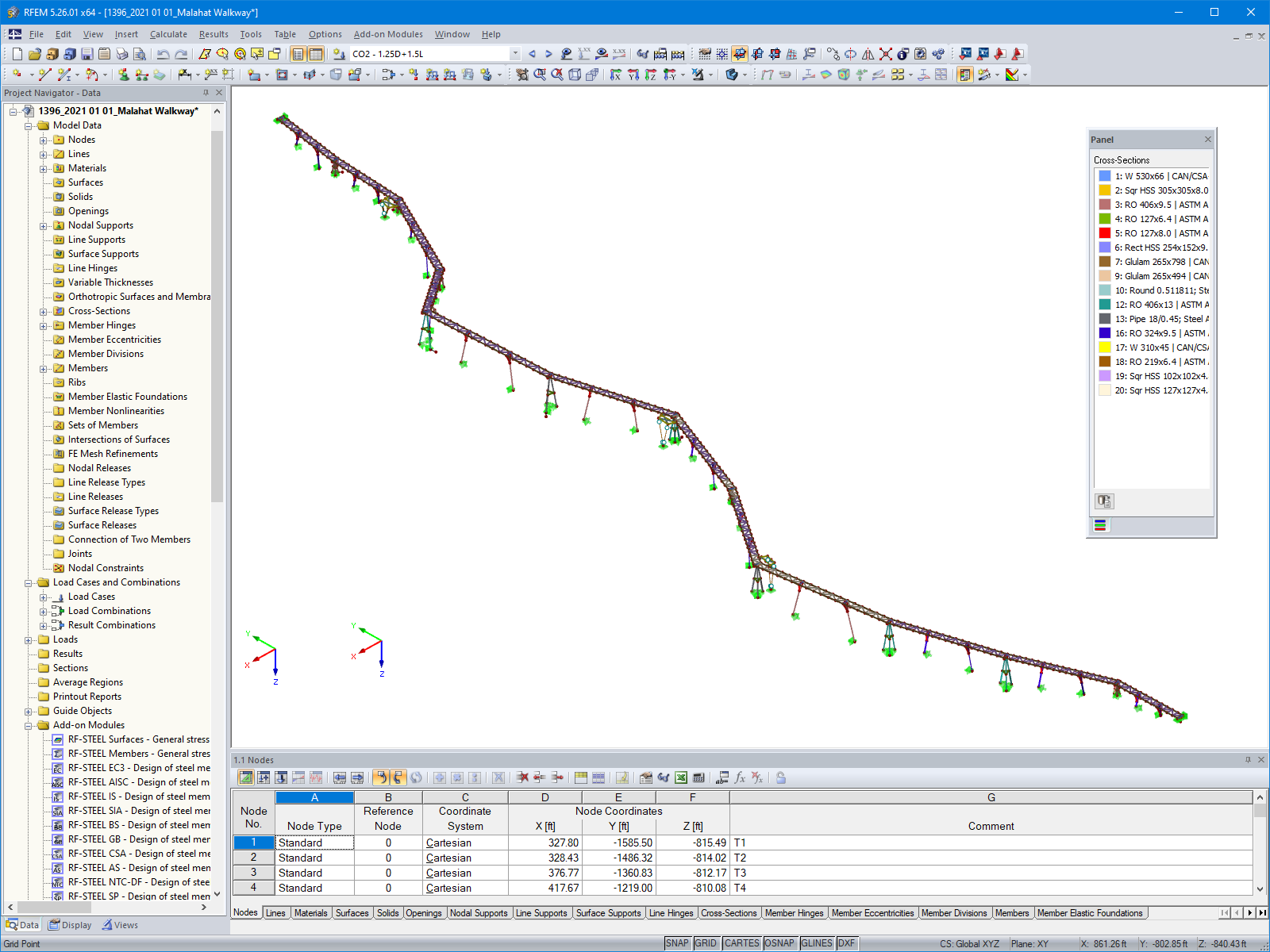

Malahat SkyWalk Walkway, 3D RFEM Model (© Aspect Structural Engineers)
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 684 |
| Number of Lines | 1272 |
| Number of Members | 1229 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 6 |
| Number of Result Combinations | 6 |
| Total Weight | 183.226 tons |
| Dimensions (Metric) | 65.587 x 460.026 x 25.715 m |
| Dimensions (Imperial) | 215.18 x 1509.27 x 84.37 feet |
| Program Version | 5.26.01 |
