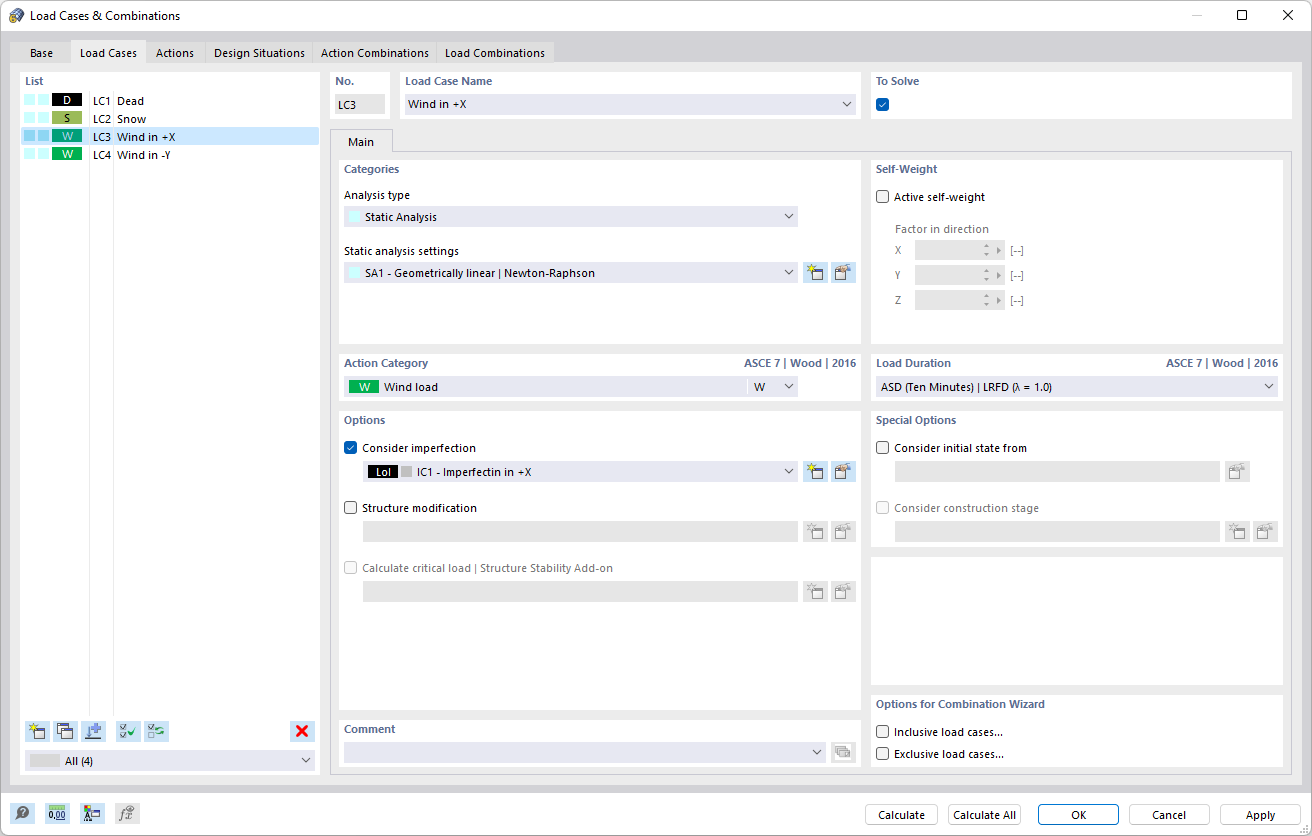

Dialog Box "Load Cases and Combinations", Tab "Load Cases"

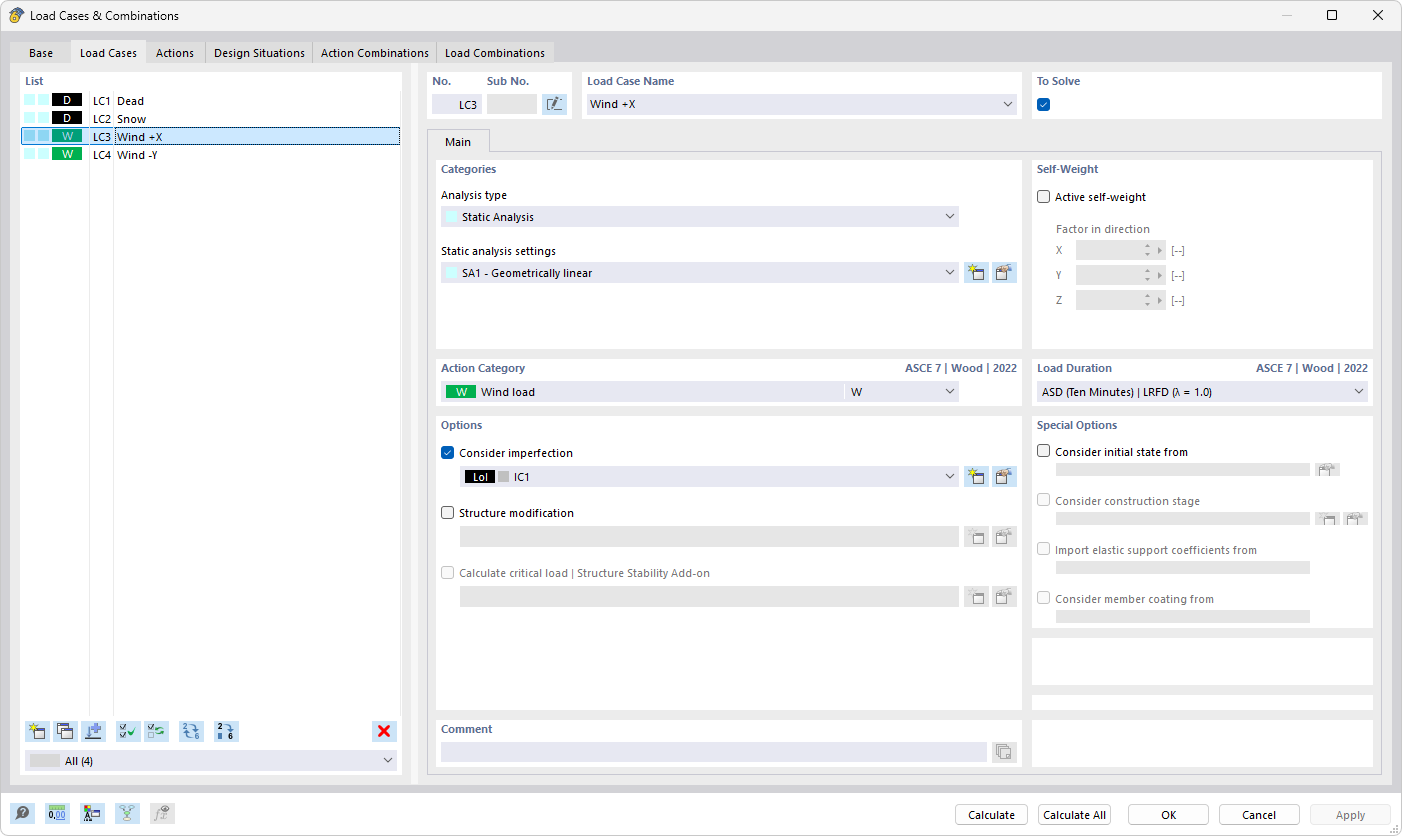

Dialog box "Load Cases and Combinations", tab "Load Cases"
The "Load Cases and Combinations" dialog box shows the "Load Cases" tab with several defined load cases. For the selected load case “Wind,” the analysis type “Structural Analysis” is set with the structural analysis settings “SA1 – First Order.” The “Consider Imperfection” option is activated, with the IC1 imperfection assigned to X. The “To Calculate” checkbox for the load case is checked.
