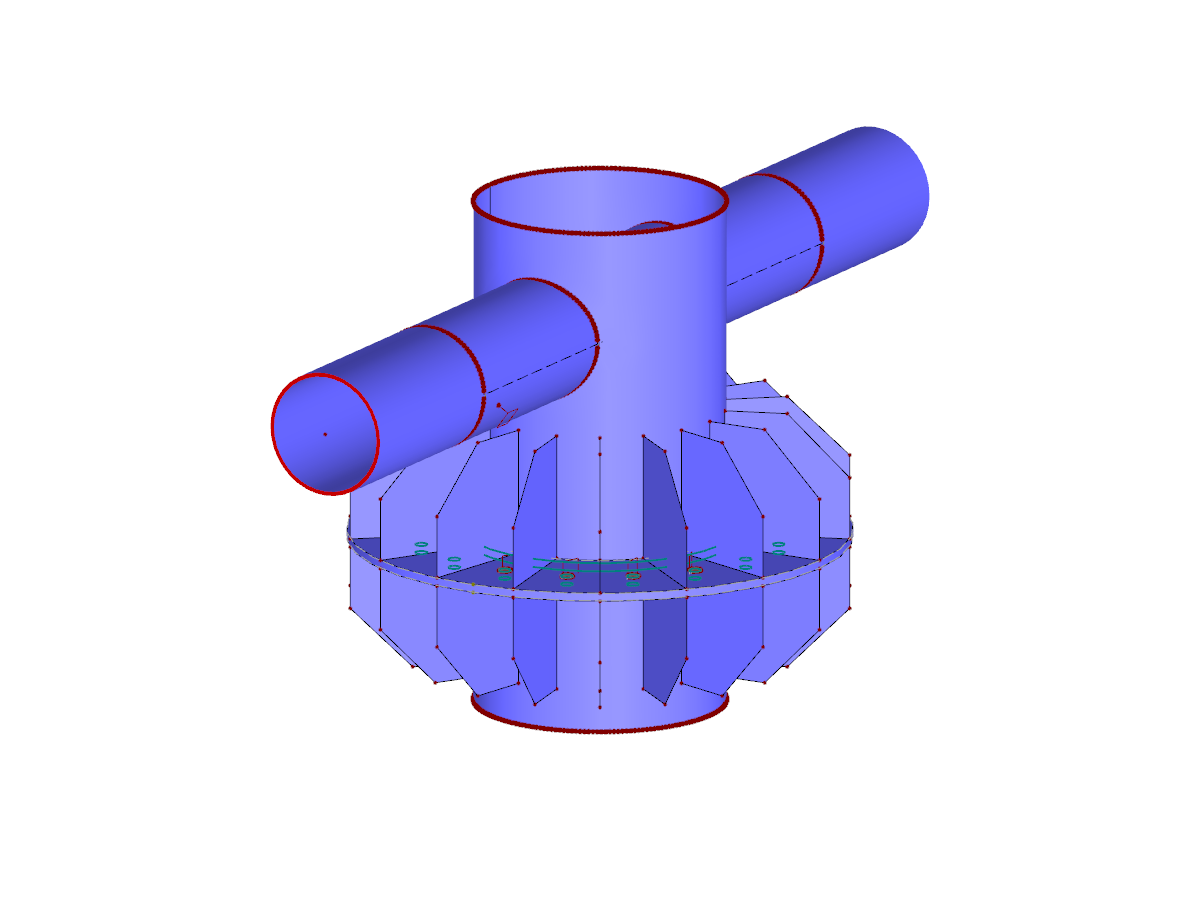

Connection for Column with T-shaped Circular Cross-Section
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 351 |
| Number of Lines | 270 |
| Number of Members | 21 |
| Number of Surfaces | 106 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Total Weight | 1.776 tons |
| Dimensions (Metric) | 2.193 x 2.600 x 1.716 m |
| Dimensions (Imperial) | 7.19 x 8.53 x 5.63 feet |
| Program Version | 5.18.01 |
