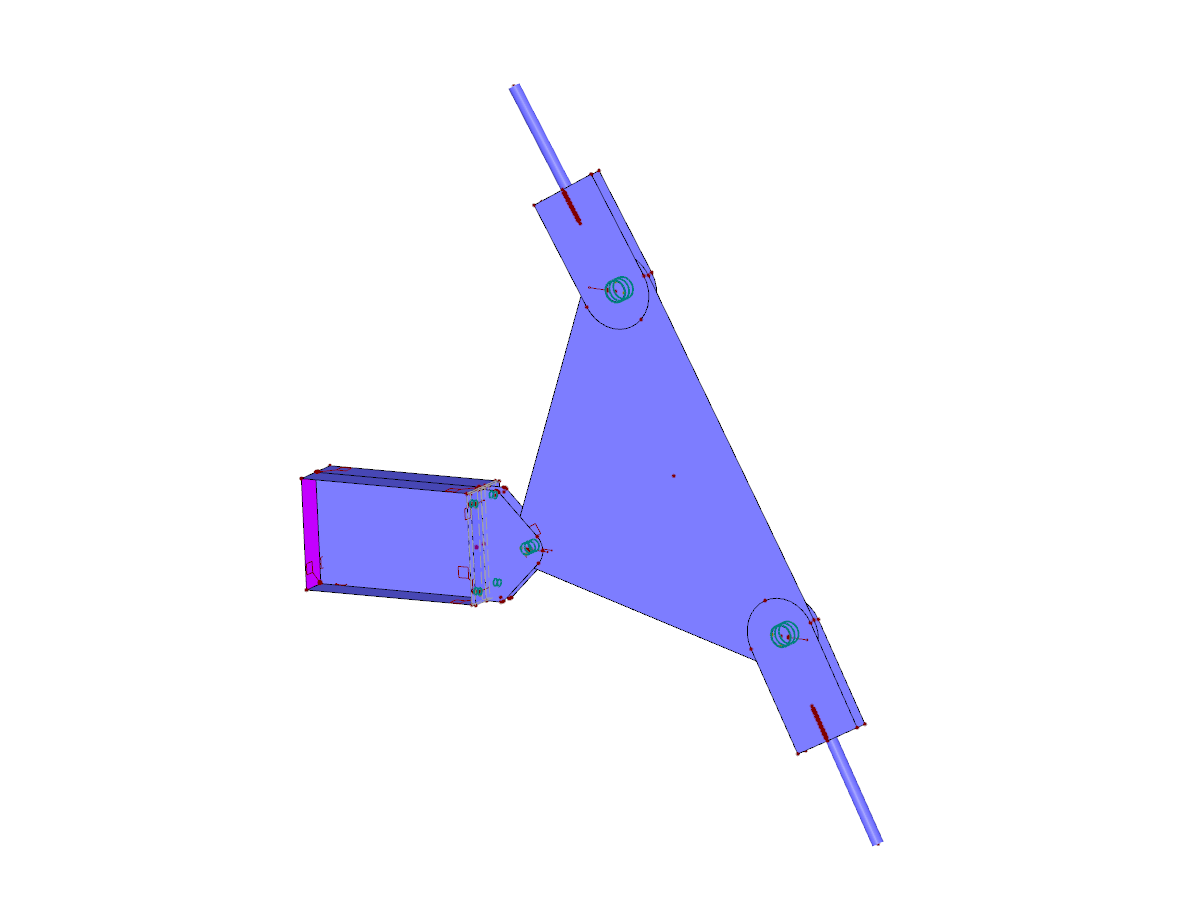

Pivot Connecting Rod with Tie Rod Joint
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 158 |
| Number of Lines | 126 |
| Number of Members | 12 |
| Number of Surfaces | 58 |
| Number of Solids | 4 |
| Total Weight | 0.176 tons |
| Dimensions (Metric) | 1.698 x 0.150 x 1.905 m |
| Dimensions (Imperial) | 5.57 x 0.49 x 6.25 feet |
| Program Version | 5.22.03 |
