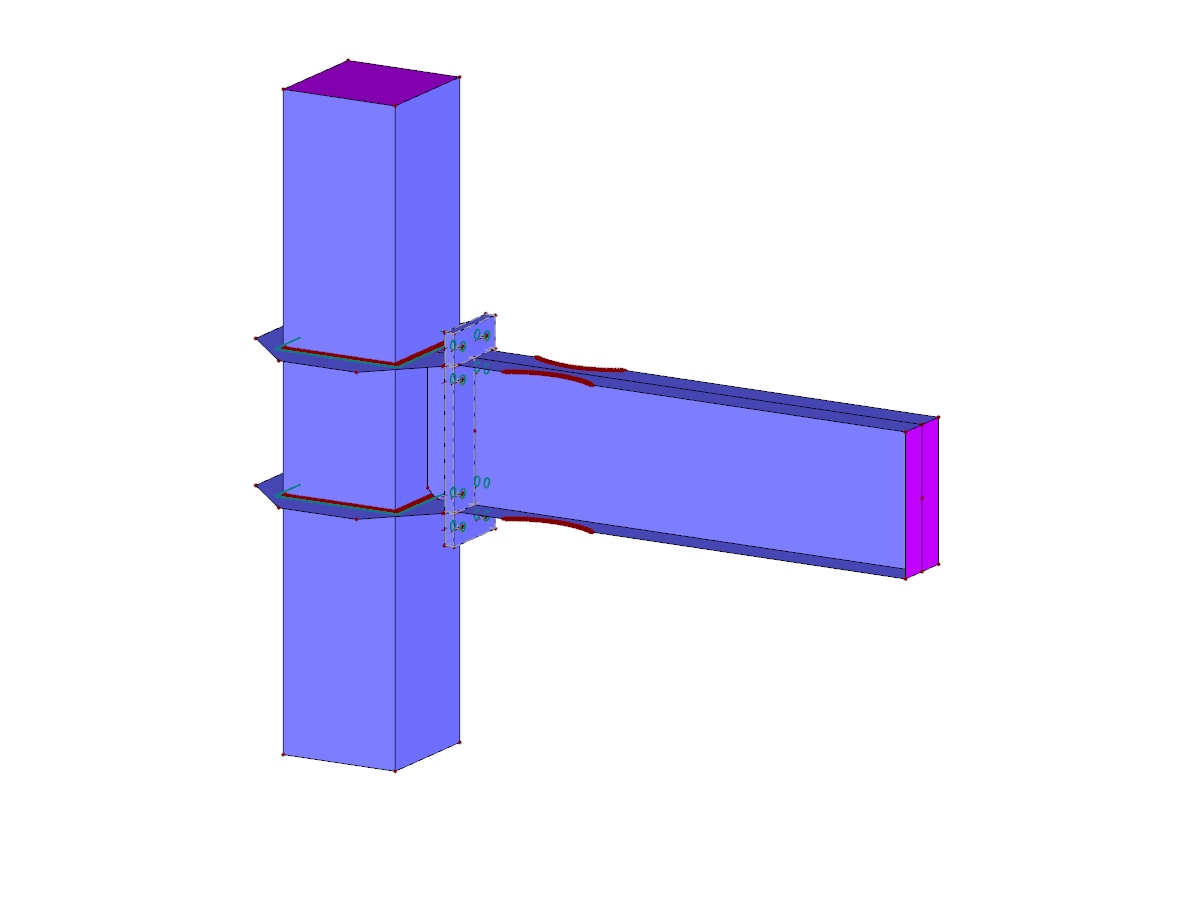

Dog-Bone Type of Moment Connection with Stiffeners
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 113 |
| Number of Lines | 144 |
| Number of Members | 8 |
| Number of Surfaces | 64 |
| Number of Solids | 4 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.800 tons |
| Dimensions (Metric) | 2.160 x 2.000 x 0.628 m |
| Dimensions (Imperial) | 7.09 x 6.56 x 2.06 feet |
