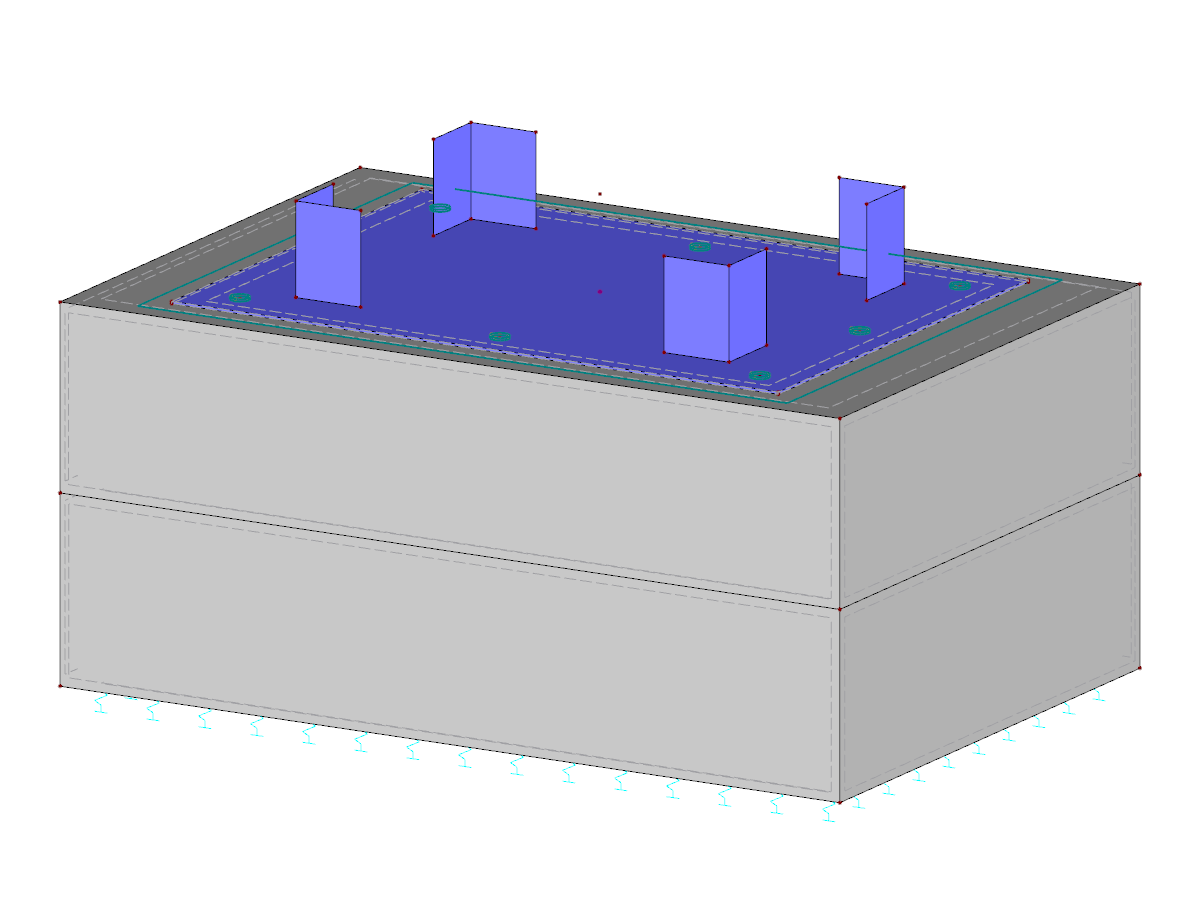

Anchor Plate for 4L-Sections
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 77 |
| Number of Lines | 92 |
| Number of Members | 8 |
| Number of Surfaces | 49 |
| Number of Solids | 3 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.508 tons |
| Dimensions (Metric) | 0.900 x 0.500 x 0.600 m |
| Dimensions (Imperial) | 2.95 x 1.64 x 1.97 feet |
