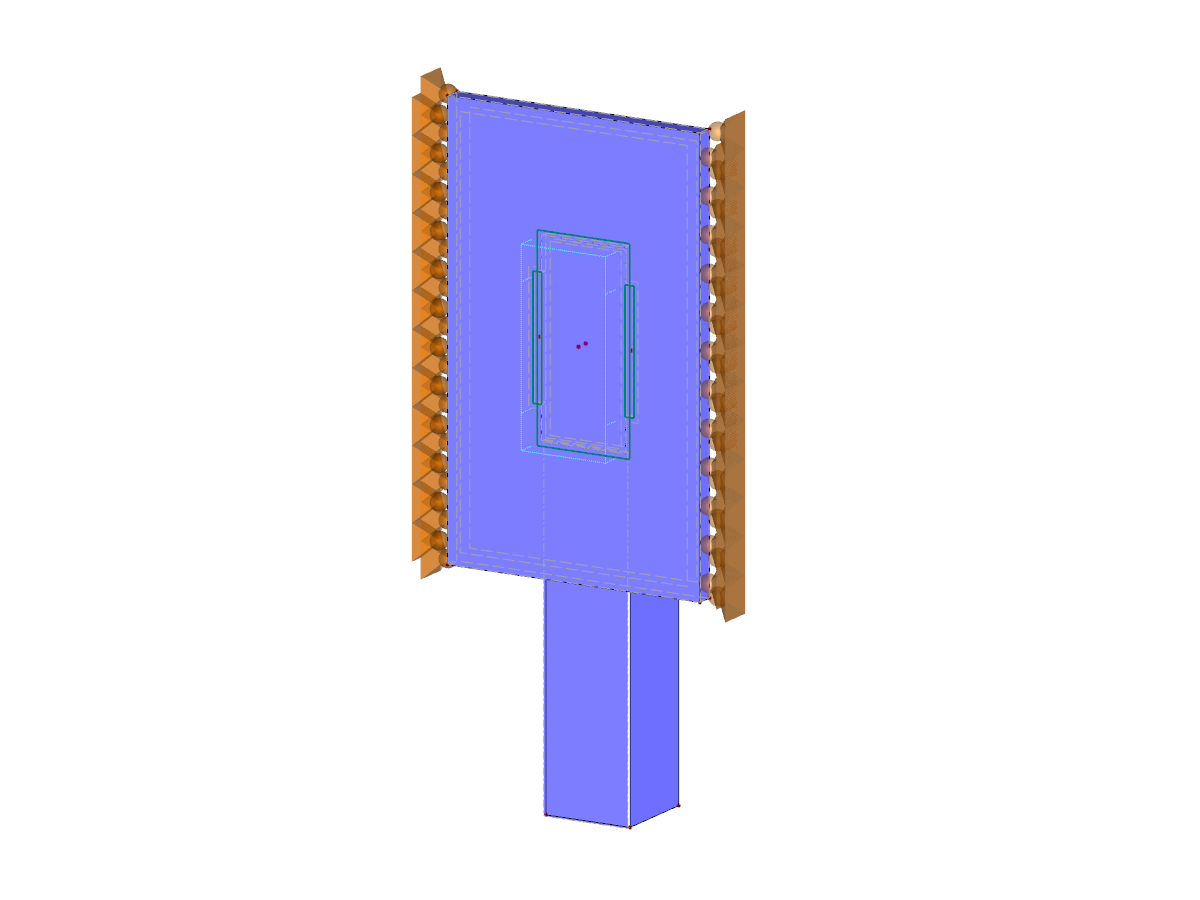

Welded Section Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 37 |
| Number of Lines | 60 |
| Number of Surfaces | 28 |
| Number of Solids | 4 |
| Number of Load Cases | 1 |
| Total Weight | 0.004 tons |
| Dimensions (Metric) | 0.150 x 0.065 x 0.380 m |
| Dimensions (Imperial) | 0.49 x 0.21 x 1.25 feet |
| Program Version | 5.23.02 |
