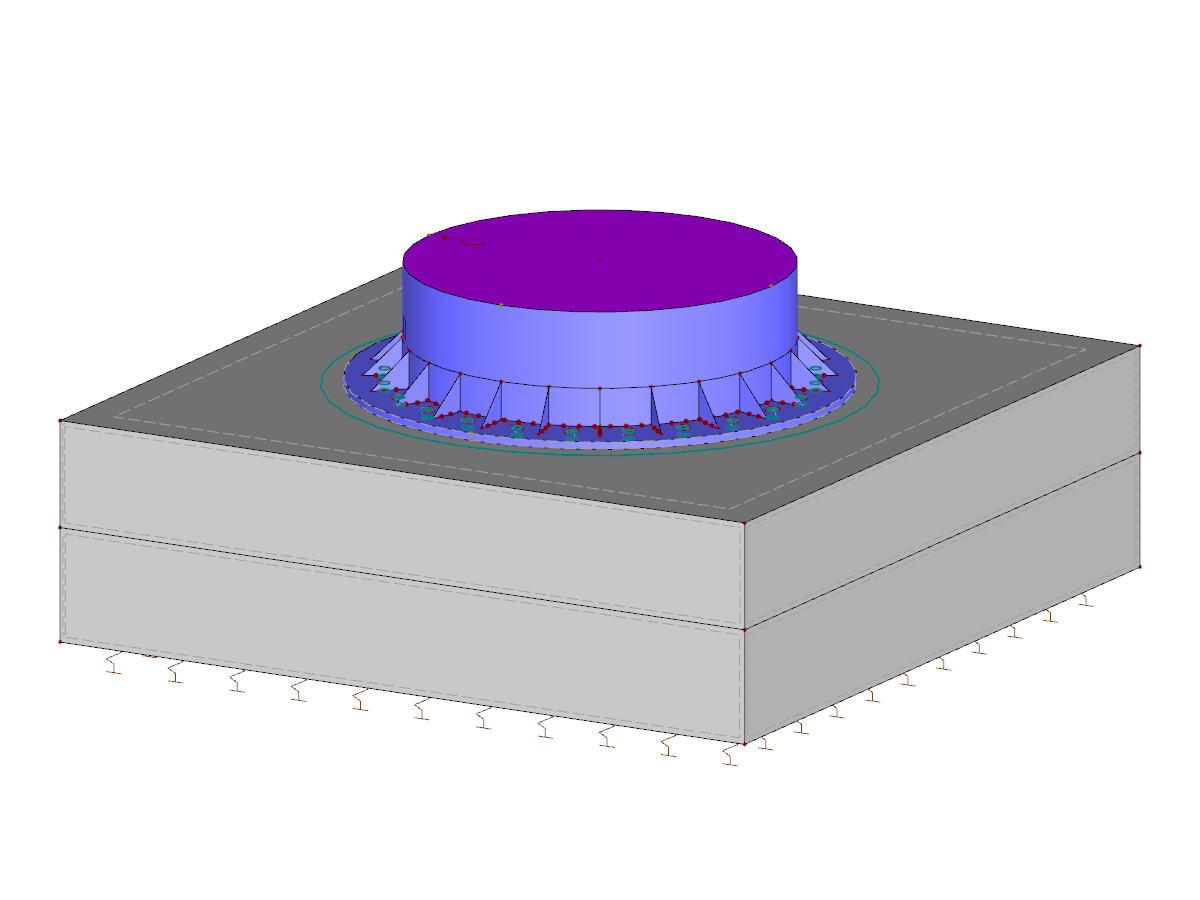

Anchor Plate for Metal Circular Columns
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 257 |
| Number of Lines | 244 |
| Number of Members | 48 |
| Number of Surfaces | 113 |
| Number of Solids | 3 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.676 tons |
| Dimensions (Metric) | 2.000 x 0.900 x 2.000 m |
| Dimensions (Imperial) | 6.56 x 2.95 x 6.56 feet |
