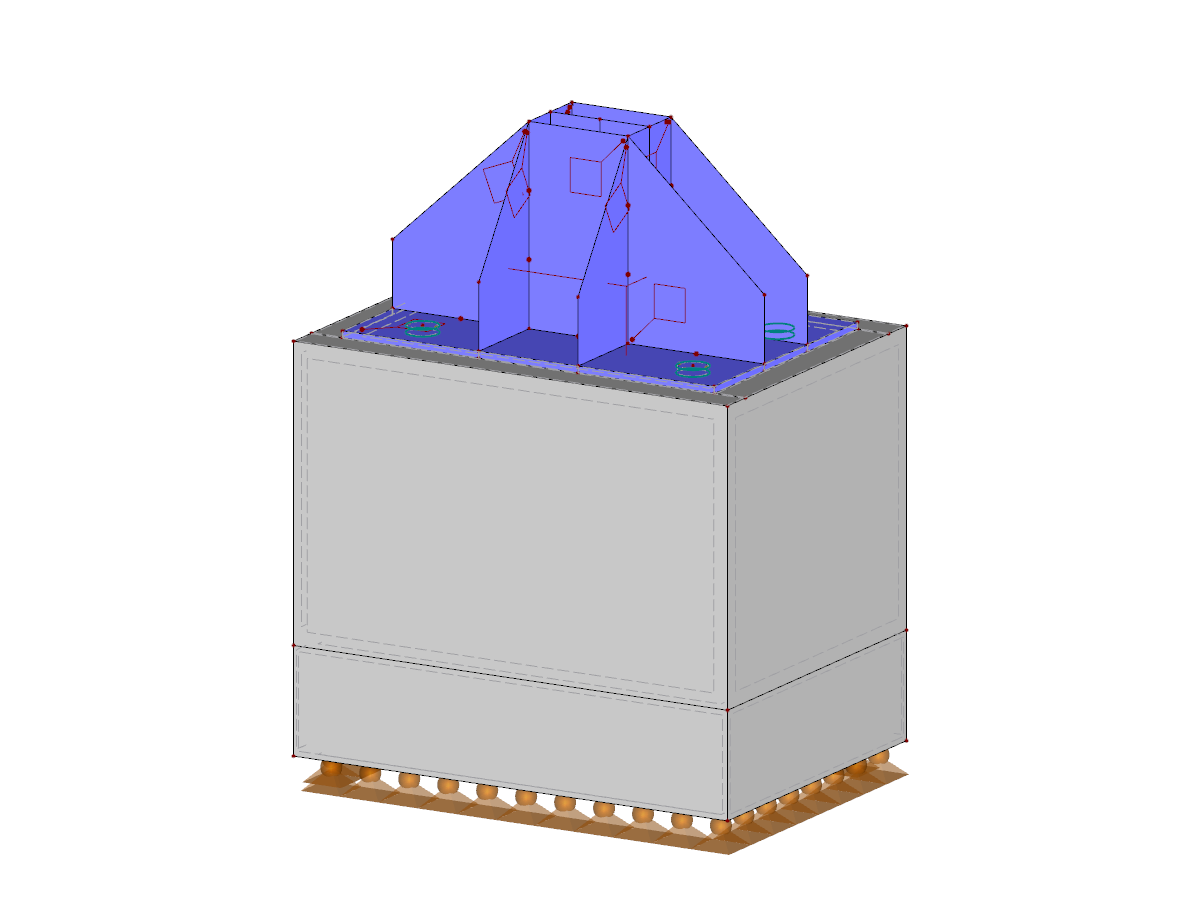

T-Pillar Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 98 |
| Number of Lines | 117 |
| Number of Members | 4 |
| Number of Surfaces | 53 |
| Number of Solids | 3 |
| Total Weight | 0.563 tons |
| Dimensions (Metric) | 0.700 x 0.500 x 0.910 m |
| Dimensions (Imperial) | 2.3 x 1.64 x 2.99 feet |
| Program Version | 5.24.01 |
